Diagnostic Trouble Code Descriptions

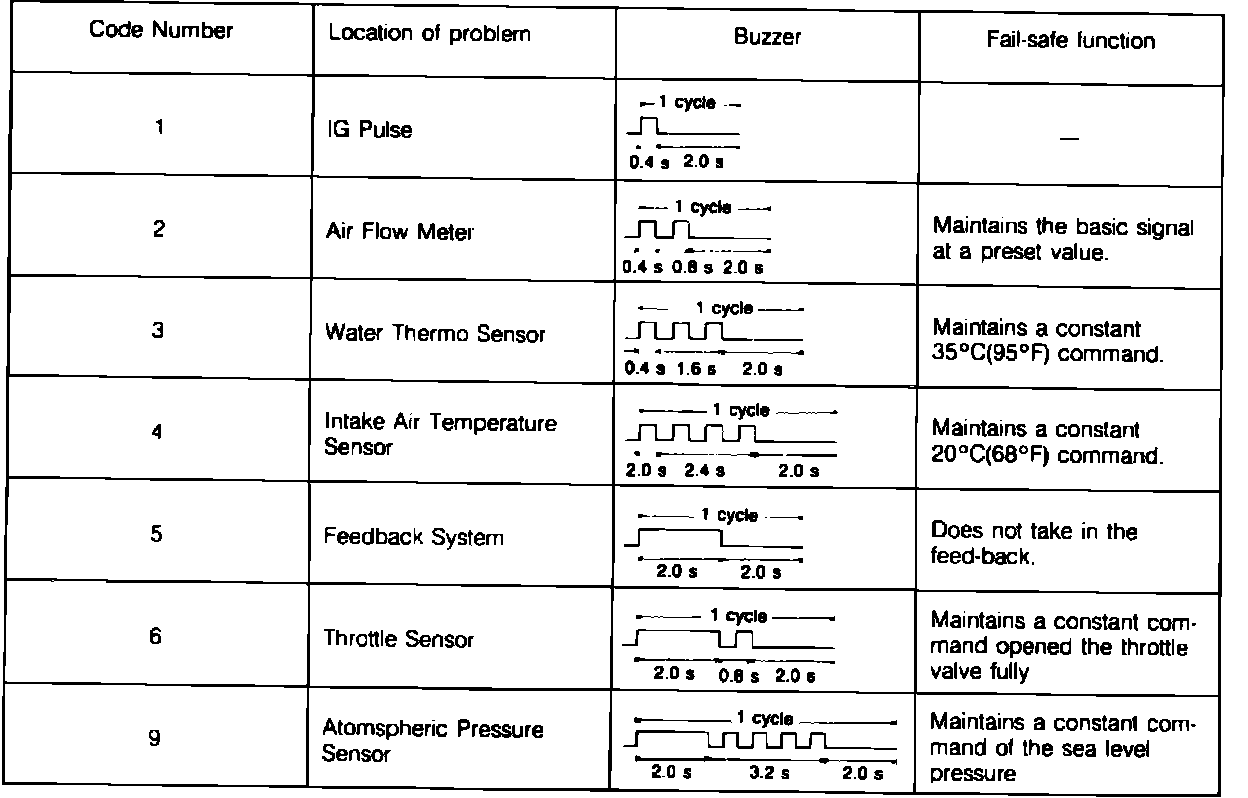

Fig. 8 Trouble code chart. Non-turbocharged models:

A digital code checker, 49 B018 9A0, is used to detect problems in the sensors or sensor circuits of the EGI system. A fault is indicated by a code number, Fig. 8, and a buzzer.
