Second-Row Center Seat Belt Removal/Installation

SECOND-ROW CENTER SEAT BELT REMOVAL/INSTALLATION

CAUTION:
- The ELR (emergency locking retractor) has a spring that will unwind if the retractor cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.

1. Turn the ignition switch to the LOCK position.

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. A-pillar trim A-Pillar Trim Removal/Installation

b. Front scuff plate inner Front Scuff Plate Removal/Installation

c. Rear scuff plate inner Rear Scuff Plate Removal/Installation

d. Front seat belt lower anchor installation bolt Front Seat Belt Removal/Installation

e. B-pillar lower trim B-Pillar Lower Trim Removal/Installation

f. Front seat belt upper anchor installation bolt Front Seat Belt Removal/Installation

g. B-pillar upper trim B-Pillar Upper Trim Removal/Installation

h. Trunk box

i. Seat side box Seat Side Box Removal/Installation

j. Trunk end trim Service and Repair

k. Third-row seat Rear - Third-Row Seat Removal/Installation

l. Third-row seat belt lower anchor installation bolt Third-Row Seat Belt Removal/Installation

m. Trunk side trim (See )

n. Roof side trim Roof Side Trim Removal/Installation

o. Second-row seat belt upper anchor installation bolt Second-Row Seat Belt Removal/Installation

p. C-pillar trim C-Pillar Trim Removal/Installation

q. Third-row seat belt upper anchor installation bolt Third-Row Seat Belt Removal/Installation

r. D-pillar trim D-Pillar Trim Removal/Installation

s. Front map light Front Map Light Removal/Installation

t. Sunvisor Service and Repair

u. Assist handle Service and Repair

v. RES unit cover (Vehicles with RES) RES Unit Removal/Installation

w. Headliner Service and Repair

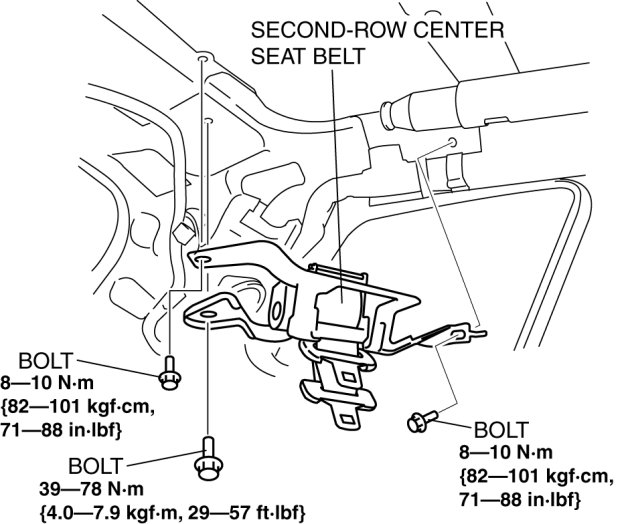

4. Remove the bolt.






5. Remove the second-row center seat belt.

6. Install in the reverse order of removal.
