Removal

WIPER / WASHER: RELAY (w/ Headlight Cleaner System): REMOVAL


1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. REMOVE FRONT FENDER MUDGUARD LH Removal

3. REMOVE HEIGHT CONTROL PROTECTOR PIPE Removal

4. REMOVE SIDE STEP ASSEMBLY Removal

5. REMOVE FRONT FENDER LINER LH Removal

6. DRAIN WASHER FLUID Removal

7. REMOVE WASHER INLET SUB-ASSEMBLY Removal

8. REMOVE WINDSHIELD WASHER JAR ASSEMBLY Removal

9. REMOVE HEADLIGHT CLEANER CONTROL RELAY
(a) Disconnect the connector.






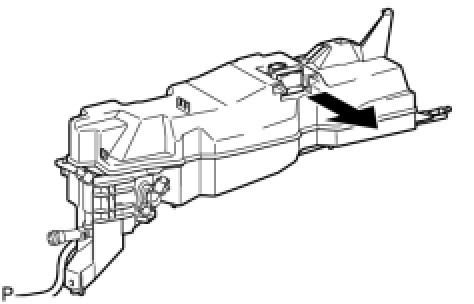

(b) Remove the headlight cleaner control relay in the direction shown in the illustration.
