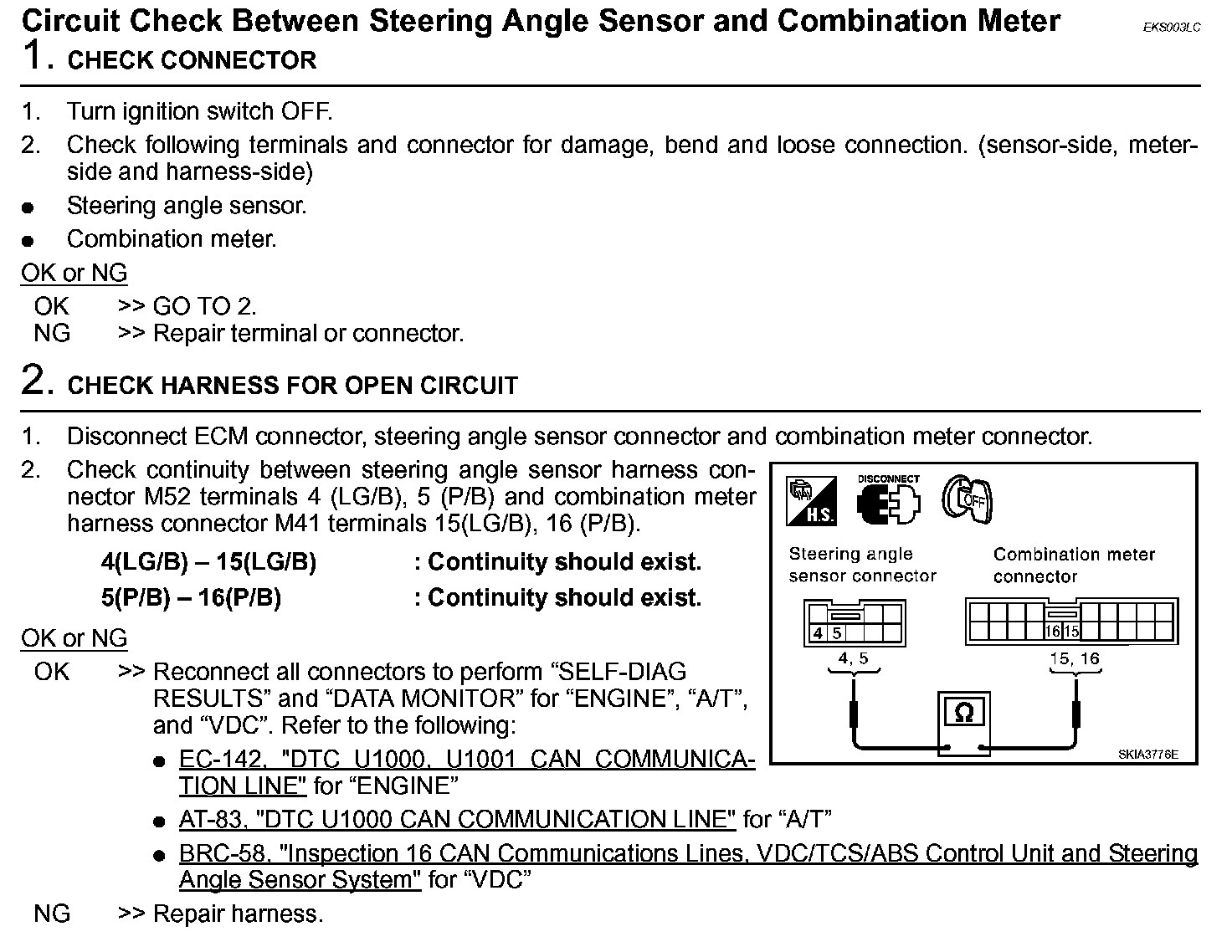

Circuit Check Between Steering Angle Sensor and Combination Meter

Circuit Check Between Steering Angle Sensor And Combination Meter:
