Front Door Window Regulator: Service and Repair

Window Regulator Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Remove the door glass. Refer to Window Replacement - Front Door Service and Repair in Stationary Windows.
3. Disconnect the electrical connector.

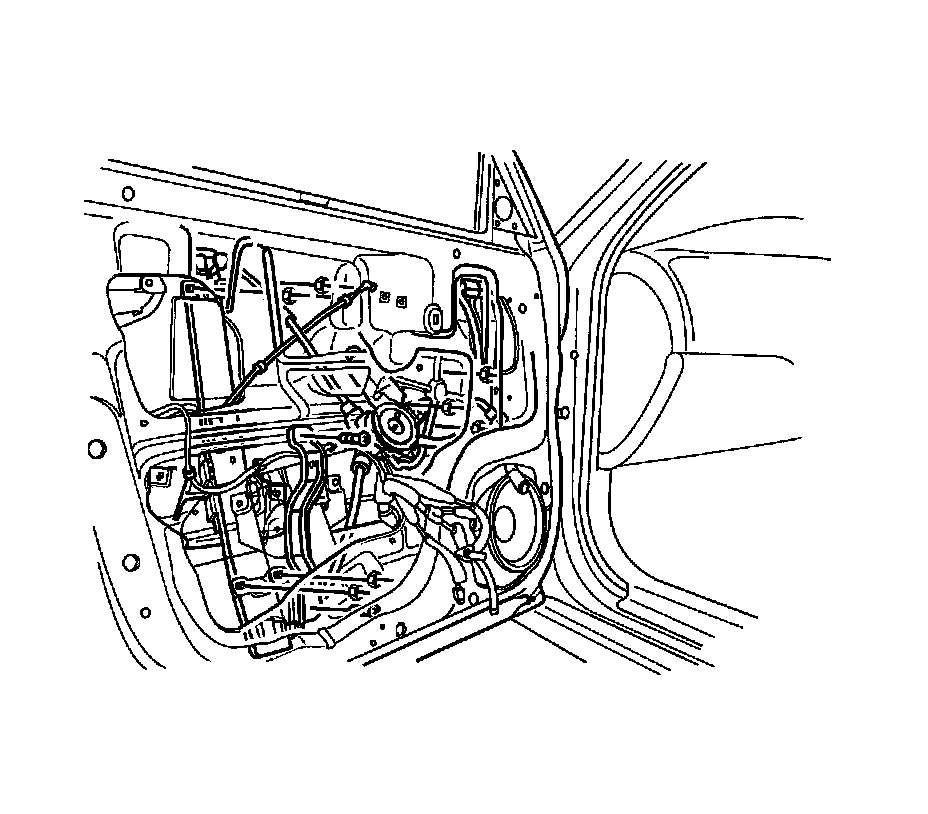

4. Remove the nuts and the window regulator.

Installation Procedure





Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the window regulator with the nuts.

Tighten the window regulator nuts to 10 Nm (89 lb in).

2. Connect the electrical connector.
3. Install the door glass. Refer to Window Replacement - Front Door Service and Repair in Stationary Windows.
4. Connect the negative battery cable.
