Control Module Overview
Control Module Overview
Control Module Overview

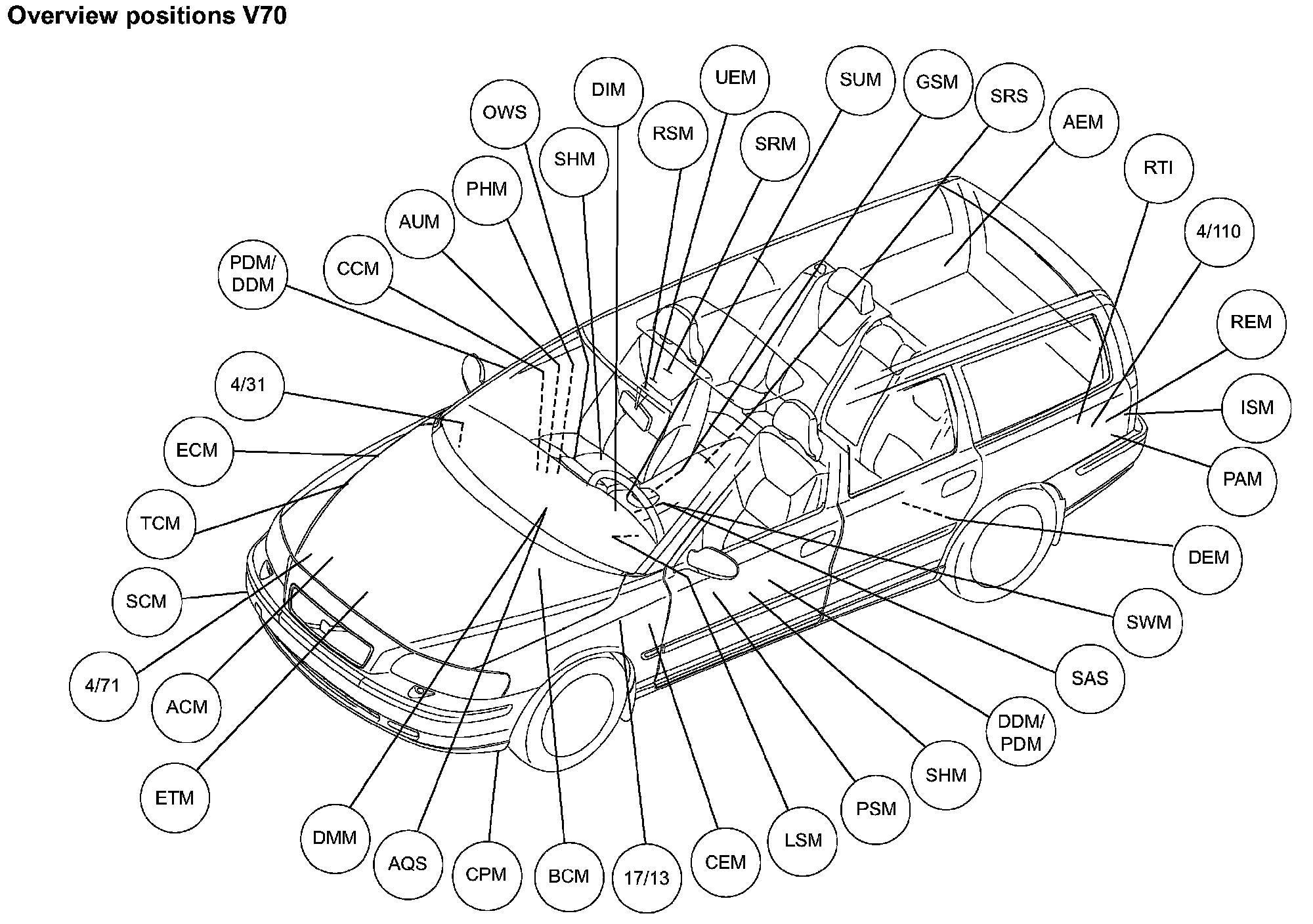

Overview Positions:

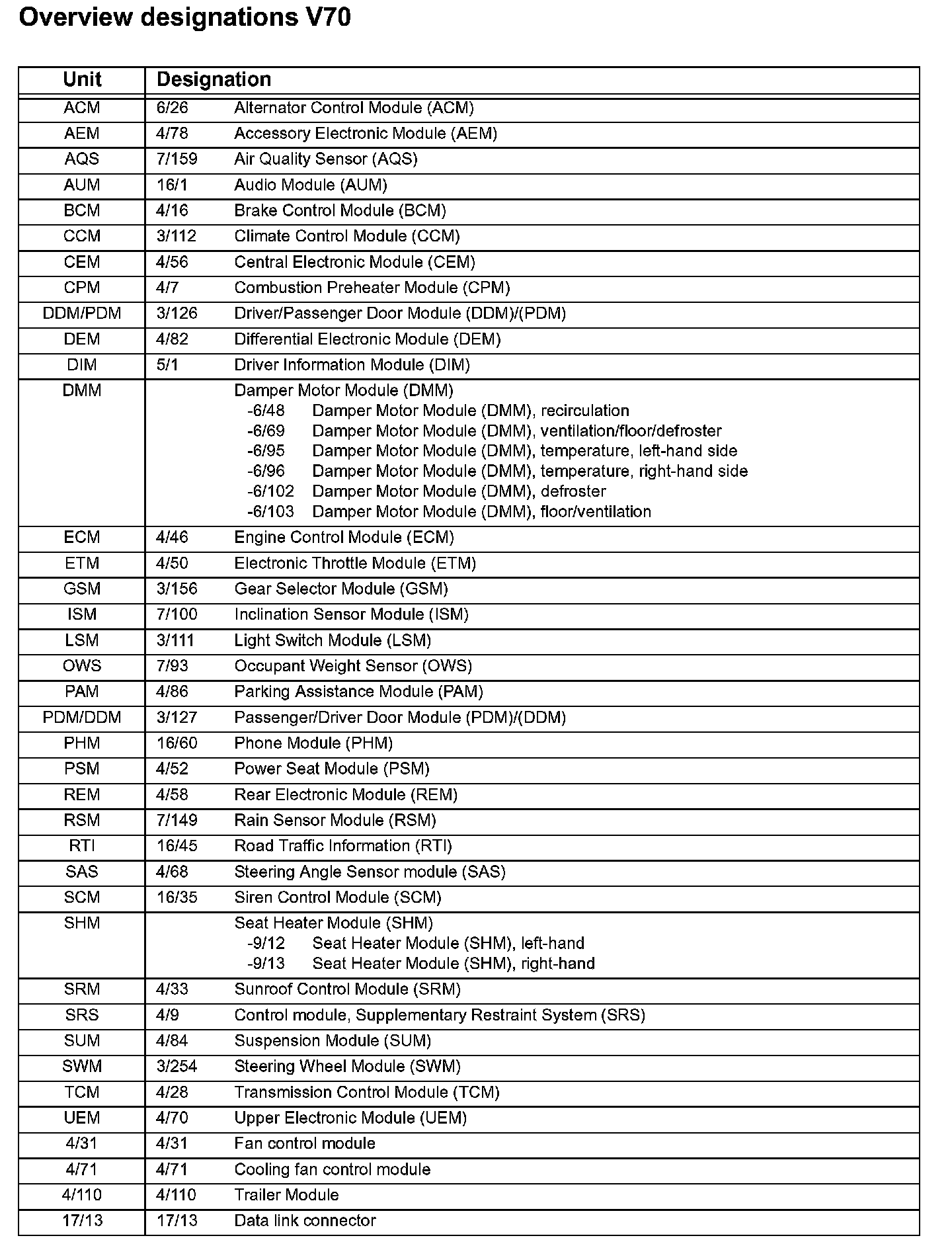

Overview Designations:
