Rear Electronic Module

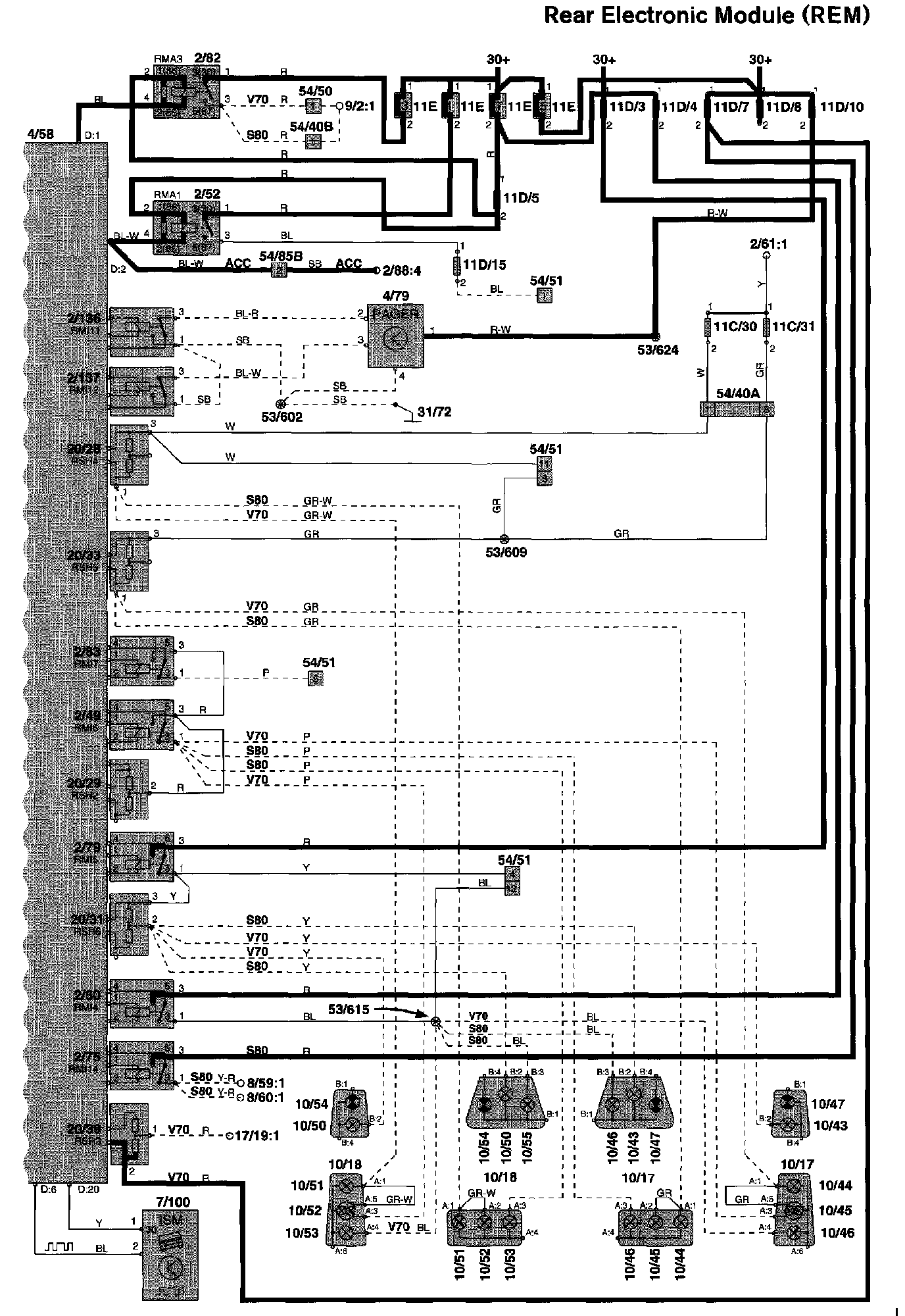

Rear Electronic Module - Part 1:

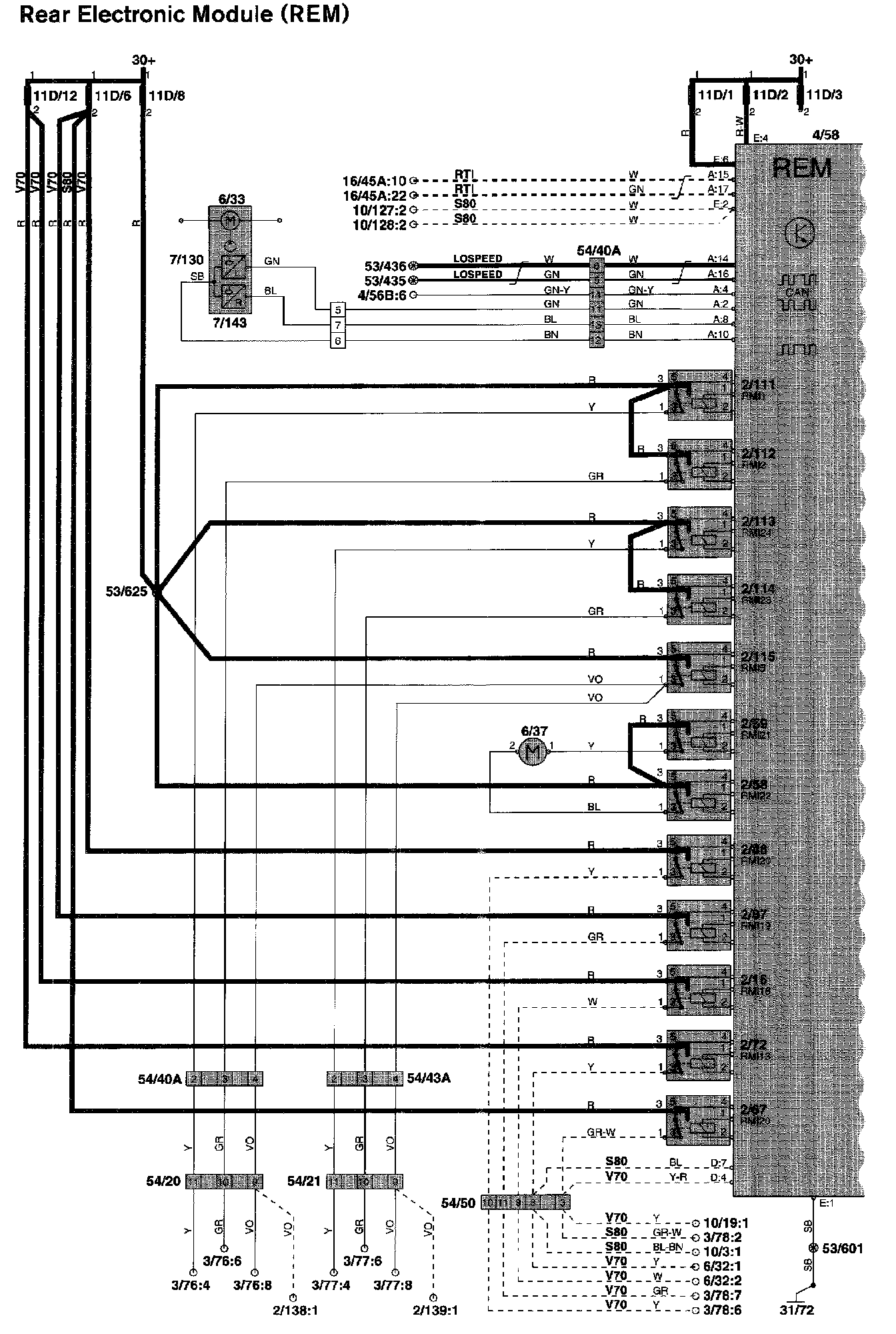

Rear Electronic Module - Part 2:






Diagram Legend Diagram Legend
