Charging

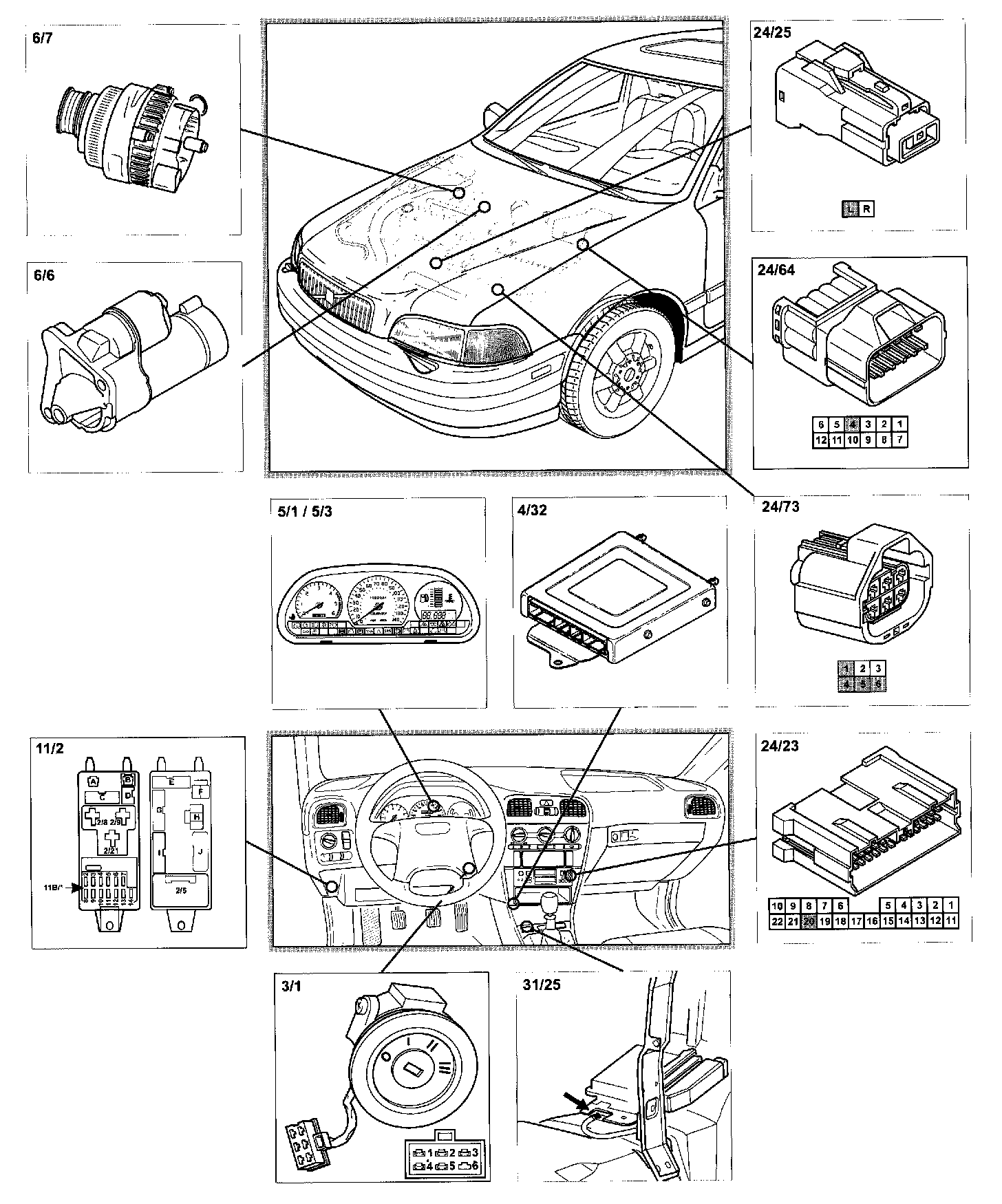

Charging Circuit, Component Locations:
Component Locations

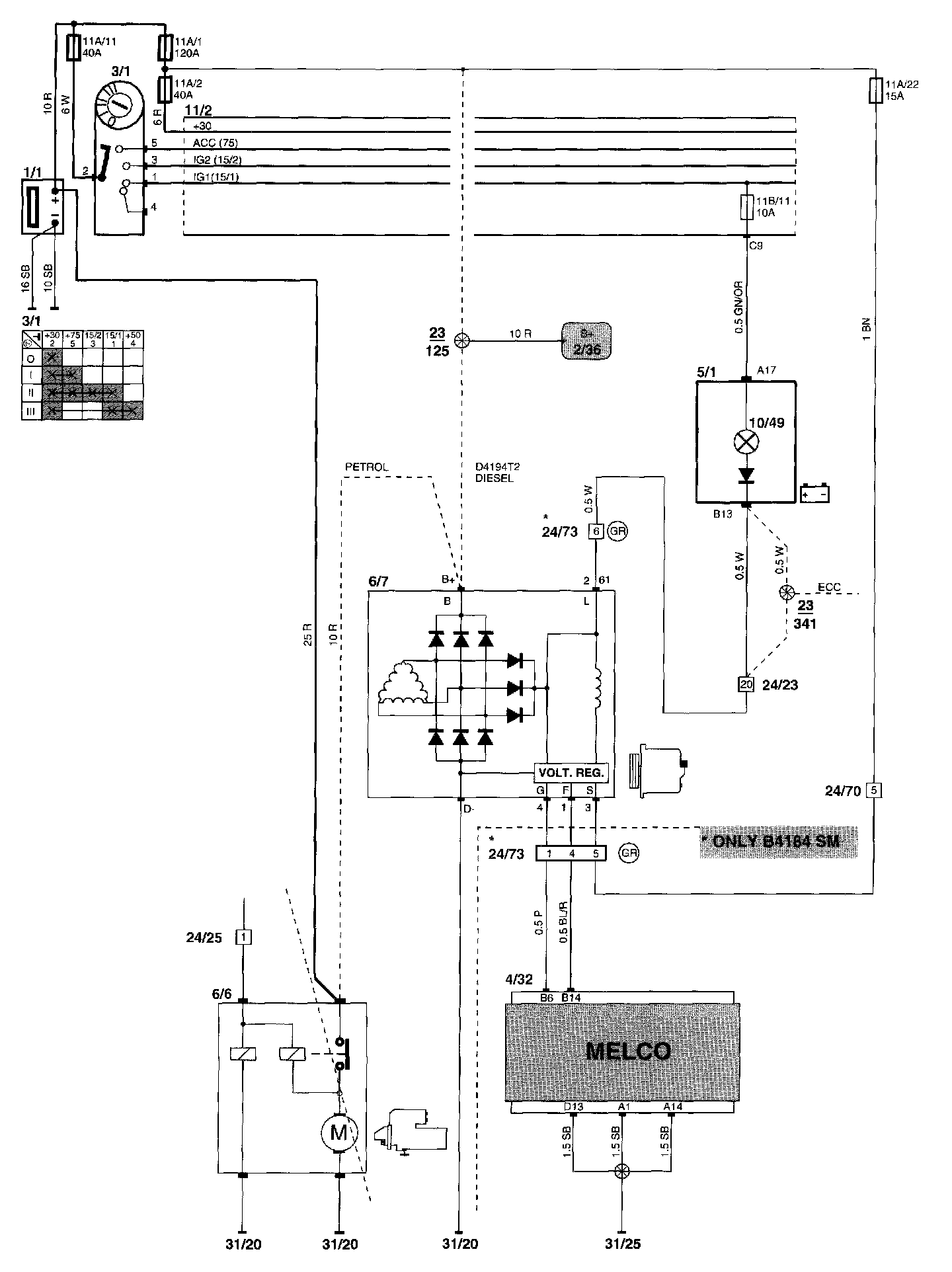

Charging Circuit, Wiring Diagram:
Wiring Diagrams
Diagram Legend can be found at "Vehicle : Diagrams : Diagram Information and Instructions : Component List." List of Components By Component Number
