Home
>>
Volvo
>>
2000
>>
C70 L5-2.4L Turbo VIN 56 B5244T
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Specifications
>>

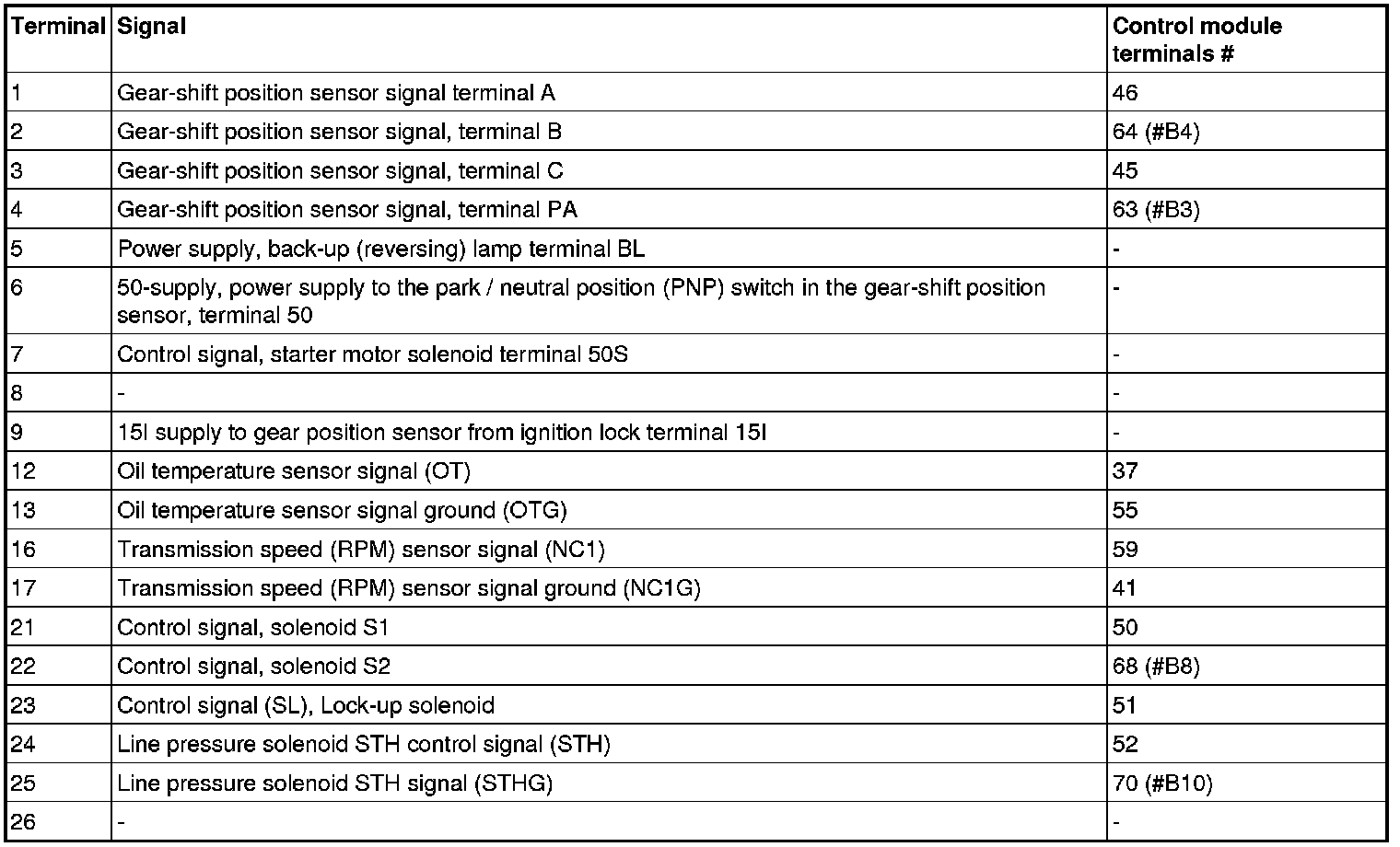

Connector, Transmission
Connector, Transmission

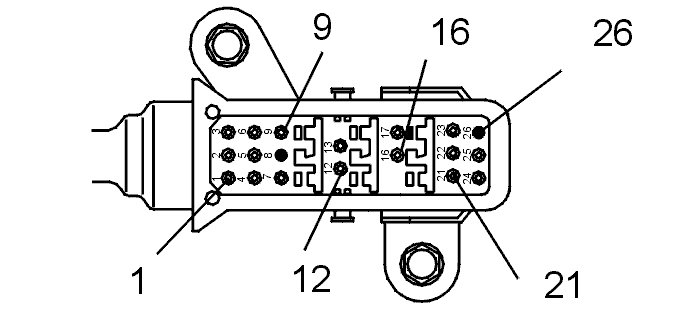

Connector, transmission
4-way, 26-pin connector
