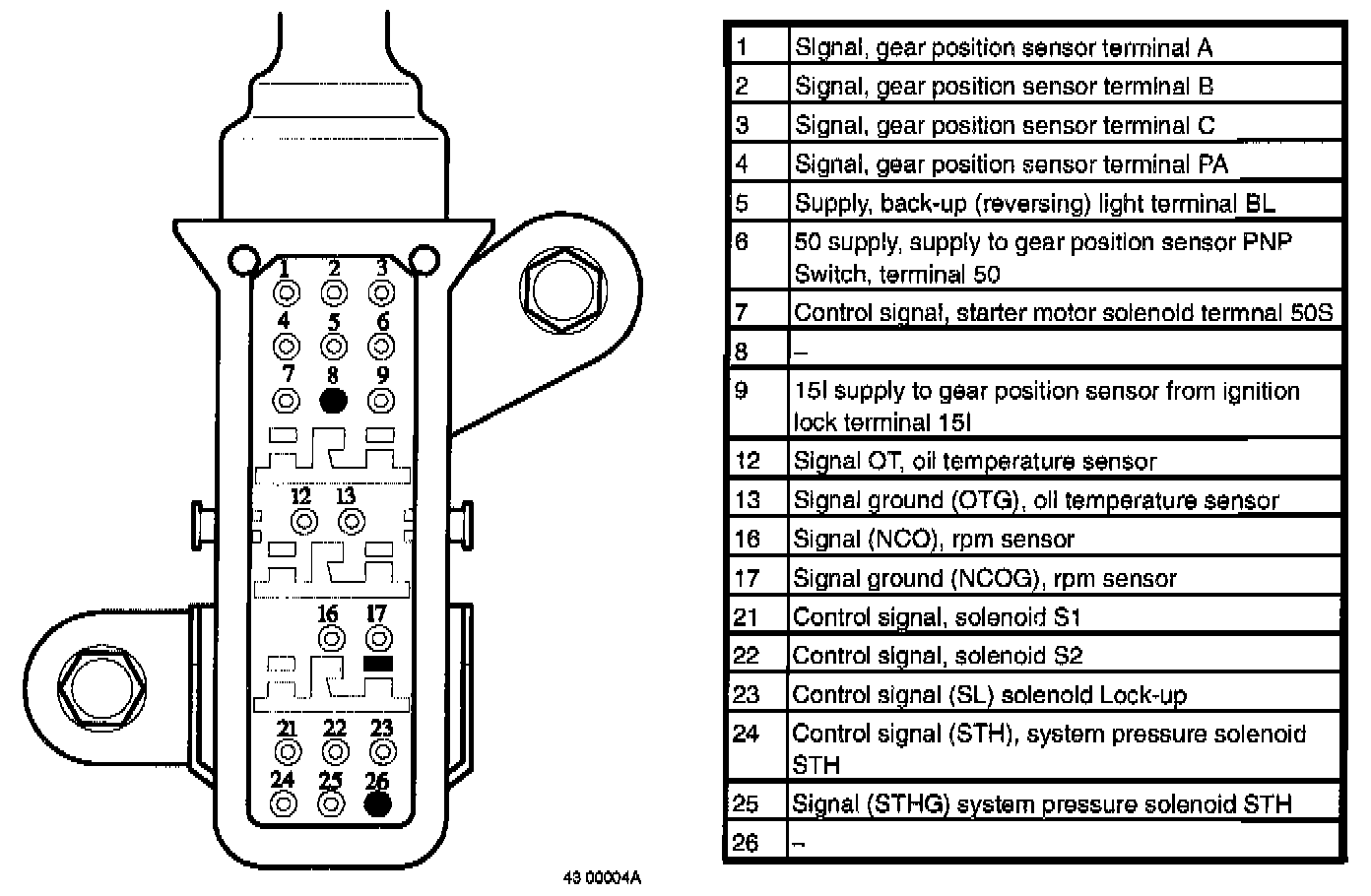

GE. Transmission Connector View
GE. Transmission Connector View
GE. Connector, transmission
4-part 26-pin connector
