Diagram Information and Instructions
>>
Ground Locations
>>
Ground Connections
Ground Connections
Engine Compartment / Wheel Housing / Centre Console / Right Support:

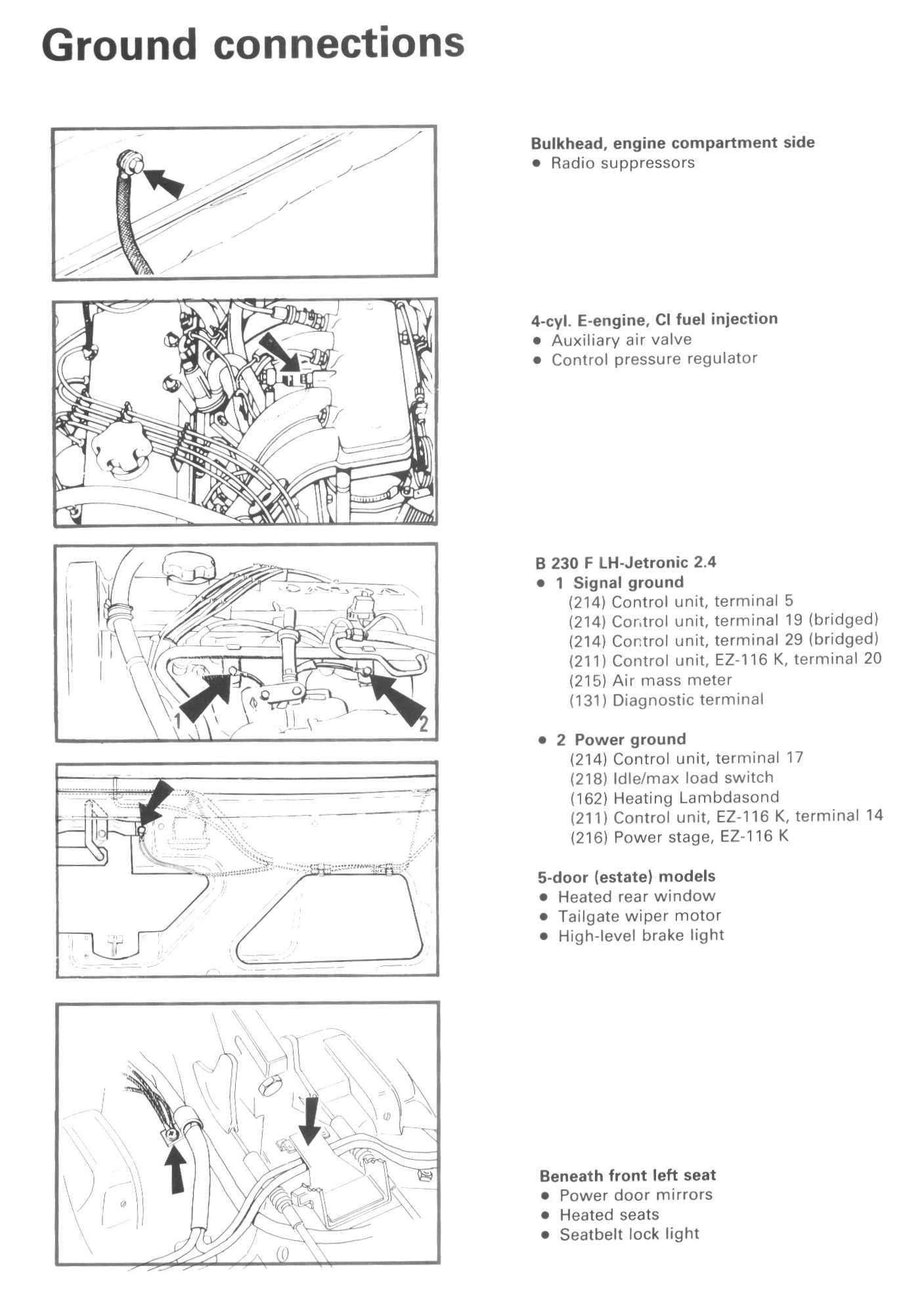

Bulkhead / 4-cyl E-engine, CI Injection / B230 F Injection /:

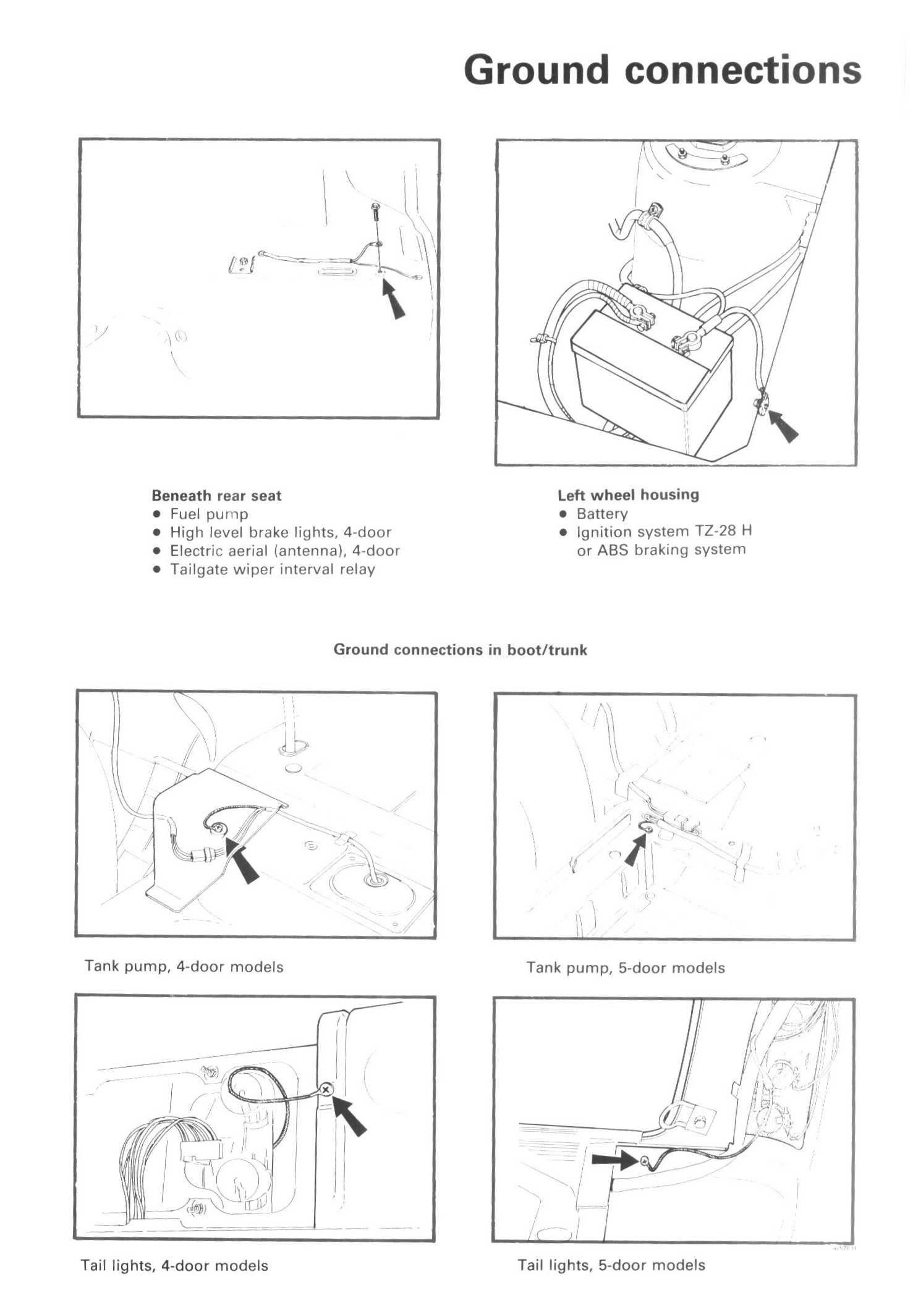

Rear Seat / Left Wheel Housing / Trunk:
