Rex Ignition System

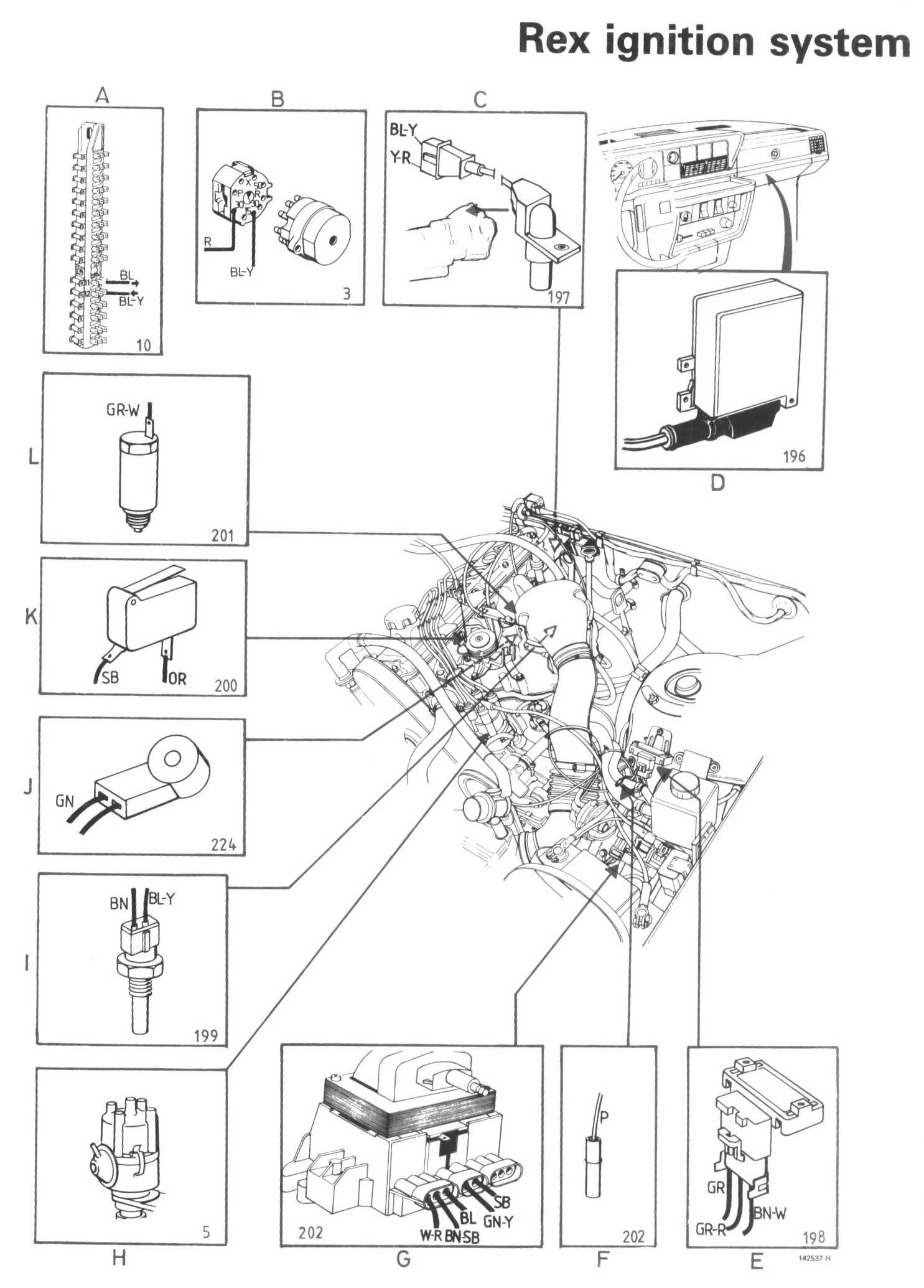

Component / Connector Views:

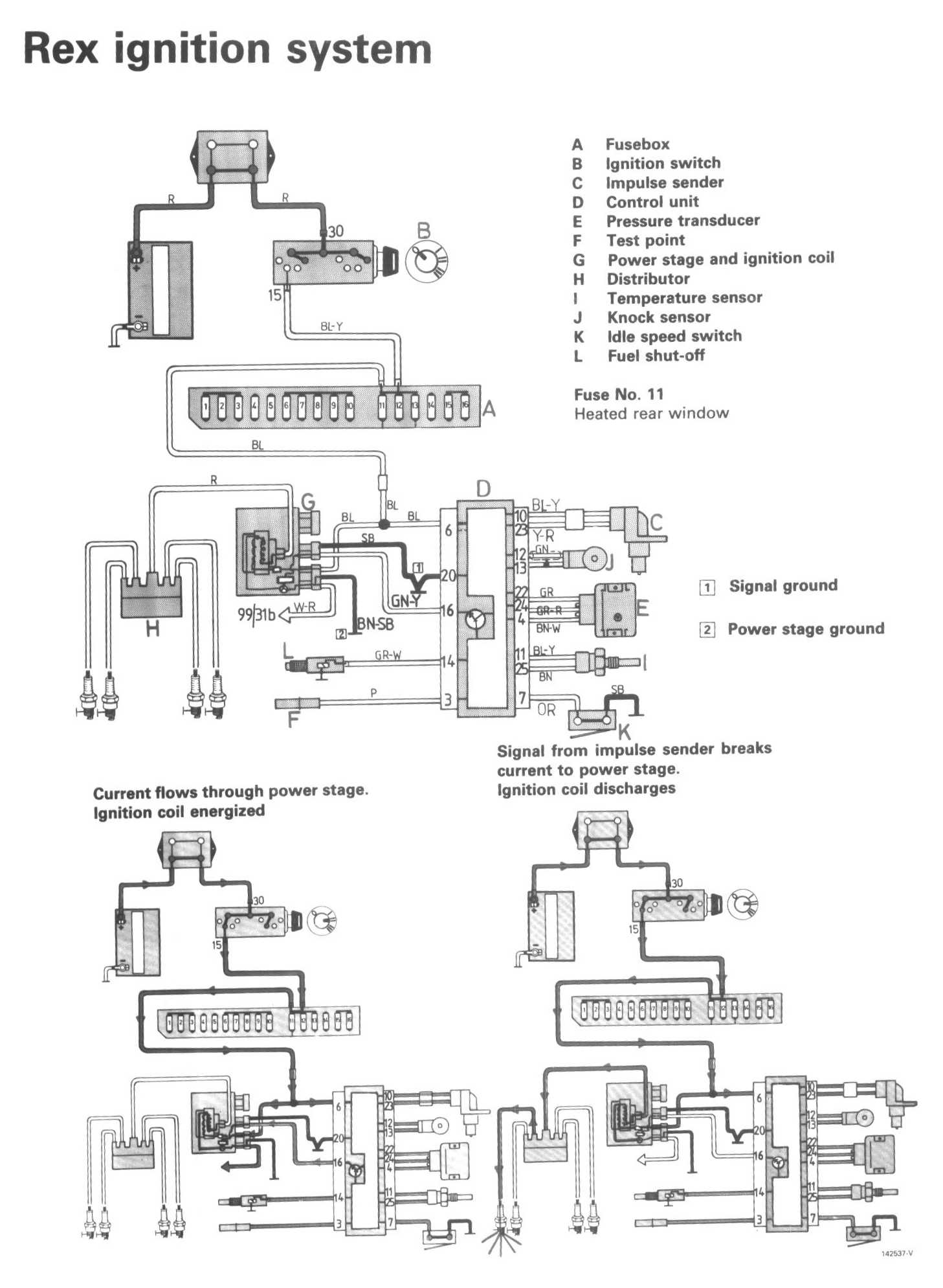

Wiring Diagrams:

LEGEND
A Fusebox
B Ignition switch
C Impulse sender
D Control Unit
E Pressure transducer
F Test point
G Power stage and ignition coil
H Distributor
I Temperature sensor
J Knock sensor
K Idle speed switch
L Fuel shutoff
