Fuel Injection System
>>
CIS Fuel Injection System
>>
Without O2 Sensor
Without O2 Sensor

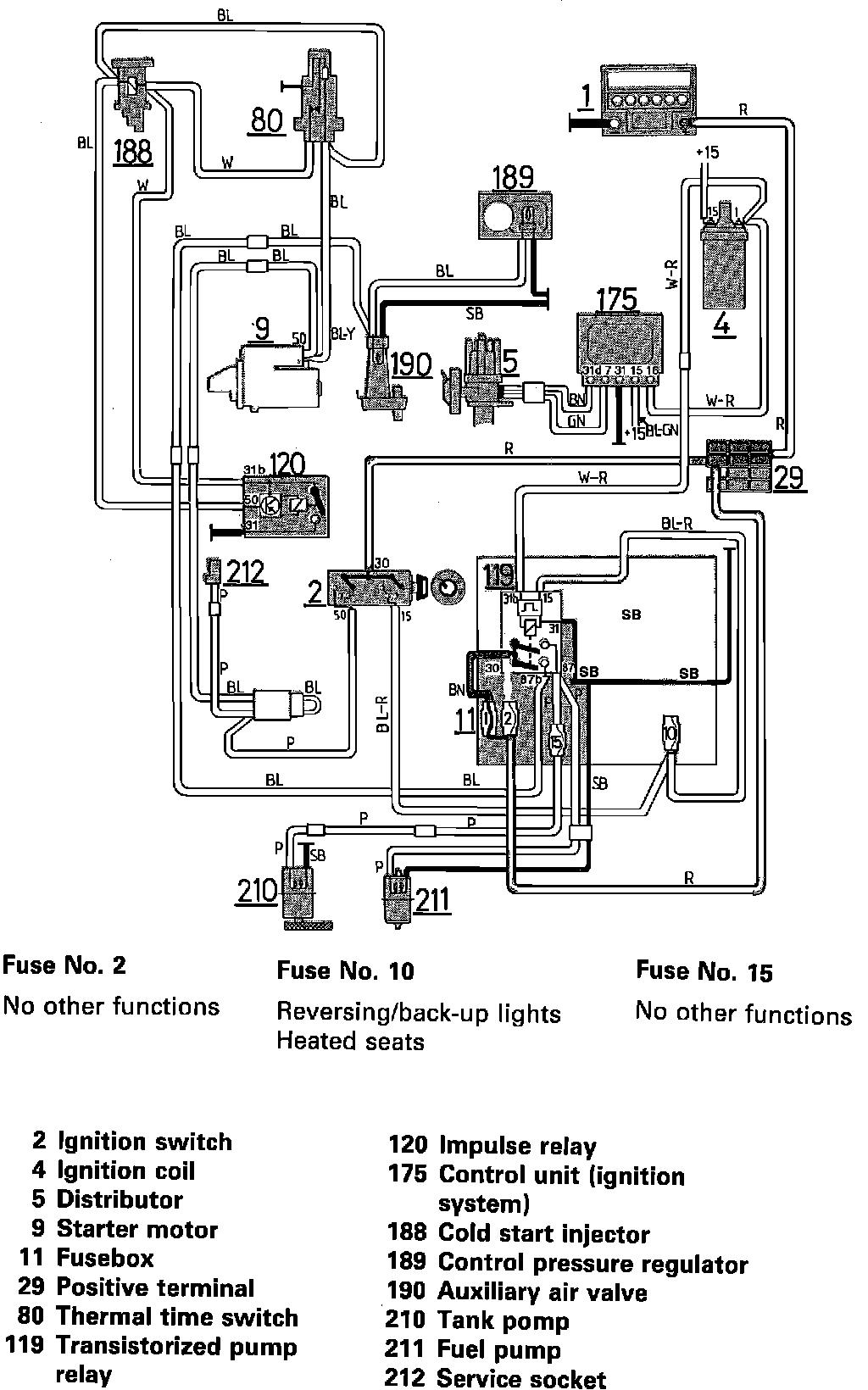

Fig. 106 Fuel Injection System:
