Cylinder Block Assembly: Service and Repair

Engine Block Heater

Removing

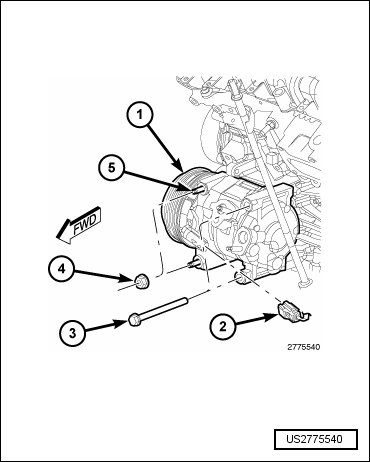

- Remove the A/C compressor (1) and position aside.







The heater block is located on the driver side towards the front of the engine.

- Partially drain coolant from radiator and cylinder block. Refer to => [ Cooling System Draining and Filling ] Cooling System Draining and Filling.

- Disconnect the power cord plug from block heater.

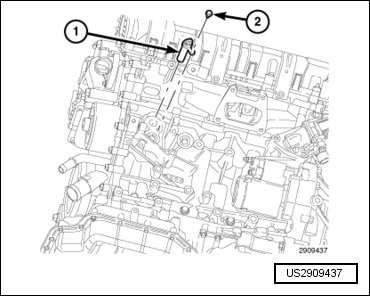

- Loosen screw (1) from the heater. Remove block heater assembly (3).

Installing






- Clean block core hole and heater seat.

- Insert heater block (3) assembly.

- With block heater seated, tighten bolt to 12 Nm (106 in.lbs.) to assure a positive seal.

- Install power cord plug to block heater (3).

- Fill cooling system with coolant to the proper level. Refer to => [ Cooling System Draining and Filling ] Cooling System Draining and Filling.







- Install the A/C compressor.
