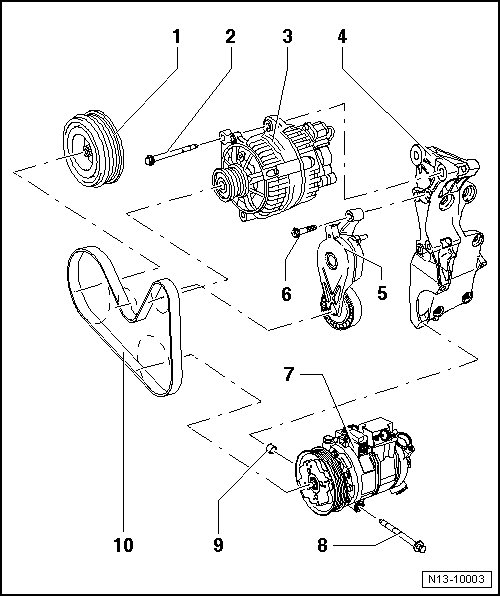

Ribbed Drive Belt Assembly Overview

Ribbed Drive Belt Assembly Overview





1 Vibration damper

• Only possible to install in one position - Bores are offset

2 25 Nm

3 Generator

4 Bracket

• For generator and A/C compressor

5 Tensioner

• To release tension on ribbed belt, pivot using an open-end wrench

6 25 Nm

7 Air conditioner compressor

8 25 Nm

9 Fitting sleeves

10 Ribbed belt

• Mark direction of rotation before removing

• Check for wear

• Do not kink

• Removing and installing => [ Ribbed Drive Belt ] Ribbed Drive Belt.
