Home
>>
Volkswagen Truck
>>
1987
>>
Vanagon Syncro AWD L4-2109cc 2.1L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Exploded Views
Exploded Views

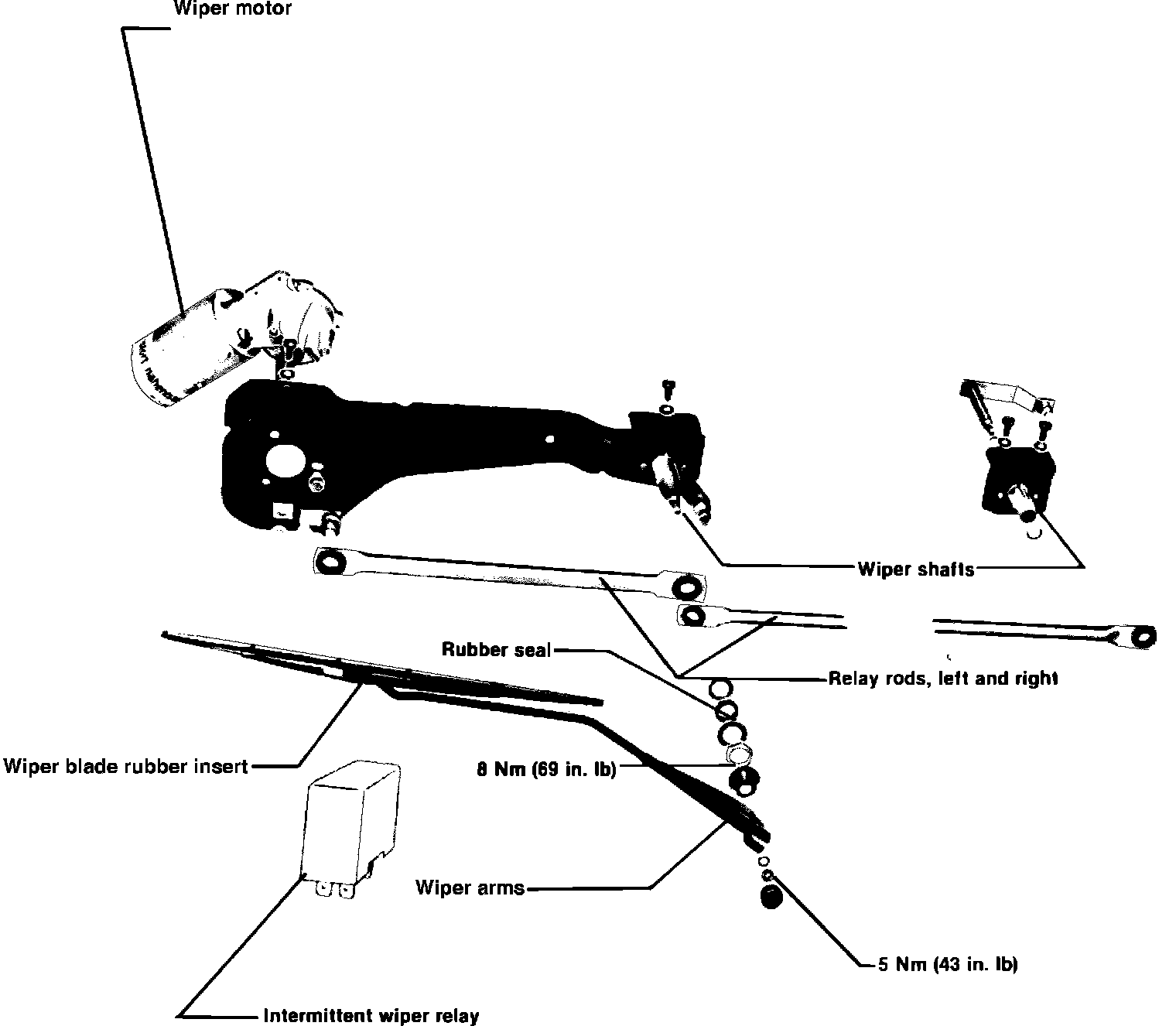

Fig. 2 Wiper motor & transmission assembly:
