Control Unit and Wiring, Checking

Checking Control Unit And Wiring





- Switch ignition ON

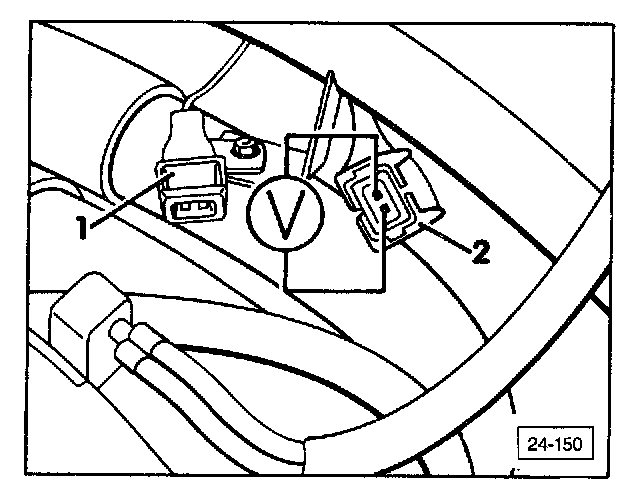

- Using multimeter US 1119, check voltage present across terminals of connector 2
Must be approximately 5 volts

If voltage reading NOT OK
- Check for open circuit in wiring according to current flow diagram

If wiring OK
- Replace control unit
