Technical Data/Specifications

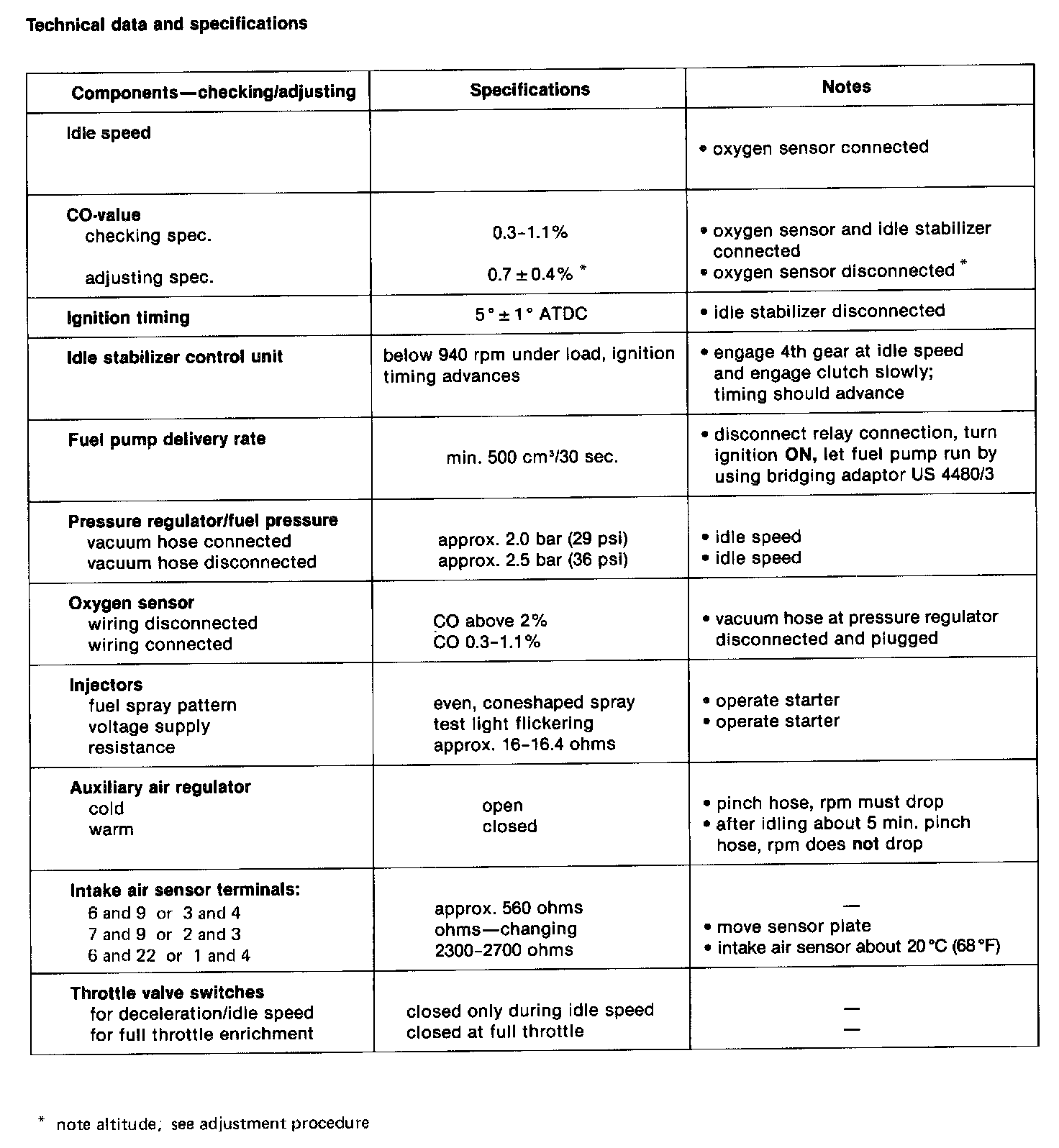

Component Checking And Adjusting Specifications:

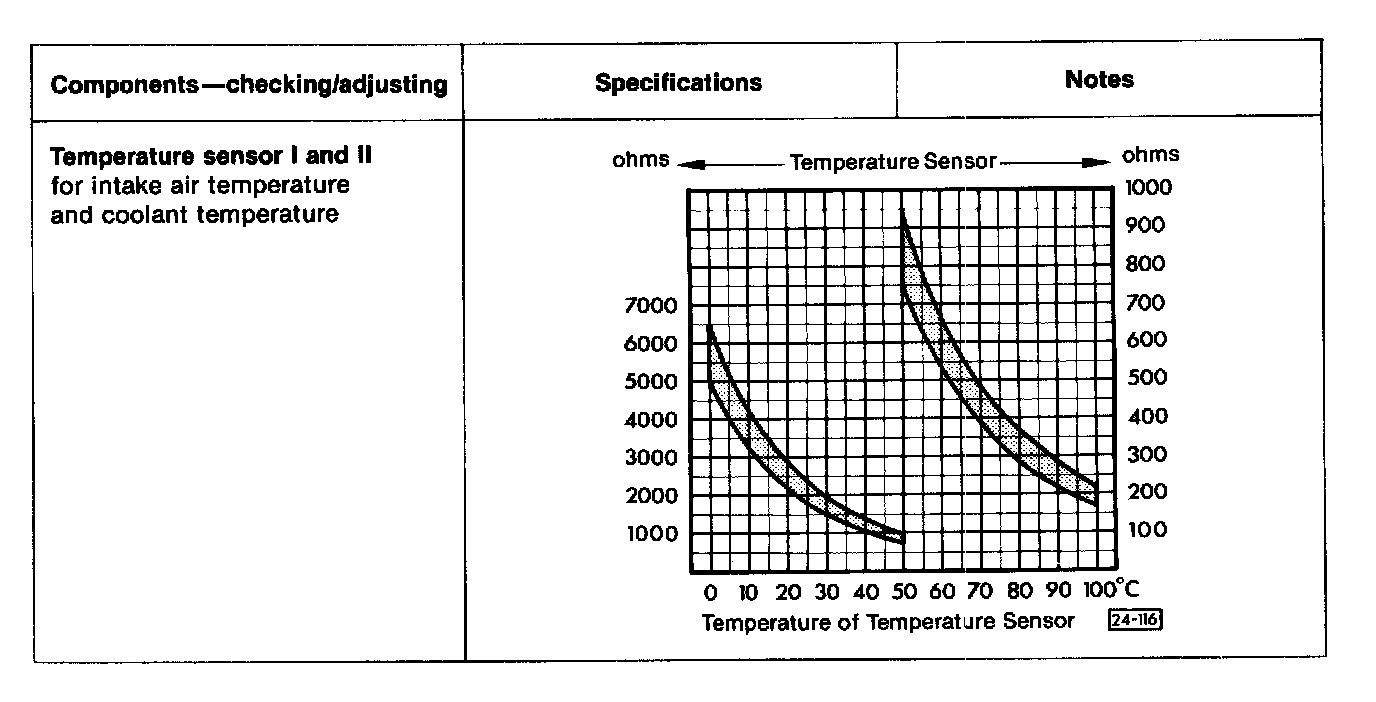

Resistance Specifications For Temperature Sensors I And II:

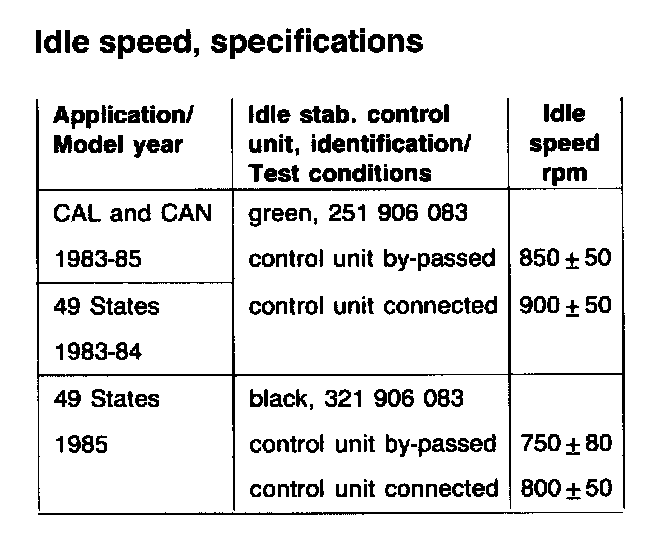

Idle Speed Specifications:

Note: Replacing digital idle stabilization control unit can lower idle speed rpm. When replacing control unit, always recheck idle speed and adjust as necessary.
