Full Throttle Enrichment Switch, Checking

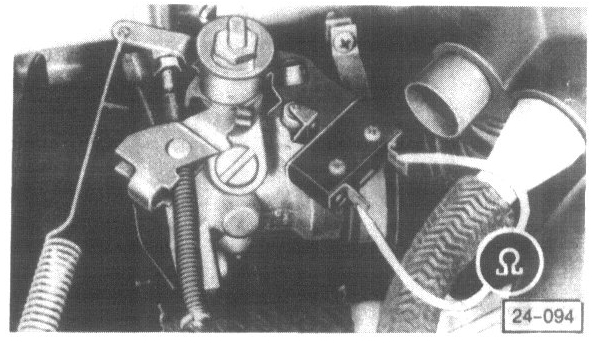

Checking Full Throttle Switch

Work sequence






- "Zero" ohmmeter and connect to contacts on switch
with throttle valve closed, ohmmeter must read infinite ohms

- Open throttle valve slowly
just before reaching stop, ohmmeter must read 0 ohms

If NO, switch must be adjusted or replaced
