Full Throttle Enrichment Switch, Adjusting

Adjusting Full Throttle Switch

Work Sequence





- Depress accelerator pedal fully and hold in position
- Check that throttle is fully open, adjust cable if necessary
- Loosen switch and move it until ohmmeter changes from infinite ohms to 0 ohms

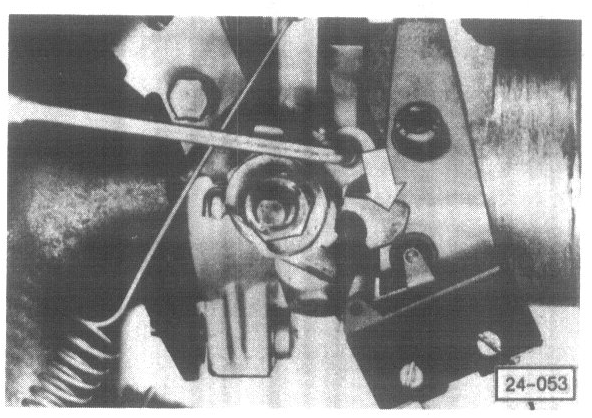

Roller should be in center of curved lever (arrow)

- Tighten switch
