System Diagram

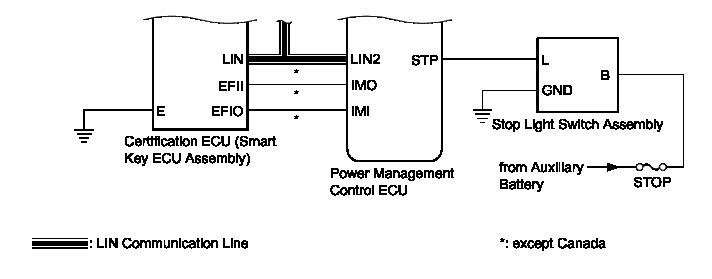

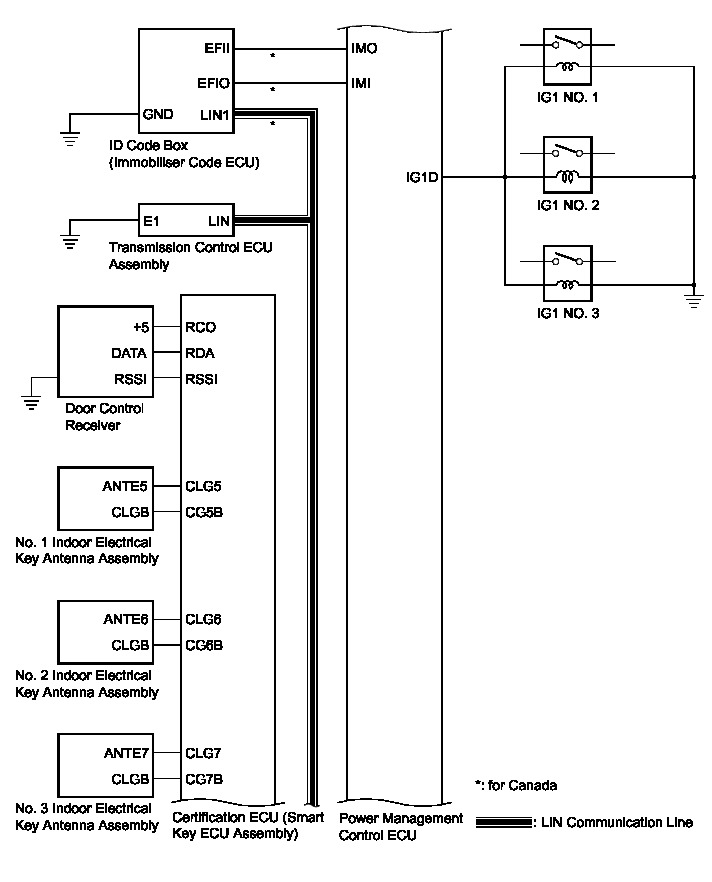

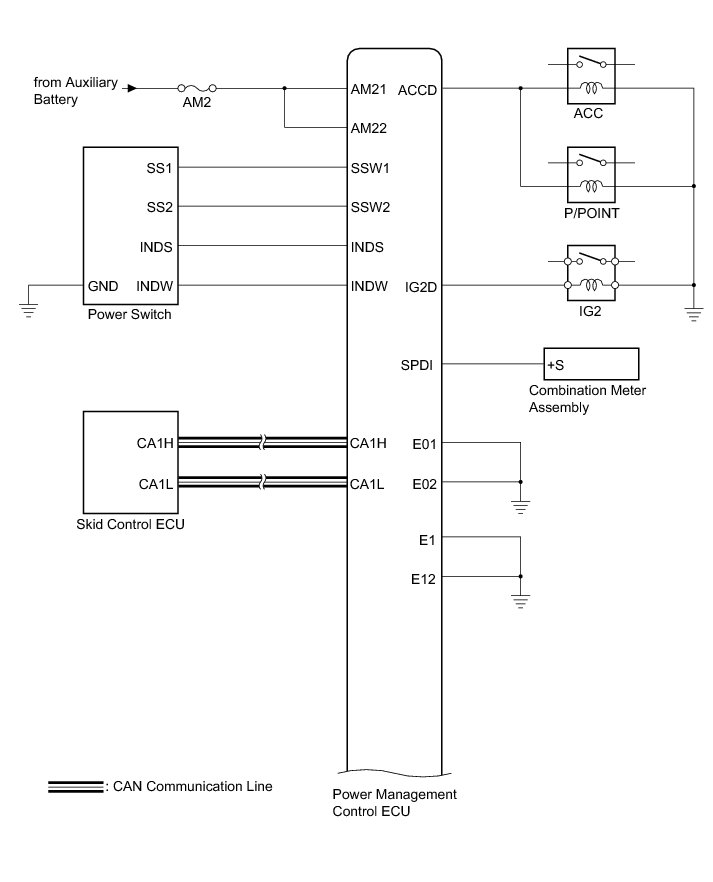

THEFT DETERRENT / KEYLESS ENTRY: PUSH-BUTTON START: SYSTEM DIAGRAM

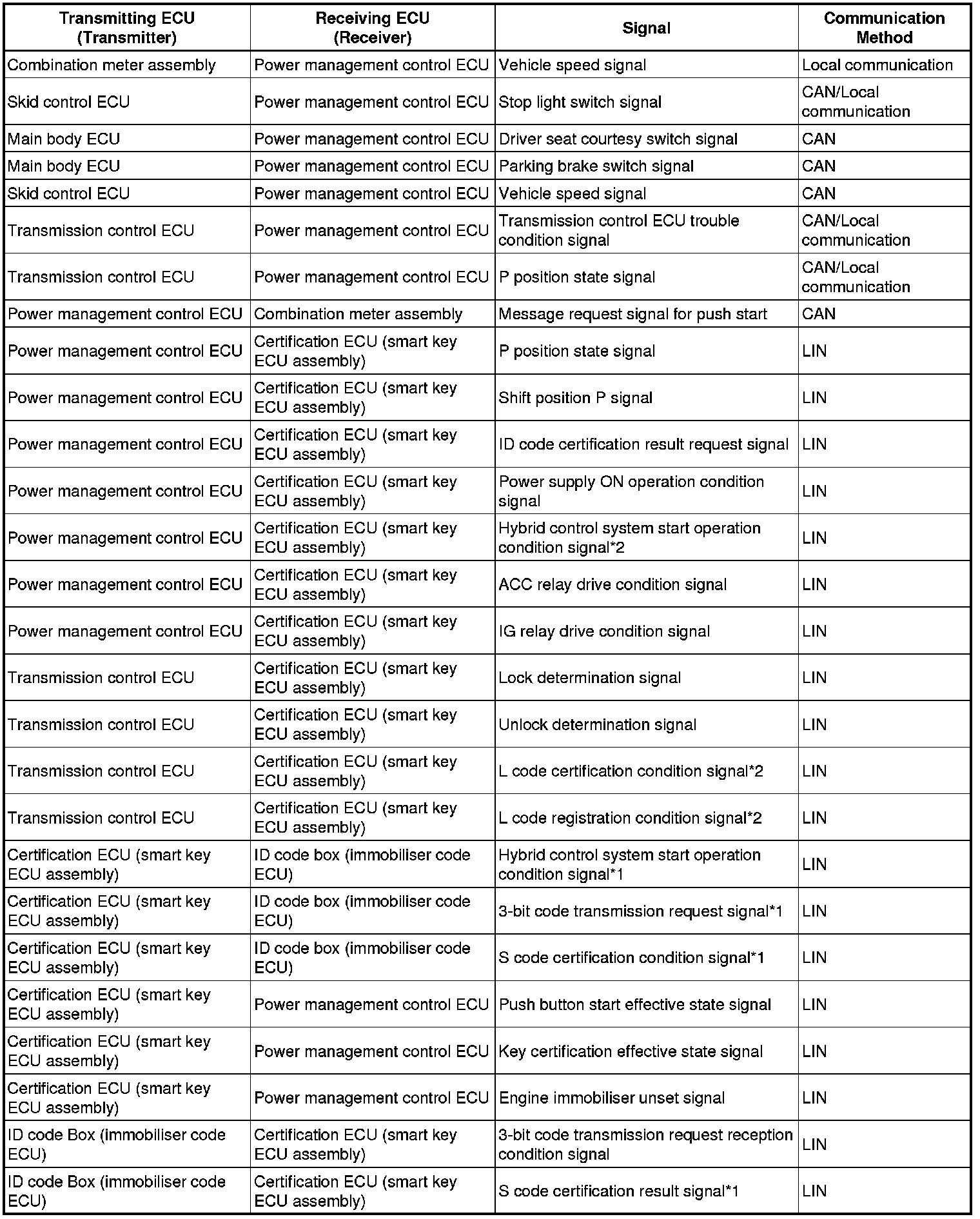

Communication Table









* *1: for Canada

* *2: except Canada
