PARKING BRAKE: PARKING BRAKE CABLE: INSTALLATION
1. INSTALL NO. 2 PARKING BRAKE CABLE CLAMP
(a) Install a new No. 2 parking brake cable clamp to the No. 3 parking brake cable assembly.
2. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY

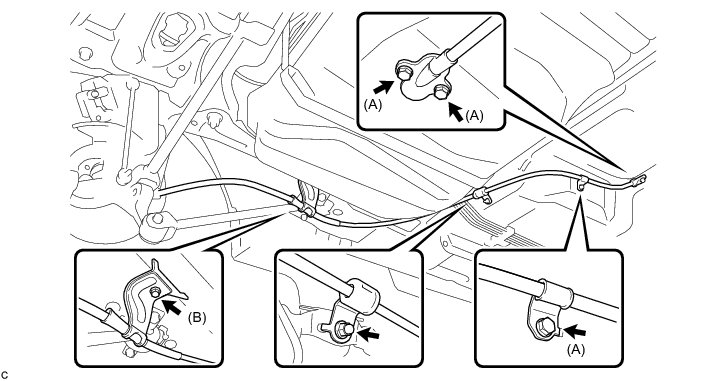

(a) Install the No. 3 parking brake cable assembly with the 4 bolts and nut.
Bolt (A) - Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)
Bolt (B) and Nut - Torque : 6.0 Nm (61 kgf-cm, 53 in-lbf)
(b) Install the No. 3 parking brake cable assembly with the bolt.
Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)
(c) Install the clip to the No. 3 parking brake cable assembly.
3. INSTALL NO. 2 FLOOR UNDER COVER (for LH Side)
(a) w/ Floor Under Cover:
(1) Install the No. 2 floor under cover with the 2 bolts, 3 nuts and 2 clips.
Bolt - Torque : 12 Nm (122 kgf-cm, 9 ft-lbf)
Nut - Torque : 4.0 Nm (41 kgf-cm, 35 in-lbf)
4. INSTALL NO. 1 FLOOR UNDER COVER (for RH Side)
(a) Install the No. 1 floor under cover with the 2 bolts, 3 nuts and 2 clips.
Bolt - Torque : 12 Nm (122 kgf-cm, 9 ft-lbf)
Nut - Torque : 4.0 Nm (41 kgf-cm, 35 in-lbf)
5. INSTALL PARKING BRAKE SHOE LEVER
Reassembly
6. INSTALL FRONT NO. 2 FLOOR HEAT INSULATOR (for 2AR-FE)
(a) Install the front No. 2 floor heat insulator with the 3 nuts.
Torque : 4.9 Nm (50 kgf-cm, 43 in-lbf)
7. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 2AR-FE)
Installation
8. INSTALL NO. 4 PARKING BRAKE CABLE ASSEMBLY
(a) Install the No. 4 parking brake cable assembly to the parking brake equalizer.

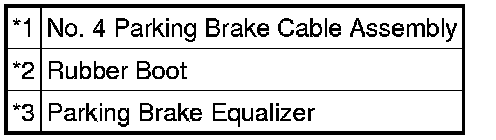

Text in Illustration
(b) Slide the parking brake equalizer and rubber boot as shown in the illustration.
NOTICE:
Make sure that the rubber boot is securely inserted into the groove of the No. 4 parking brake cable assembly.
(c) Connect the No. 3 parking brake cable assembly to the parking brake equalizer.

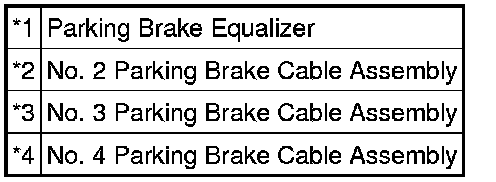

Text in Illustration
(d) Connect the No. 2 parking brake cable assembly to the parking brake equalizer.
9. INSTALL NO. 4 CROSS MEMBER FLOOR REINFORCEMENT SUB-ASSEMBLY
(a) Install the No. 4 cross member floor reinforcement sub-assembly with the 8 bolts.
Torque : 19 Nm (189 kgf-cm, 14 ft-lbf)
(b) Install the floor carpet.
(c) Engage the guide to connect the fuel lid lock open lever sub-assembly as shown in the illustration.
(d) Install the screw.
10. INSTALL FLOOR CARPET HOOK Installation
11. INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BACK-UP BATTERY (w/ Manual (SOS) Switch) Installation
12. INSTALL AUDIO AMPLIFIER COVER (w/ Manual (SOS) Switch) Installation
13. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET (for 10 Speakers) Installation
14. INSTALL AUDIO AMPLIFIER COVER (for 10 Speakers) Installation
15. INSTALL FRONT SEAT ASSEMBLY LH
* for TMMK Made Manual Seat: Installation
* for TMMK Made Power Seat: Installation
* for SIA Made Manual Seat: Installation
* for SIA Made Power Seat: Installation
16. INSTALL FRONT SEAT ASSEMBLY RH
HINT
Use the same procedure as for the LH side.
17. INSTALL CENTER PILLAR LOWER GARNISH LH Installation
18. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH Installation
19. INSTALL LAP BELT OUTER ANCHOR COVER (for LH Side) Installation
20. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH Installation
21. INSTALL REAR DOOR SCUFF PLATE LH Installation
22. INSTALL CENTER PILLAR LOWER GARNISH RH Installation
23. CONNECT FRONT SEAT OUTER BELT ASSEMBLY RH Installation
24. INSTALL LAP BELT OUTER ANCHOR COVER (for RH Side) Installation
25. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH Installation
26. INSTALL REAR DOOR SCUFF PLATE RH Installation
27. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY
(a) Pass the No. 1 parking brake cable assembly through the parking brake pedal assembly.
(b) Install the clip to the No. 1 parking brake cable assembly.
(c) Temporarily install the adjusting nut.
(d) Bend the parking brake pedal claw.
28. INSTALL PARKING BRAKE CONTROL PEDAL ASSEMBLY
Installation
