Installation

1NZ-FE COOLING: WATER PUMP: INSTALLATION

1. INSTALL WATER PUMP ASSEMBLY





(a) Install the water pump assembly through a new gasket with the 3 bolts and 2 nuts.

Torque : 11 Nm (112 kgf-cm, 8.1 ft-lbf)

2. INSTALL WATER PUMP PULLEY

(a) Provisionally install the water pump pulley with the 3 bolts.

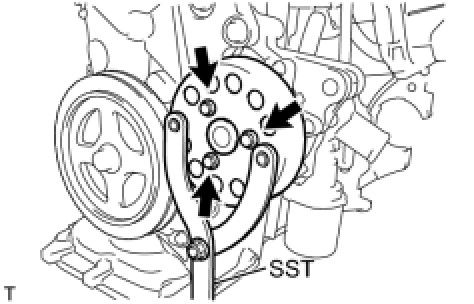

(b) Using SST, hold the water pump pulley.





SST : 09960-10010

09962-01000

09963-00700

(c) Tighten the 3 bolts to the specified torque.

Torque : 15 Nm (153 kgf-cm, 11 ft-lbf)

3. INSTALL ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH (for Hatchback) Installation

4. INSTALL ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH (for Sedan) Installation

5. INSTALL GENERATOR ASSEMBLY Installation

6. INSTALL FAN & GENERATOR V BELT Installation

7. ADJUST FAN & GENERATOR V BELT Installation

8. INSPECT FAN & GENERATOR V BELT Installation

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

10. ADD ENGINE COOLANT Service and Repair

11. CHECK FOR ENGINE COOLANT LEAKAGE Testing and Inspection

12. INSTALL ENGINE UNDER COVER RH
