Removal

BRAKE CONTROL: STEERING ANGLE SENSOR: REMOVAL

CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE STEERING PAD Removal

3. REMOVE STEERING WHEEL ASSEMBLY Removal

4. REMOVE STEERING COLUMN COVER Removal

5. REMOVE SPIRAL CABLE Removal

6. REMOVE STEERING SENSOR

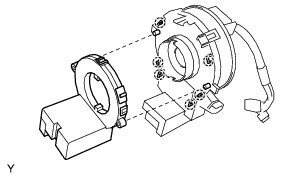

(a) Disengage the 6 claws, and remove the steering sensor from the spiral cable.
