ABS Control System Malfunction - Vehicle Stability Control System

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: 43: ABS Control System Malfunction
43 - ABS Control System Malfunction

DESCRIPTION

This DTC is output when the VSC system detects a malfunction in the ABS control system.





INSPECTION PROCEDURE

NOTICE:
When replacing the brake actuator assembly, perform zero point calibration Programming and Relearning.

PROCEDURE

1. CHECK ABS CONTROL SYSTEM

(a) Clear the DTC Vehicle Stability Control System.

(b) Turn the ignition switch to ON.

(c) Check if the same DTC is recorded Vehicle Stability Control System.

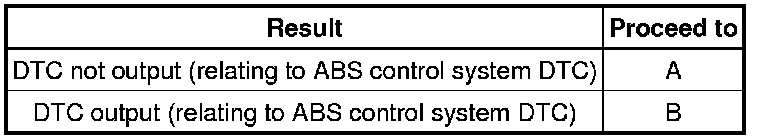

Result

Result:

B -- REPAIR CIRCUIT INDICATED BY OUTPUT DTC Vehicle Stability Control System
A -- Continue to next step.

2. RECONFIRM DTC

(a) Turn the ignition switch off.

(b) Clear the DTC Vehicle Stability Control System.

(c) Start the engine.

(d) Drive the vehicle at a speed of approximately 40 km/h (25 mph) or more for 60 seconds or more.

(e) Check if the same DTC is recorded Vehicle Stability Control System.

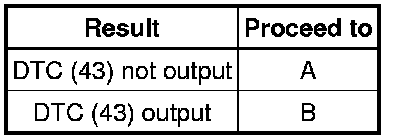

Result

Result:

B -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal

A -- CHECK FOR INTERMITTENT PROBLEMS (SYMPTOM SIMULATION) Check for Intermittent Problems
