Power Steering System
POWER STEERING: POWER STEERING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT
* If any DTCs are displayed during the DTC check, inspect the circuit listed for those DTCs. For details of each DTC.
* Test mode code C1571/71 is stored during the transition to test mode. This code does not indicate a malfunction since the code will be cleared when the ECU determines that the sensor is normal. The test mode code is cleared simultaneously when test mode is terminated.
* The EPS warning light remains illuminated during test mode and starts blinking when the speed sensor is determined to be normal.
Power Steering System

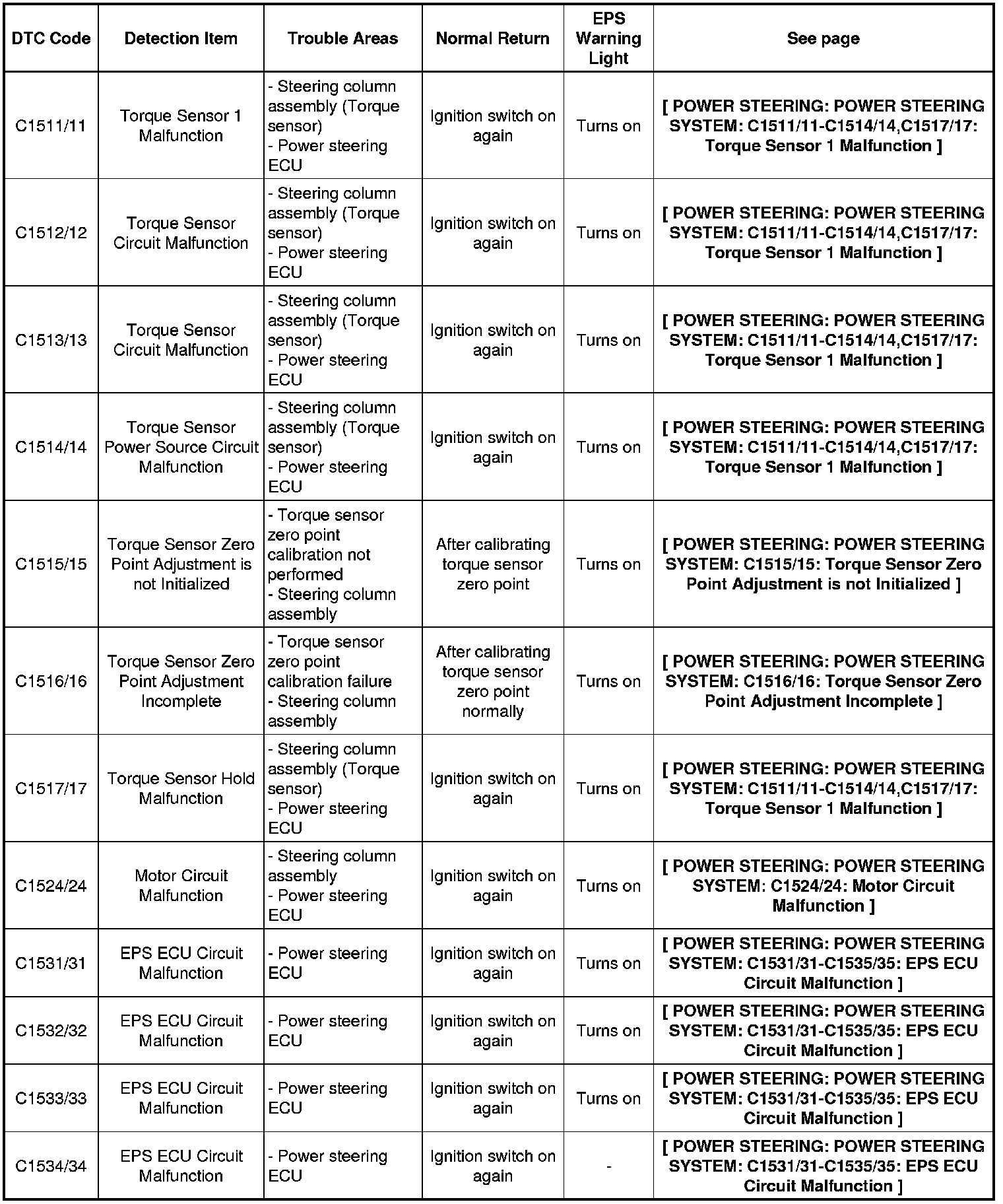

C1511/11-C1533/33:

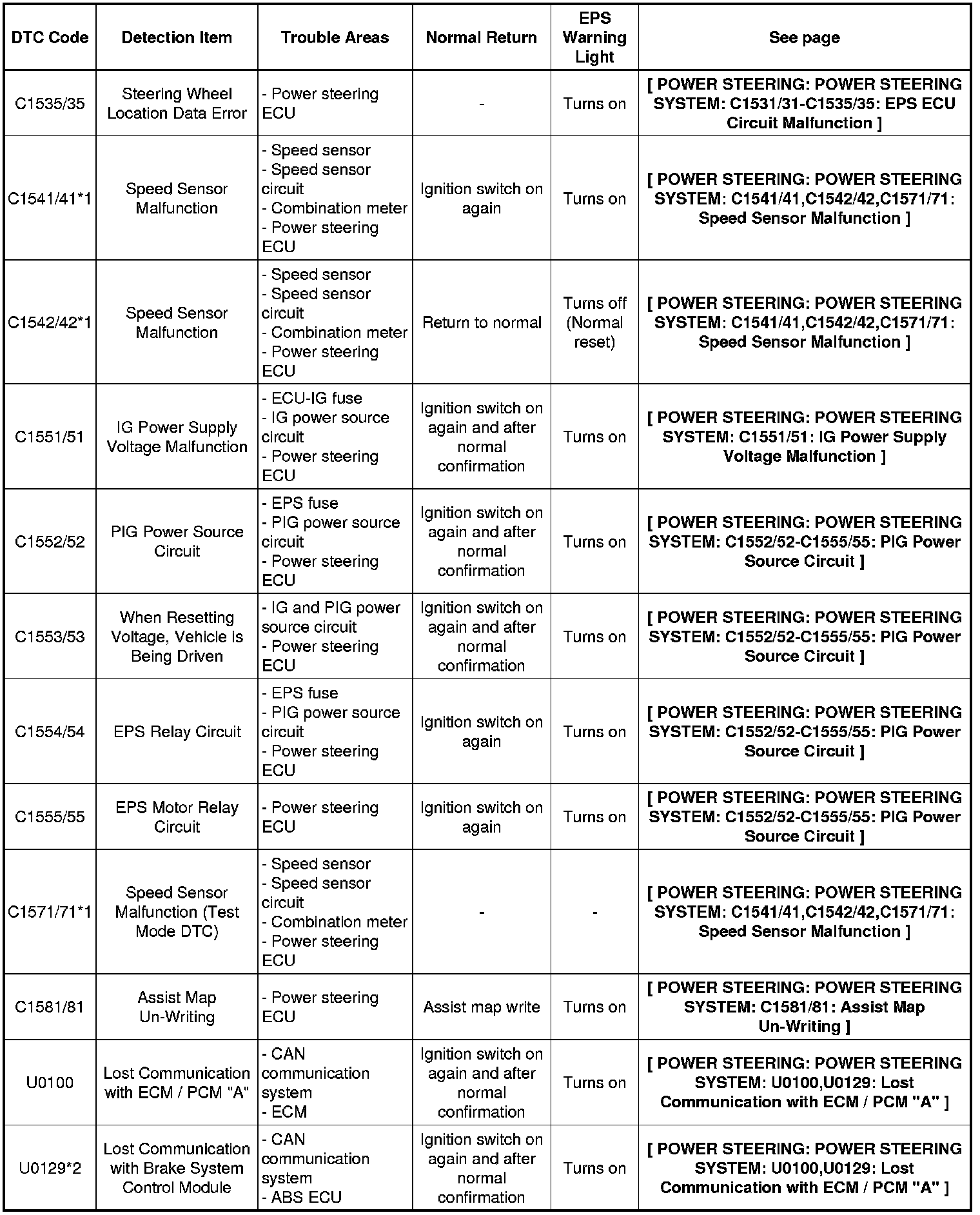

C1535/35-C1581/81 / U0100-U0129:
* *1: w/o ABS
* *2: w/ ABS
