Torque Specifications

SPECIFICATIONS: U760E AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

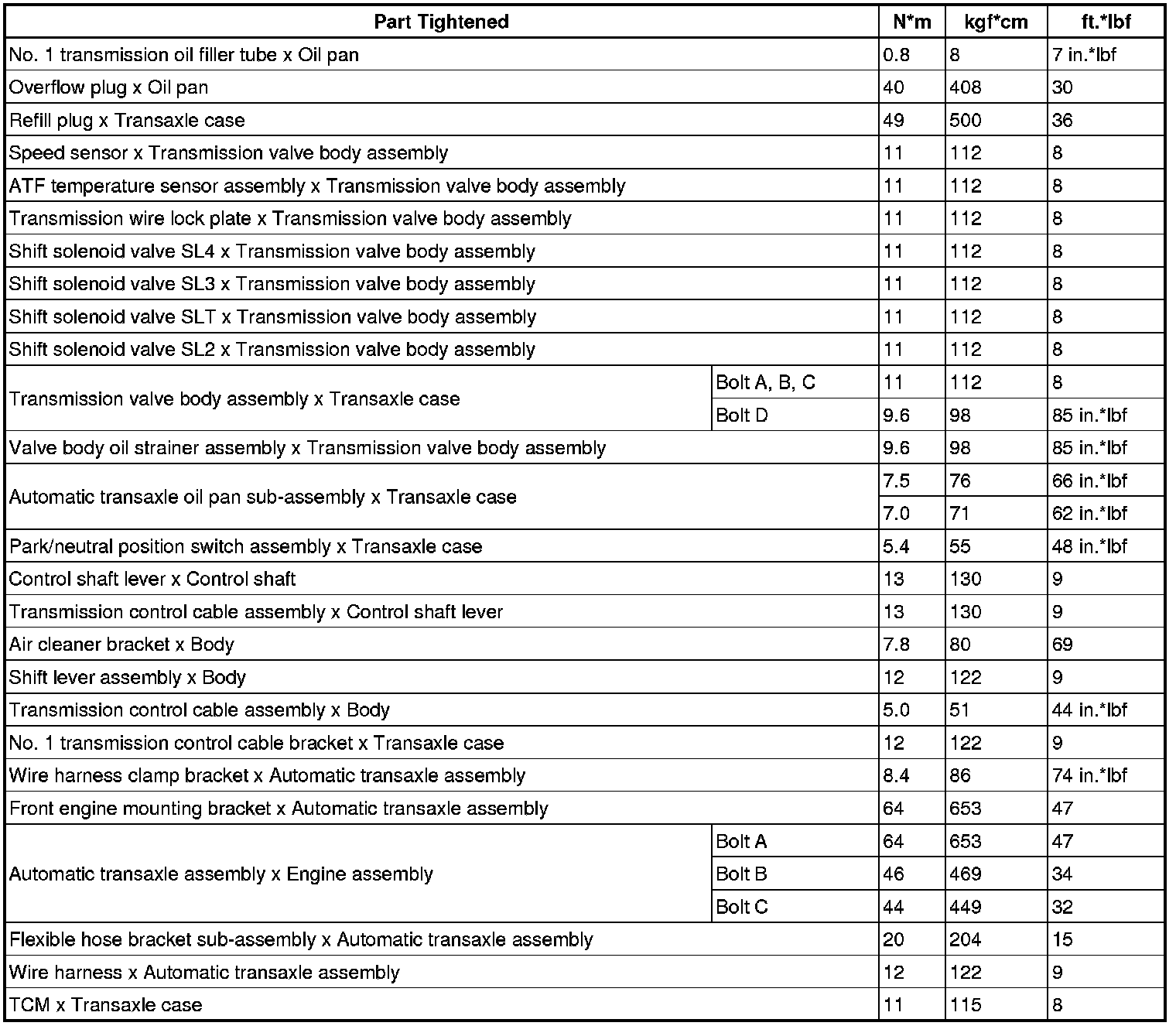

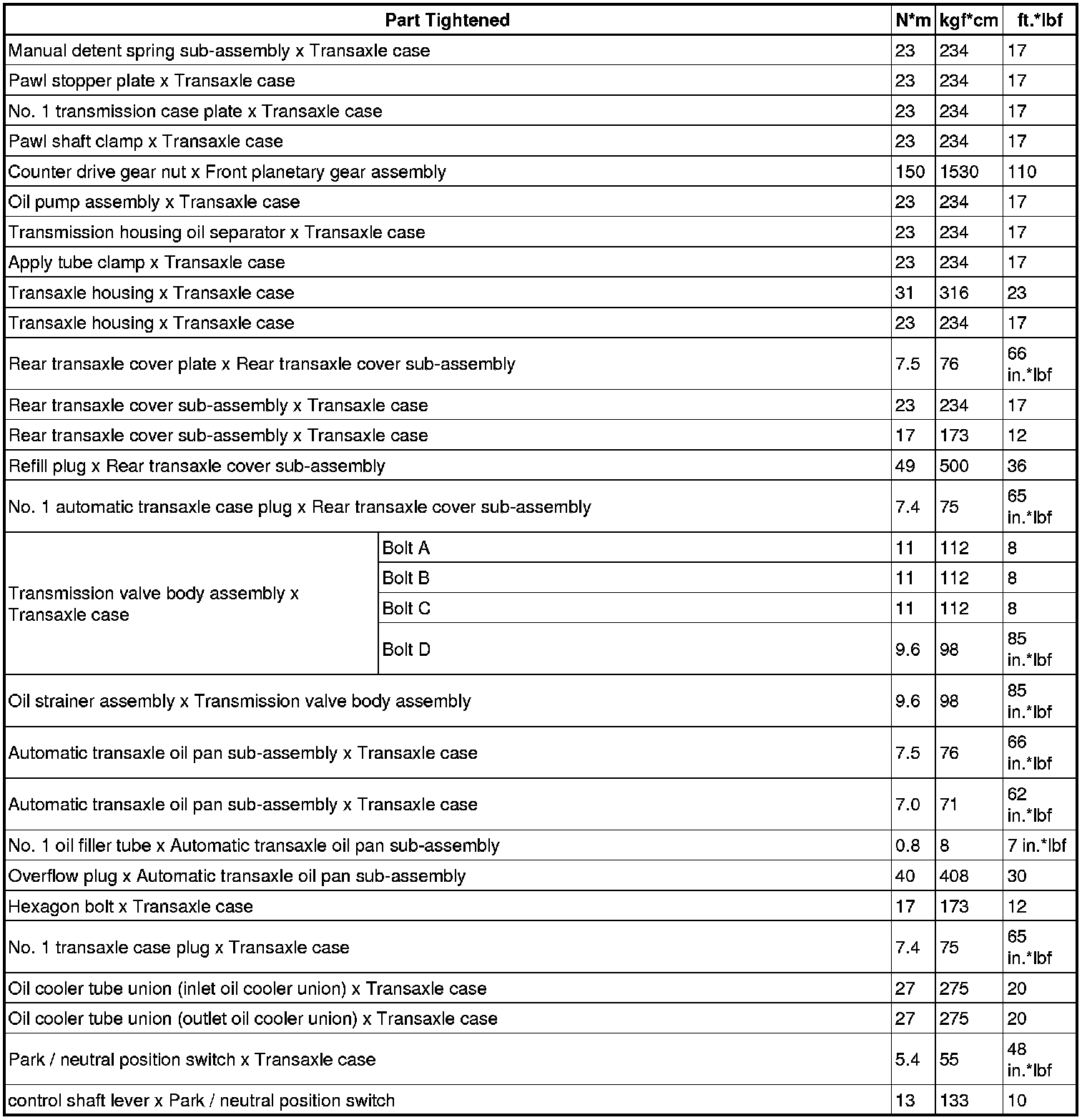

Automatic Transaxle Unit

Oil Pump

Differential Case
