Venza AWD L4-2.7L (1AR-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Starter Motor
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

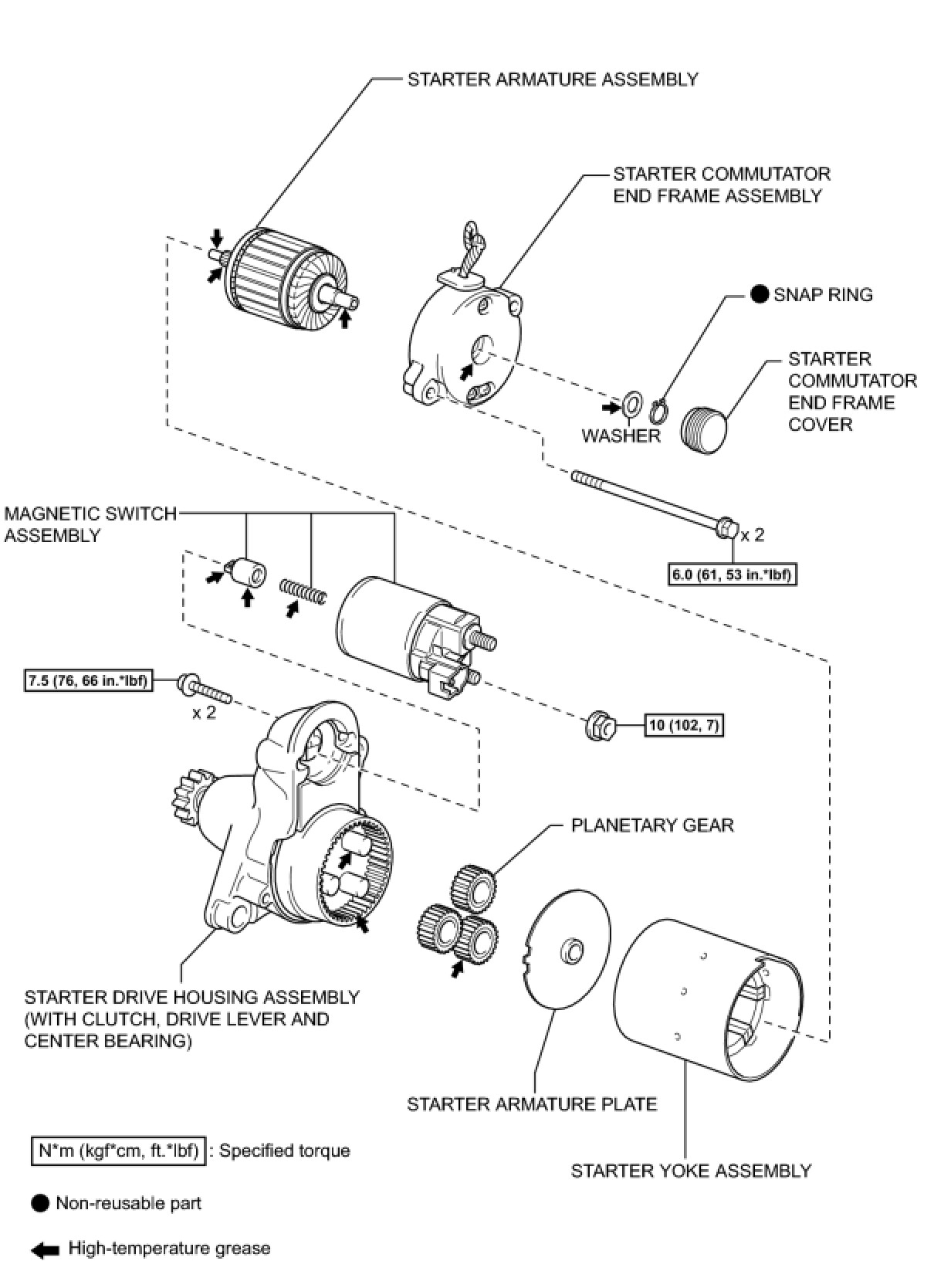

1AR-FE STARTING: STARTER: COMPONENTS
COMPONENTS
ILLUSTRATION
