Components
Components
1AR-FE ENGINE CONTROL:
CAMSHAFT

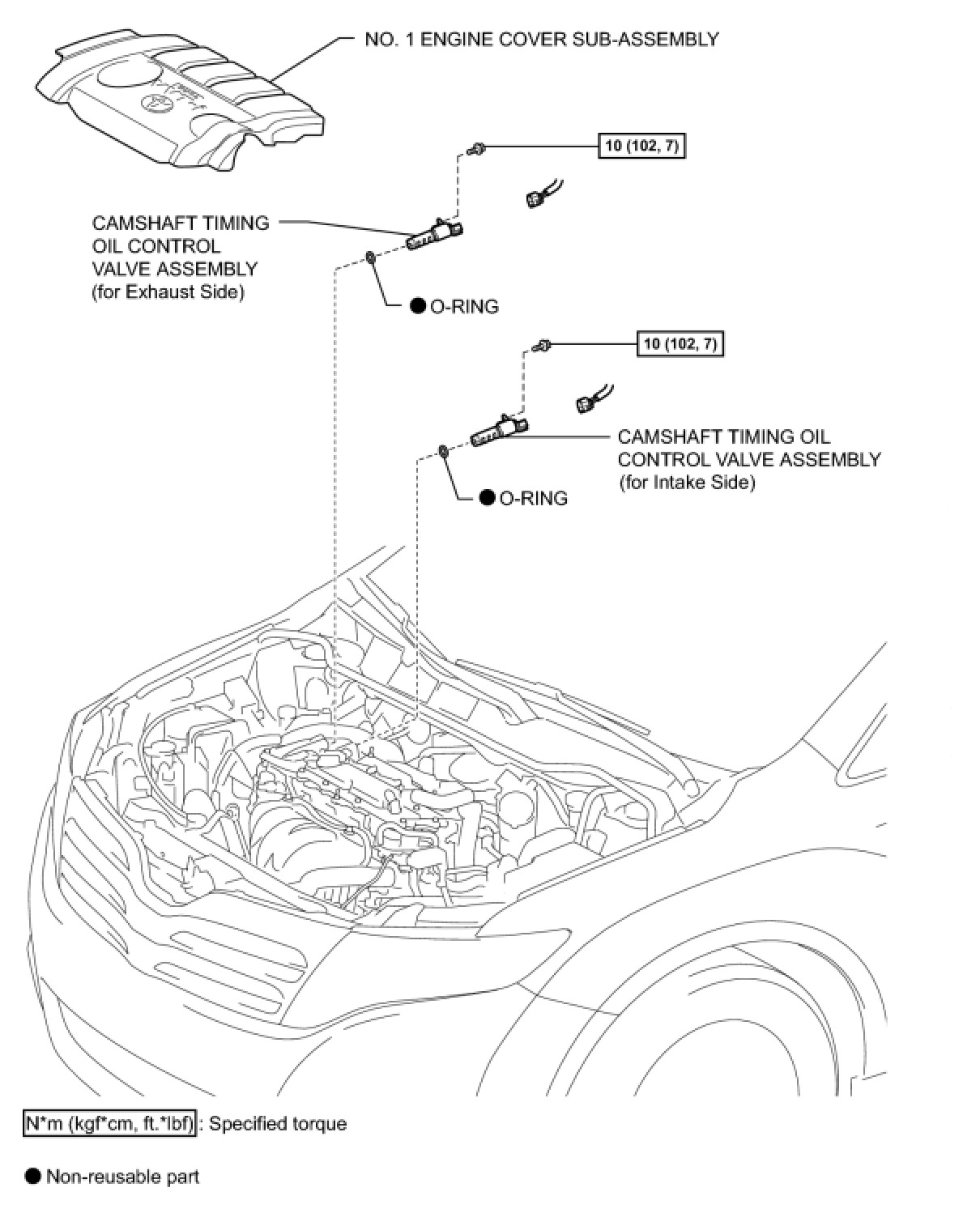

OIL CONTROL VALVE: COMPONENTS
COMPONENTS
ILLUSTRATION
