Toyota
>>
2009
>>
Matrix AWD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Window Glass
>>
Liftgate Window Glass
>>
Service and Repair
>>
Components
Components

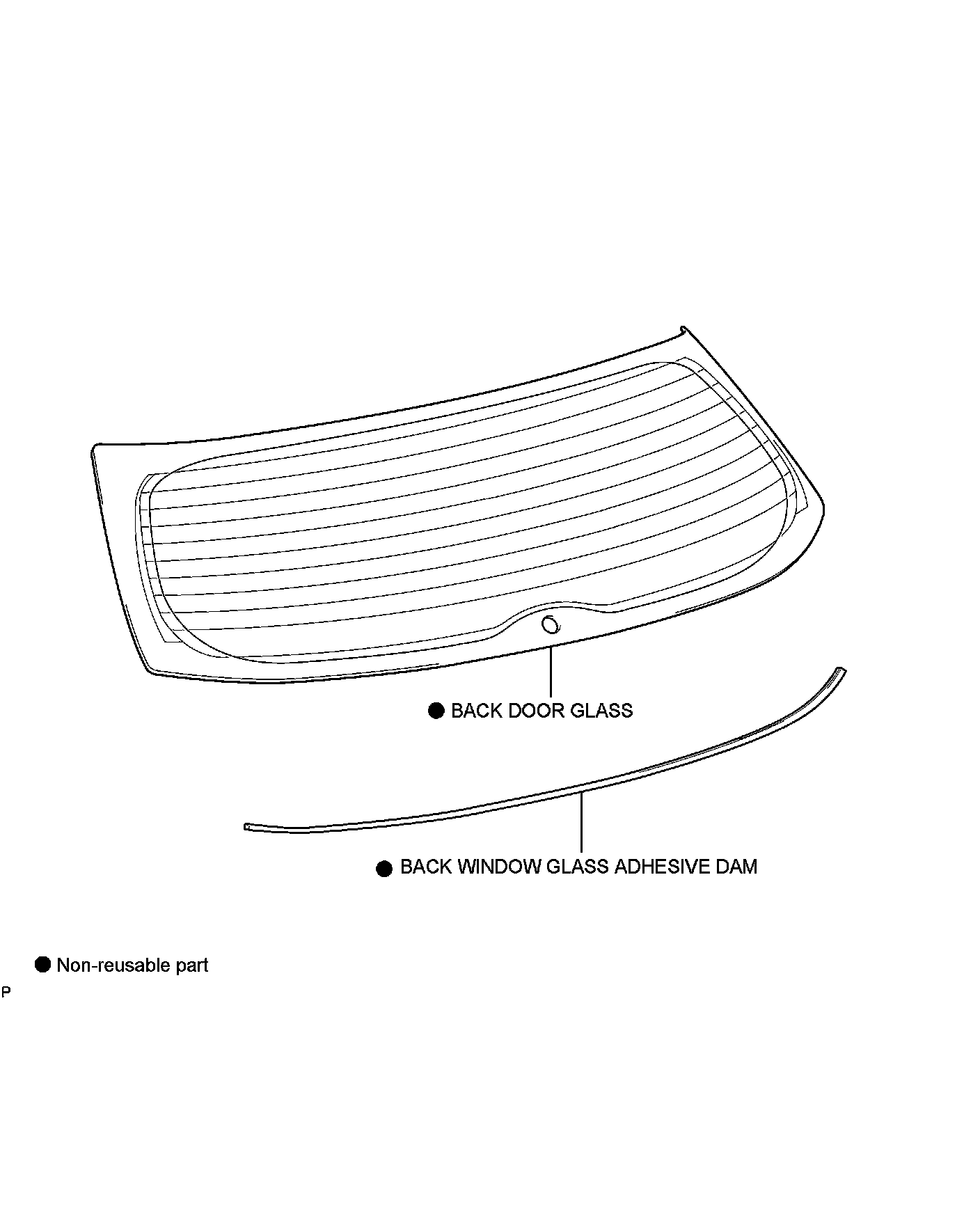

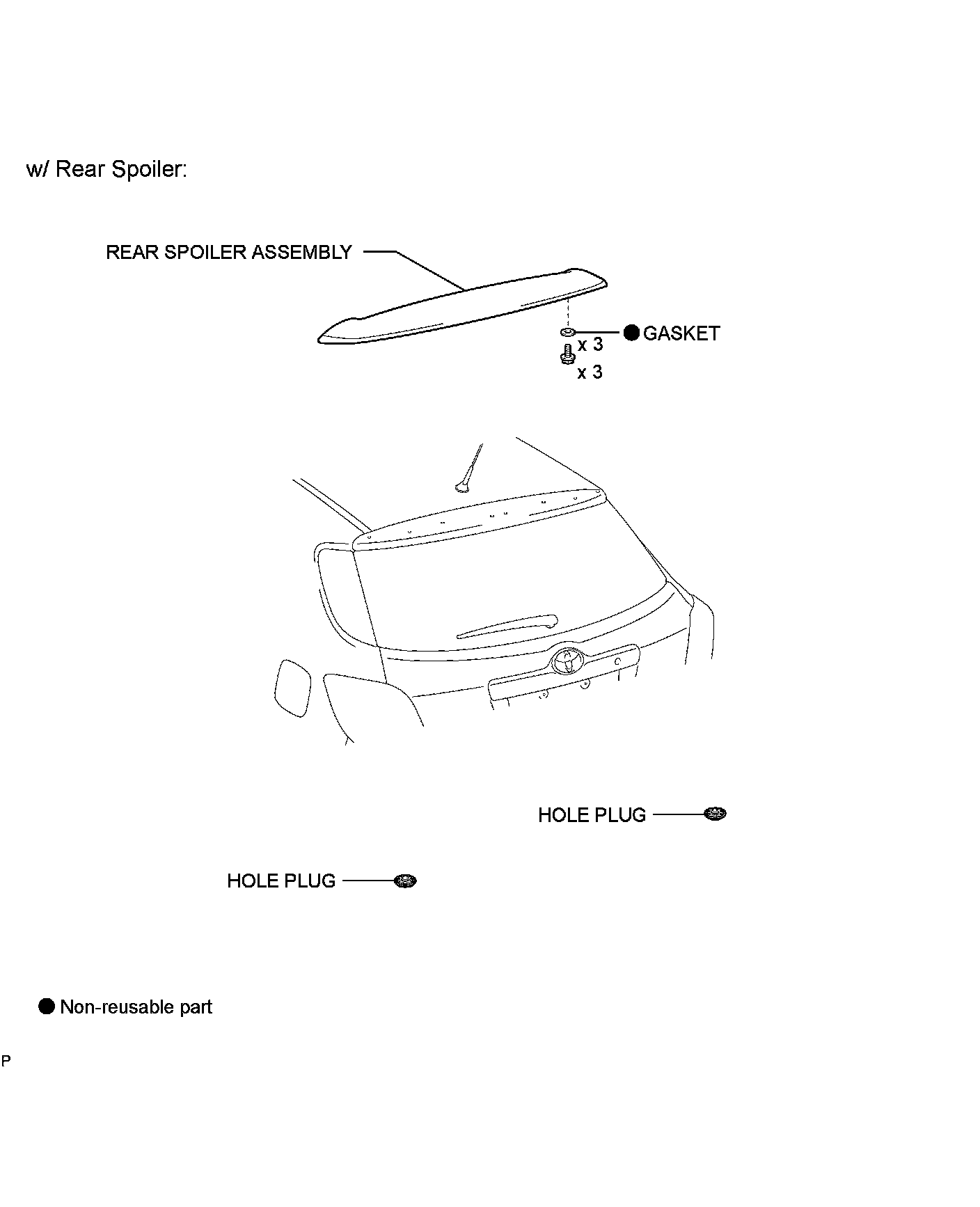

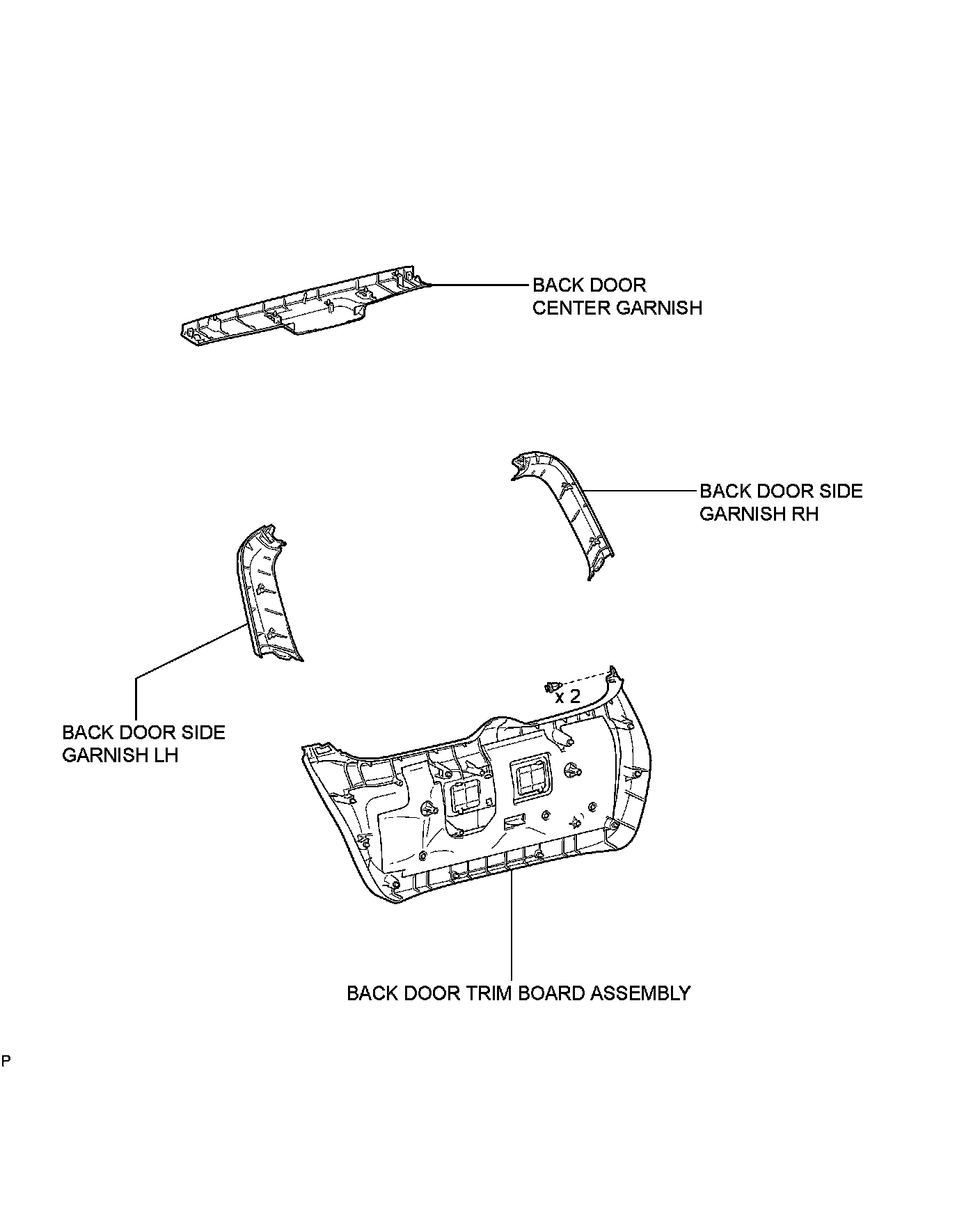

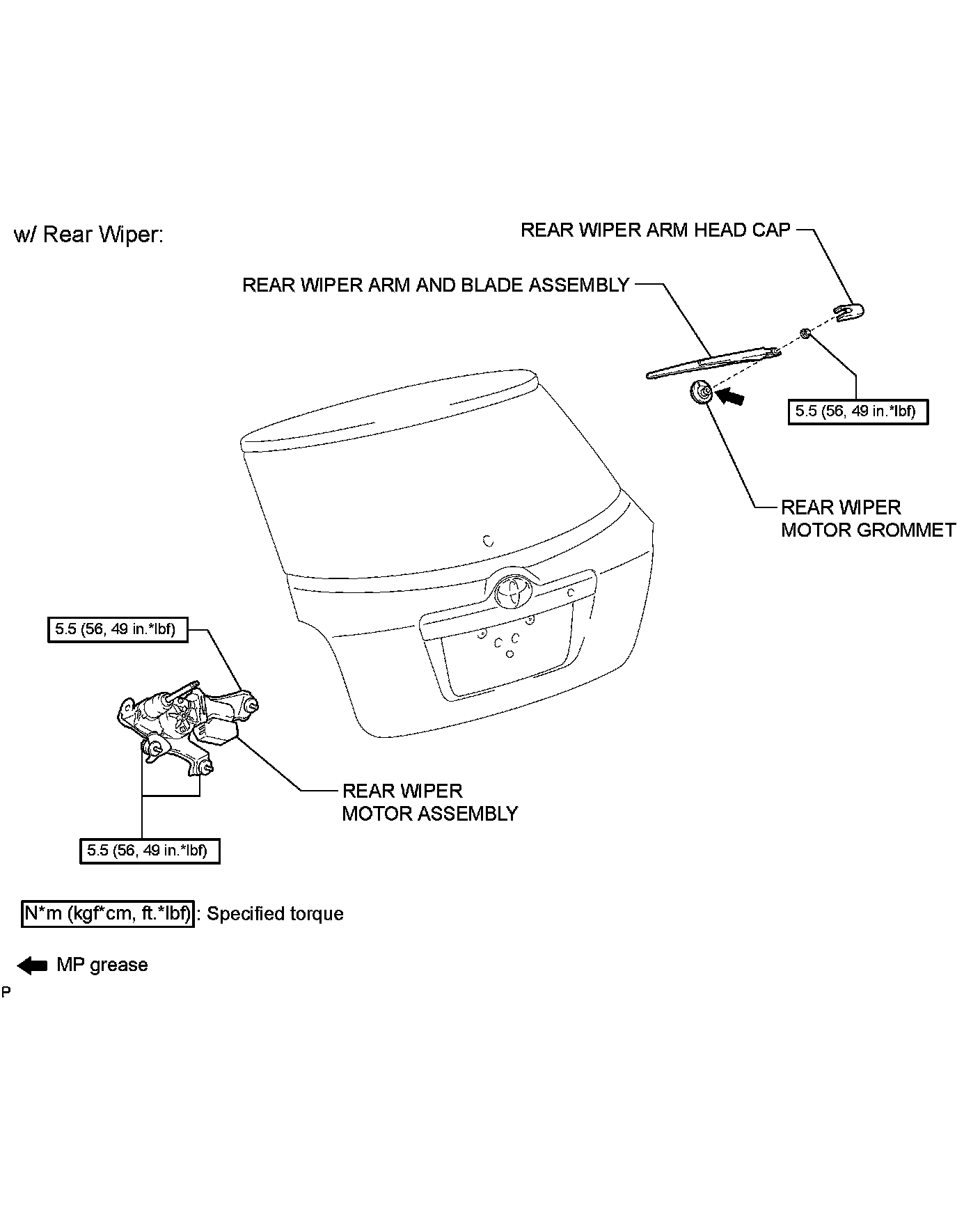

WINDOW / GLASS: BACK DOOR GLASS: COMPONENTS
COMPONENTS
ILLUSTRATION
