Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2008
>>
Corolla L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Engine Mechanical
>>
Service Data
Service Data

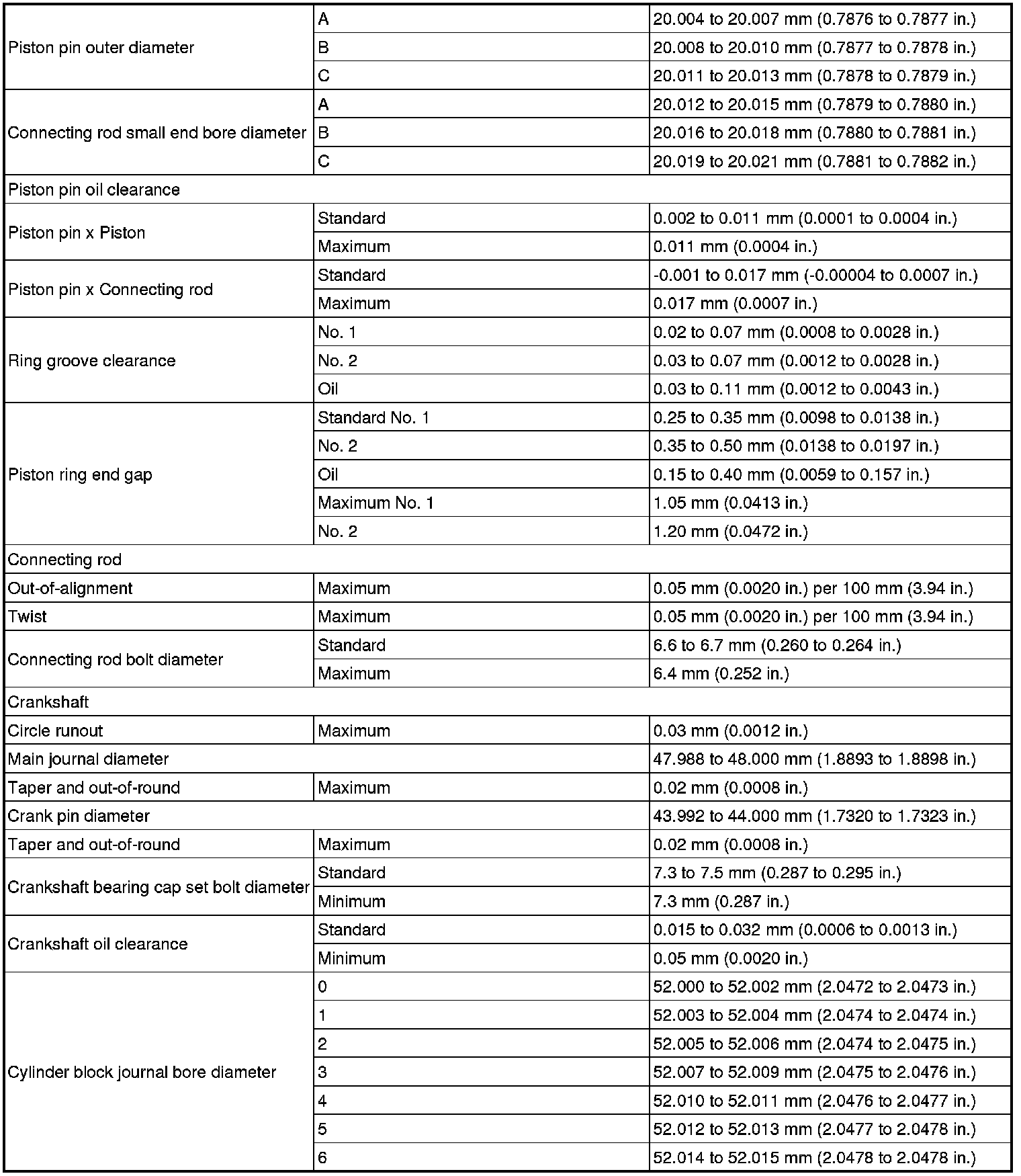

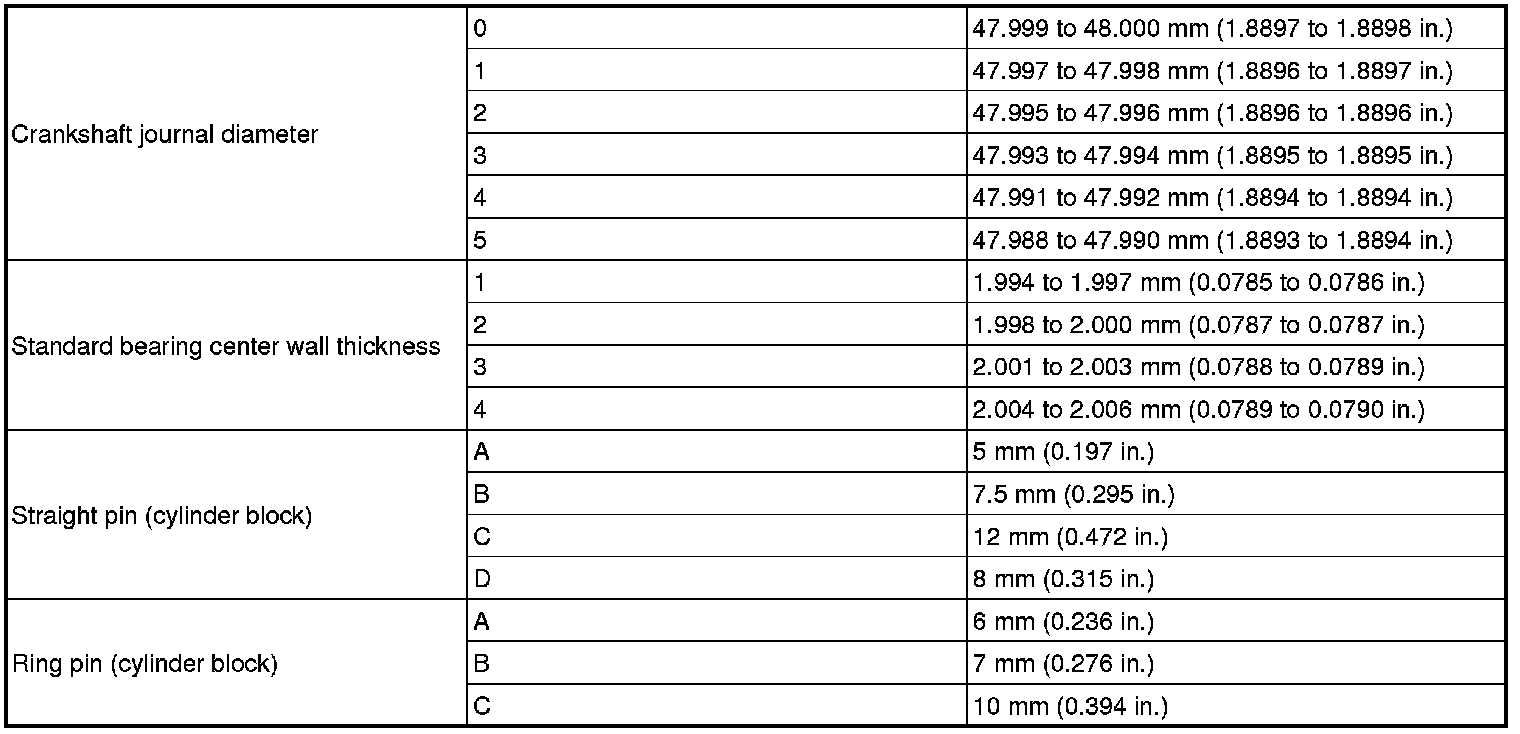

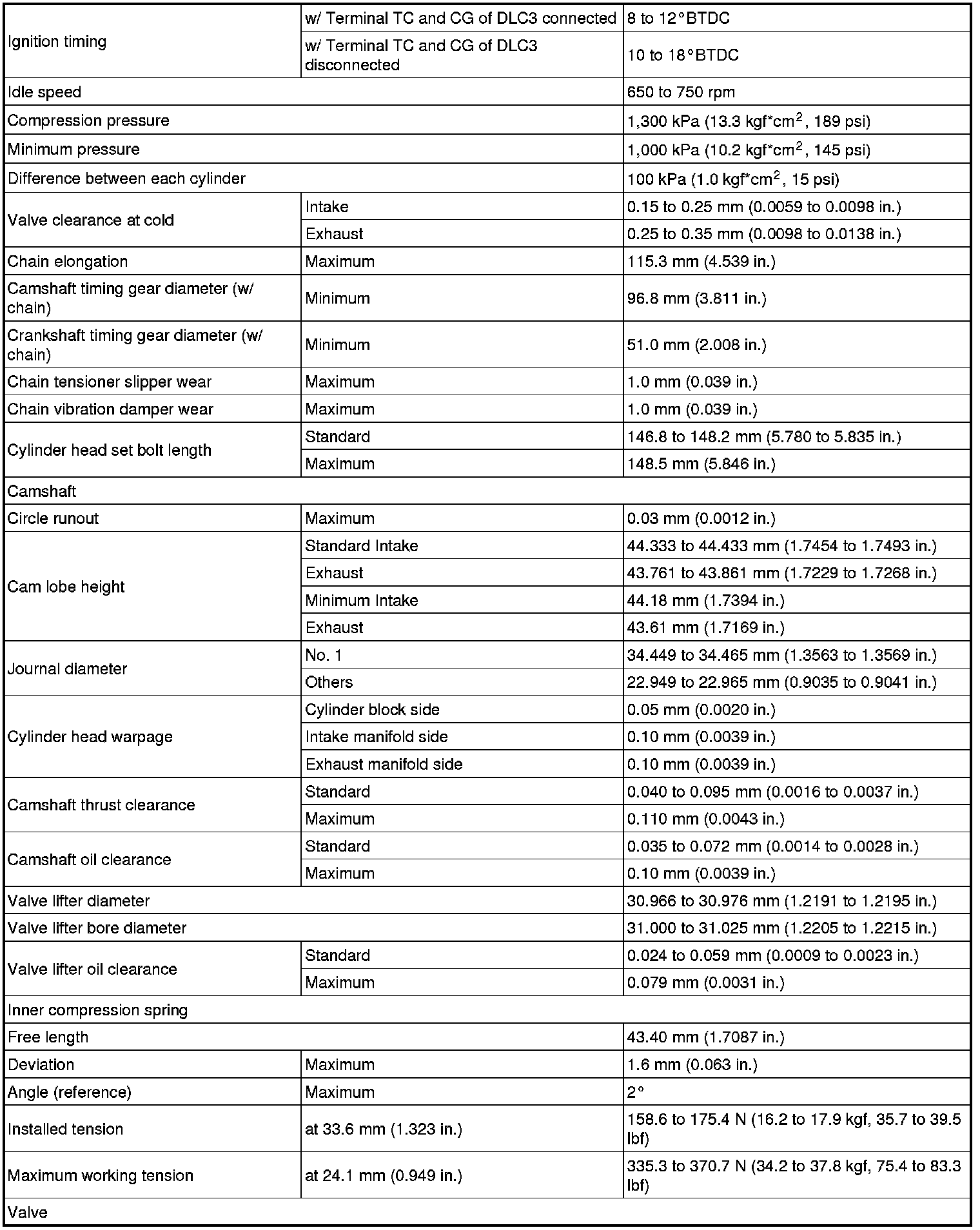

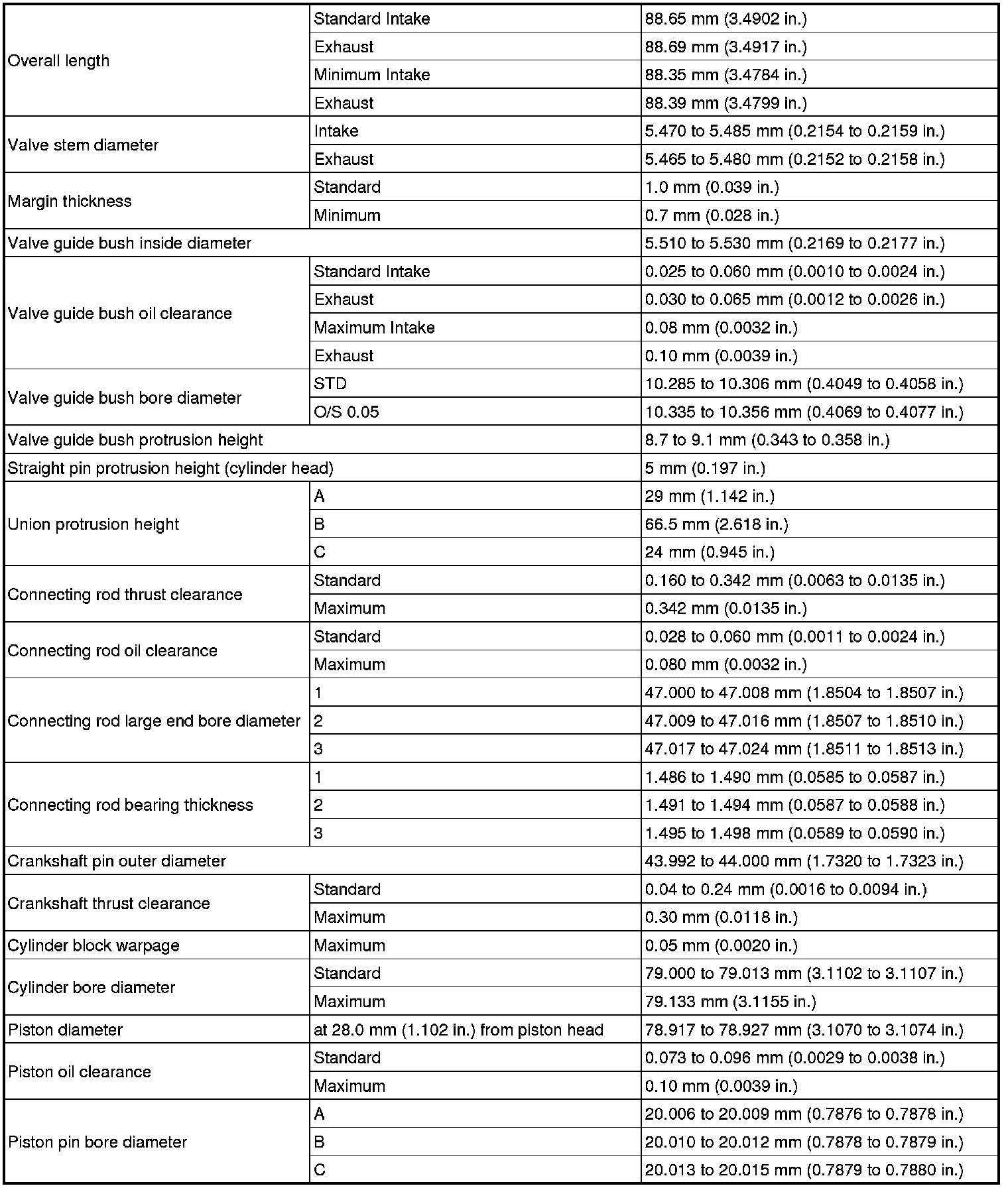

SERVICE SPECIFICATIONS: 1ZZ-FE ENGINE MECHANICAL: SERVICE DATA
SERVICE DATA
