Engine Control System - SFI System

DIAGNOSTIC TROUBLE CODE CHART

HINT: Parameters listed in the chart may be different than your readings depending on the type of instrument and other factors.

If any DTCs are displayed during a check mode DTC check, check the circuit for the DTCs listed in the table given. For details of each DTC, refer to the respective "DTC No." in the DTC chart.

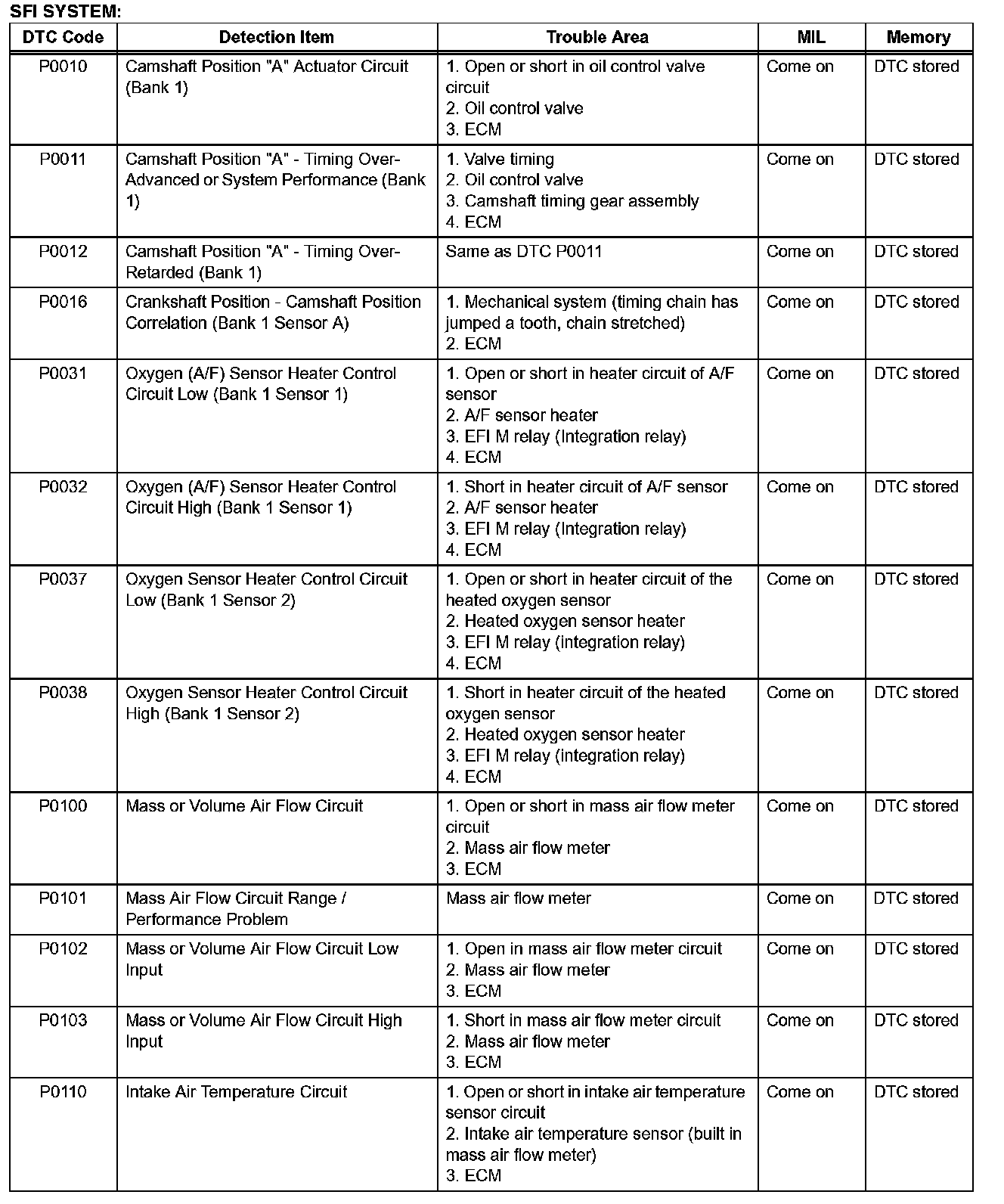

P0010-P0110:

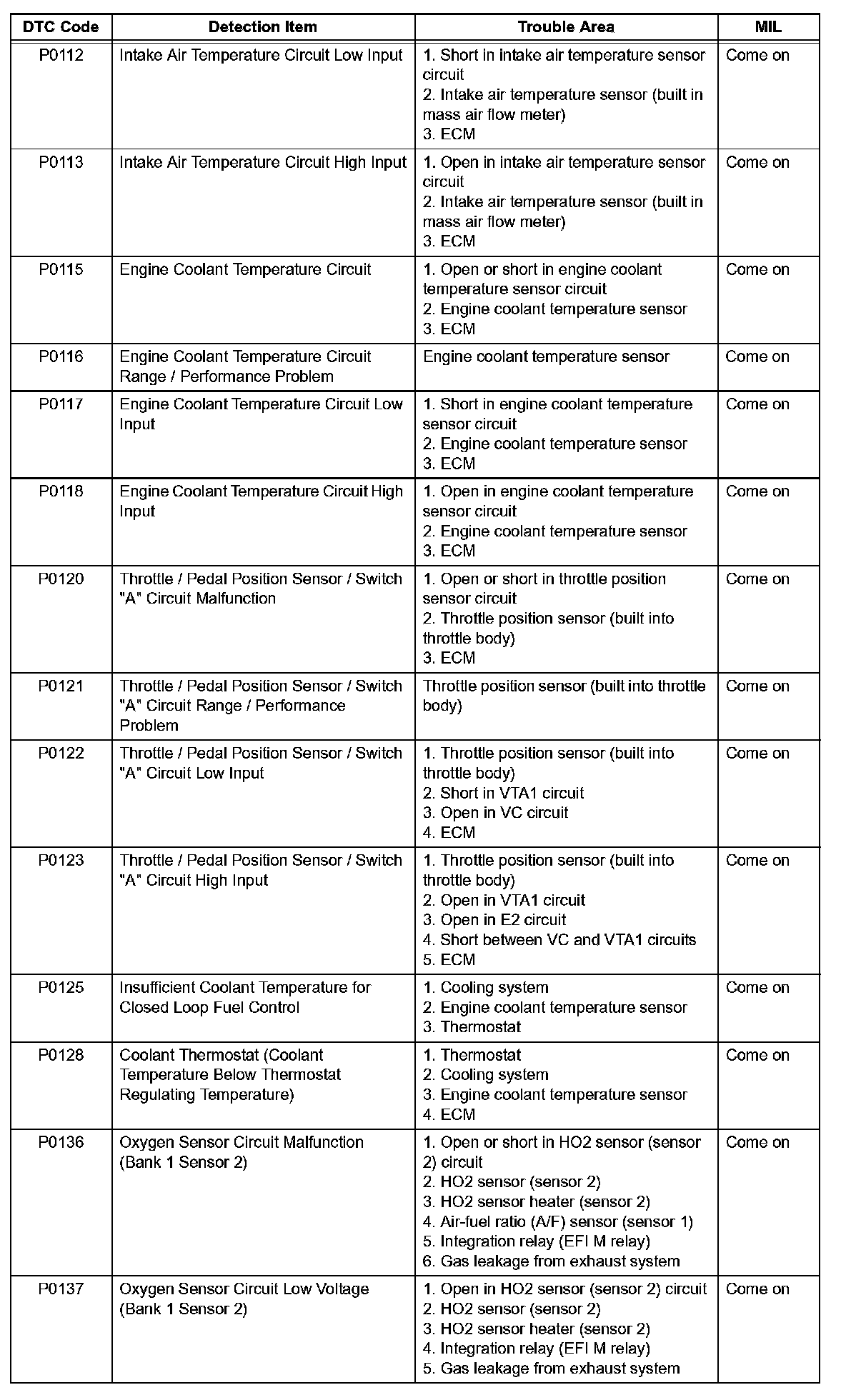

P0112-P0137:

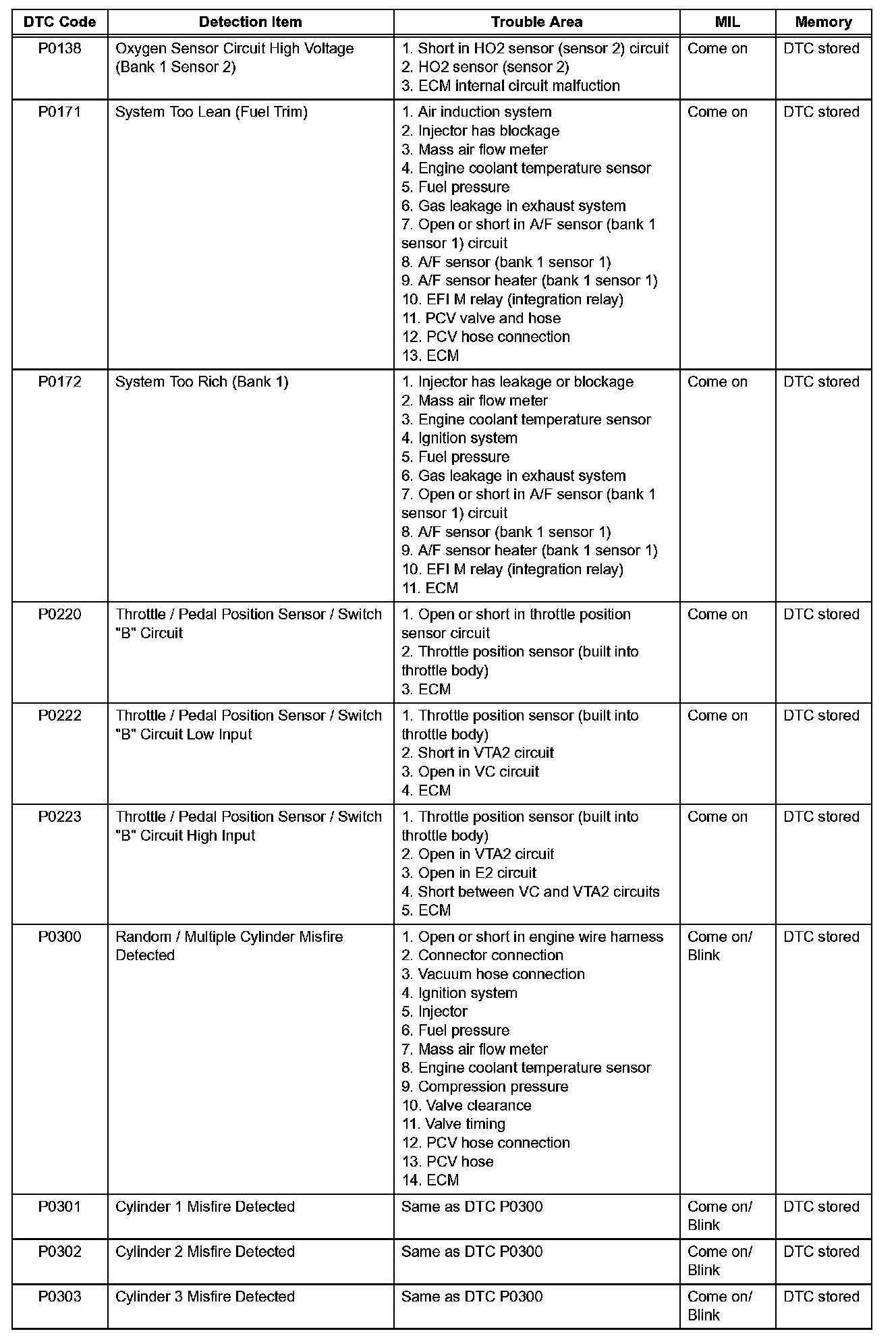

P0138-P0303:

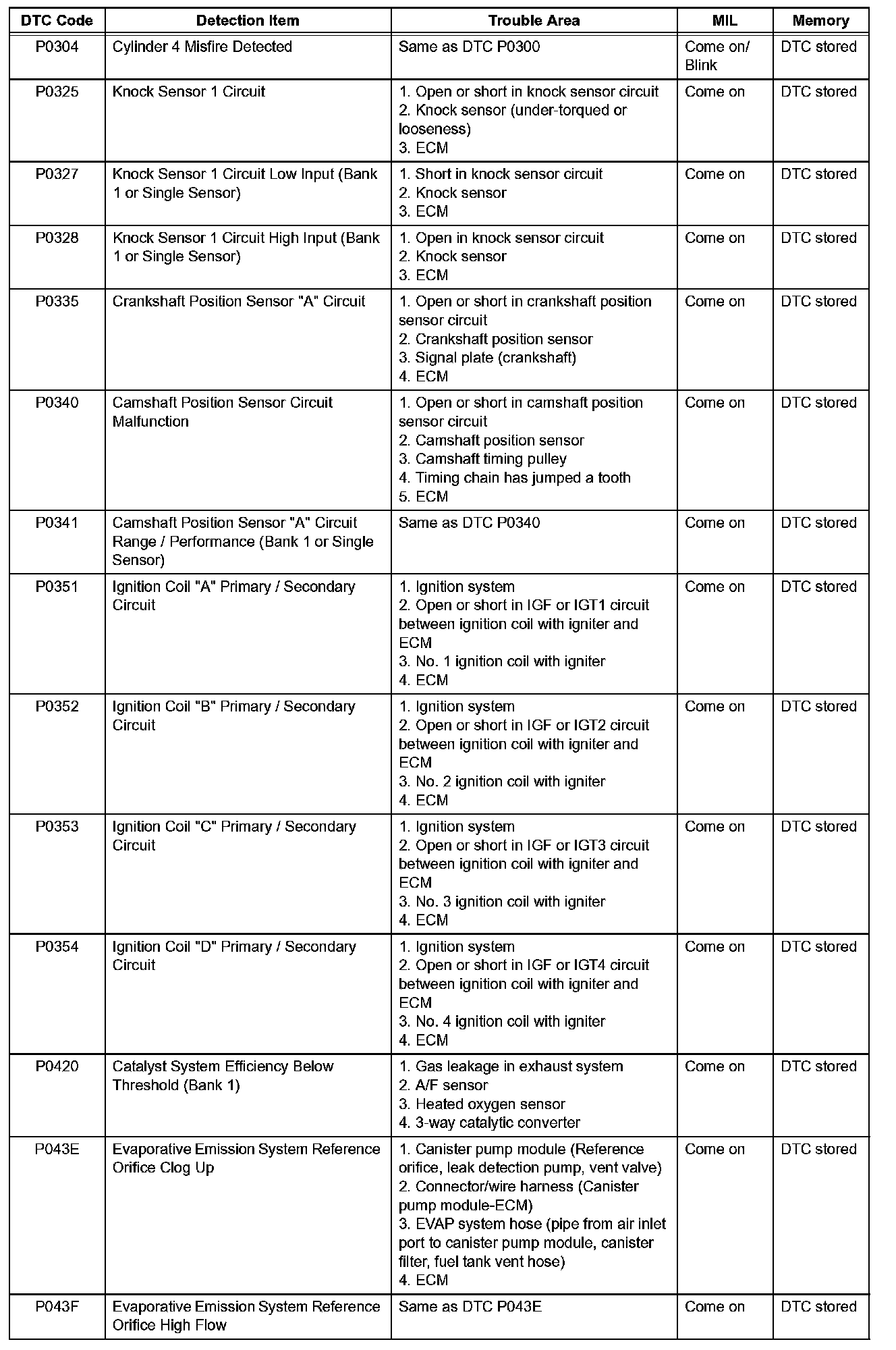

P0304-P043F:

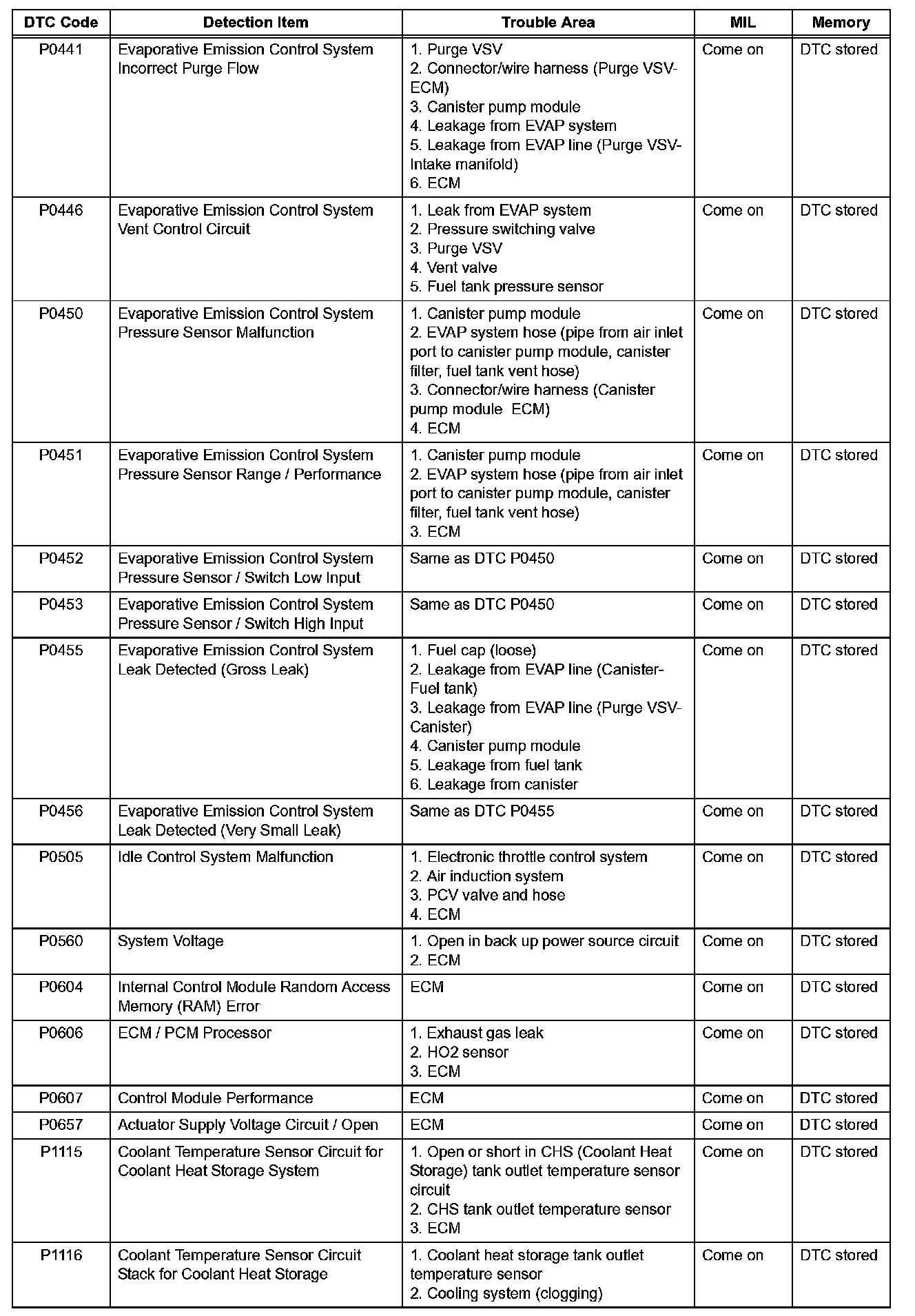

P0441-P1116:

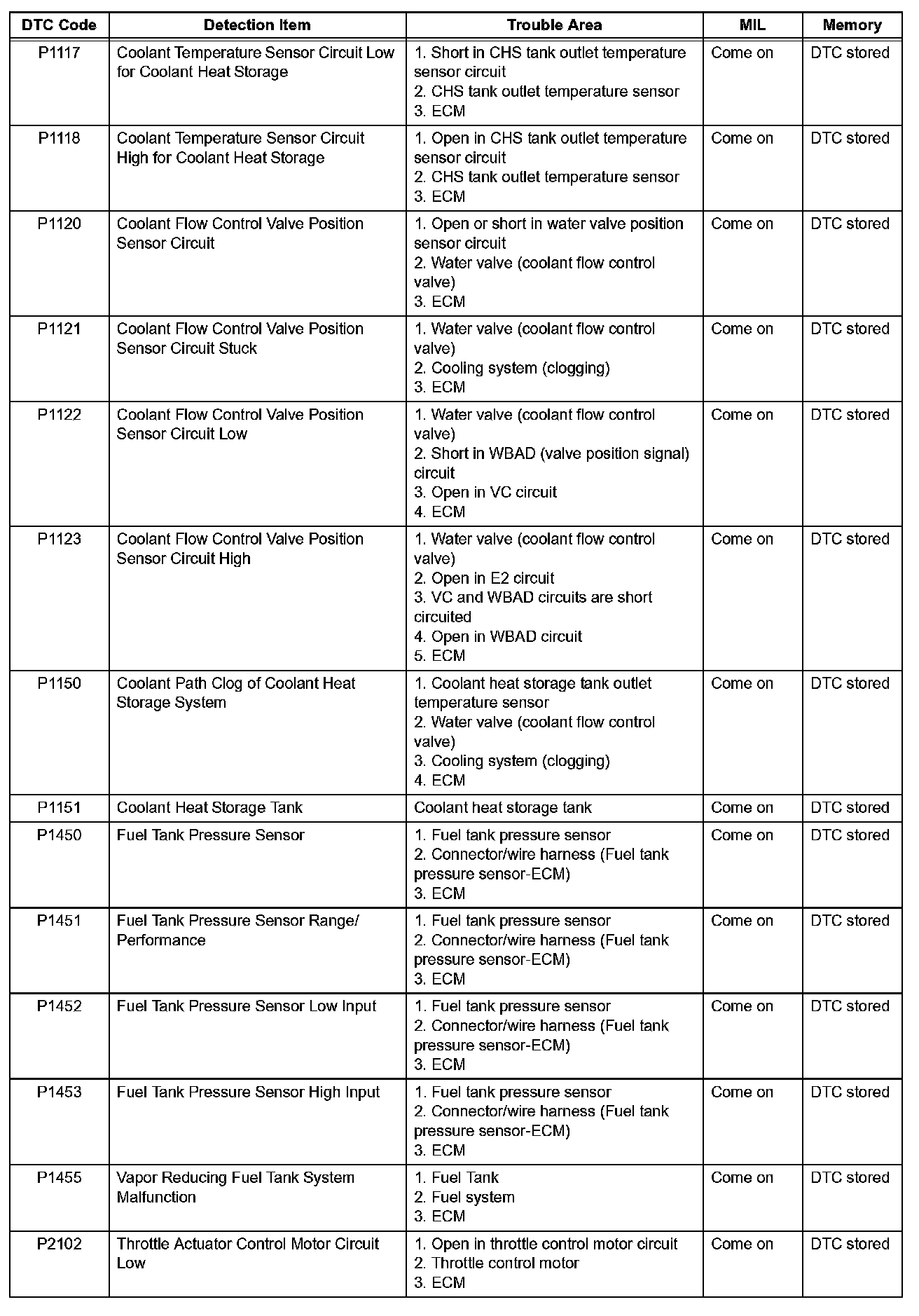

P1117-P2102:

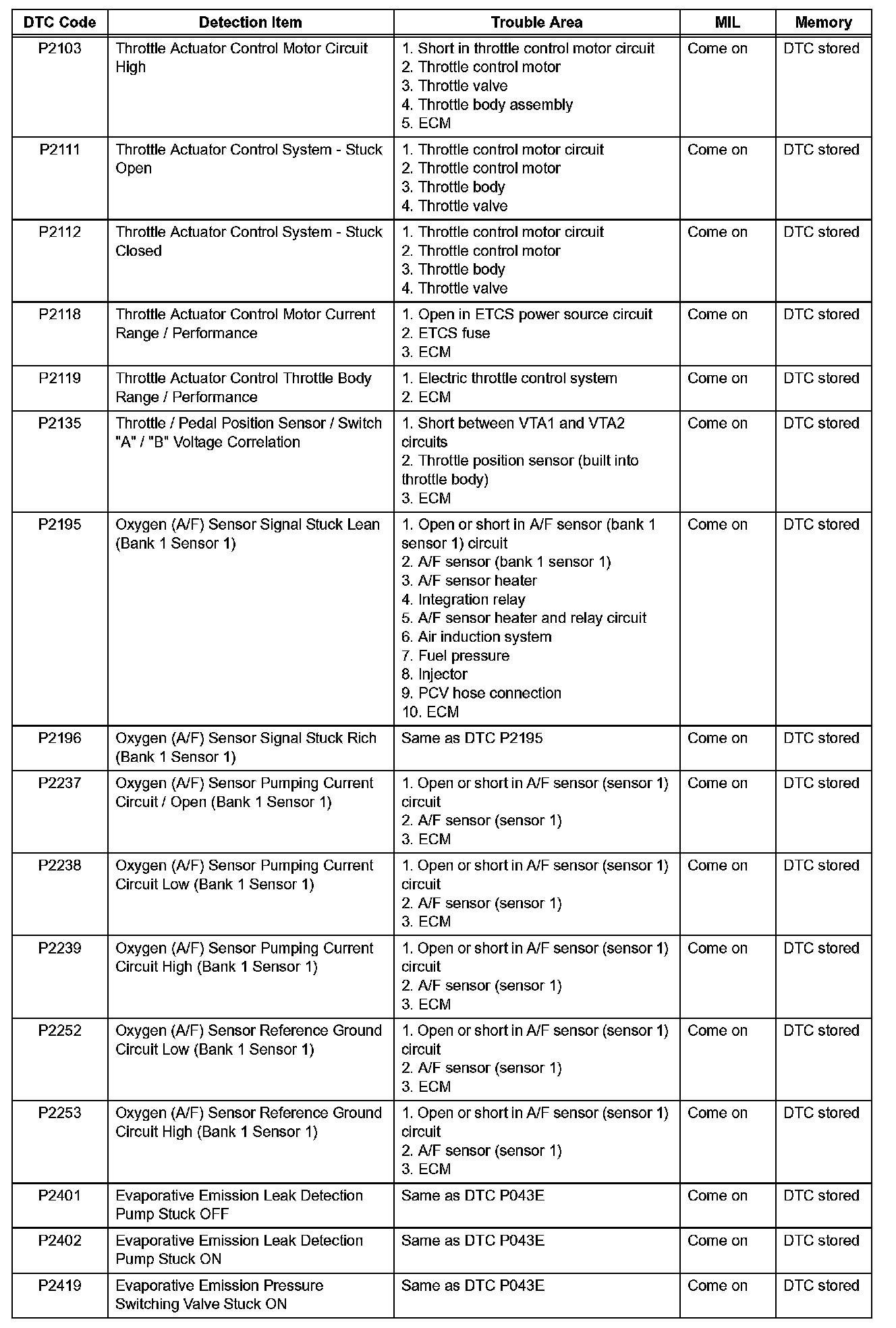

P2103-P2419:

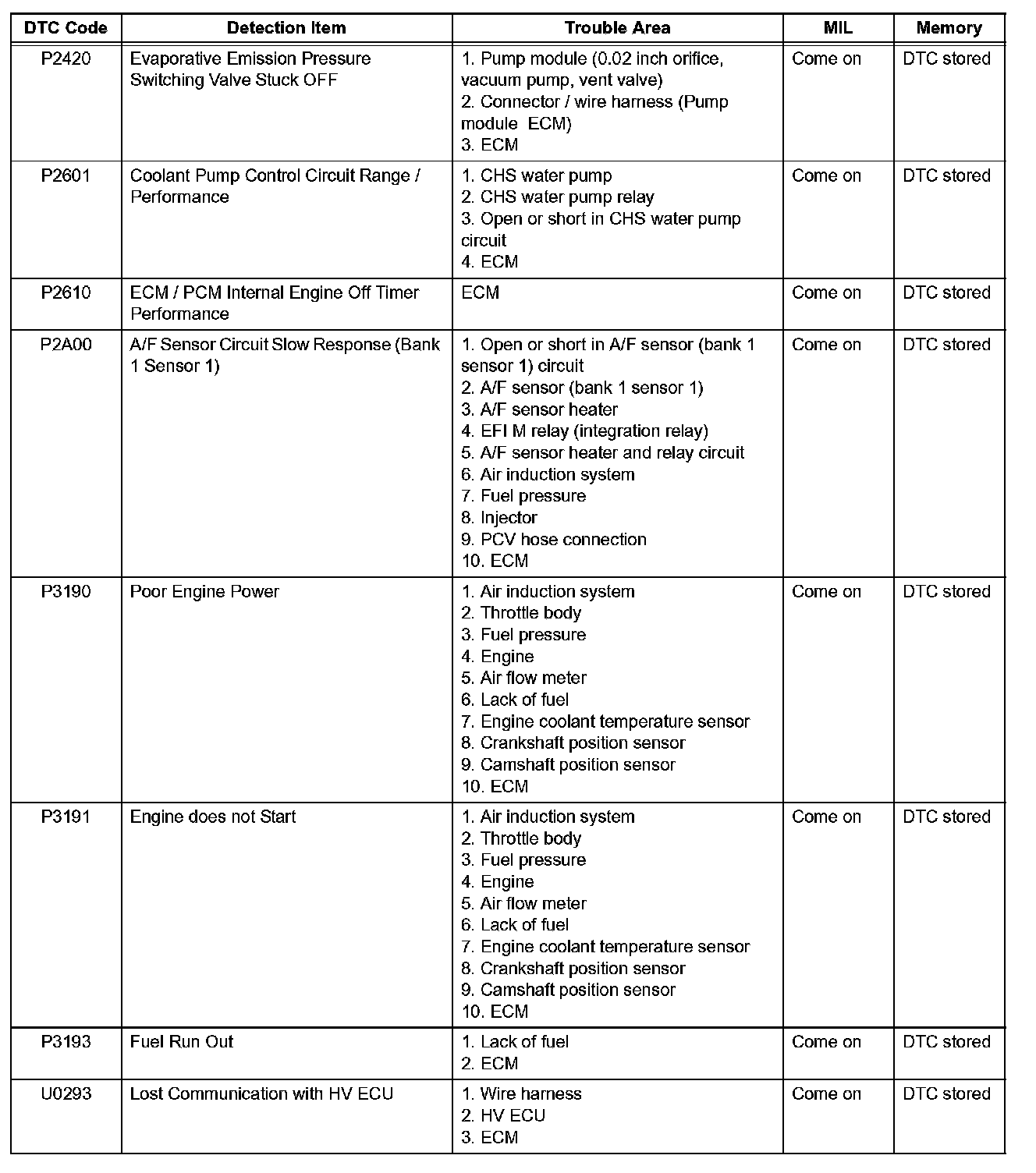

P2420-U0293:
