Electronic Brake Control Module
>>
Testing and Inspection
>>
ABS W/EBD System (Denso Made)
ABS W/EBD System (Denso Made)

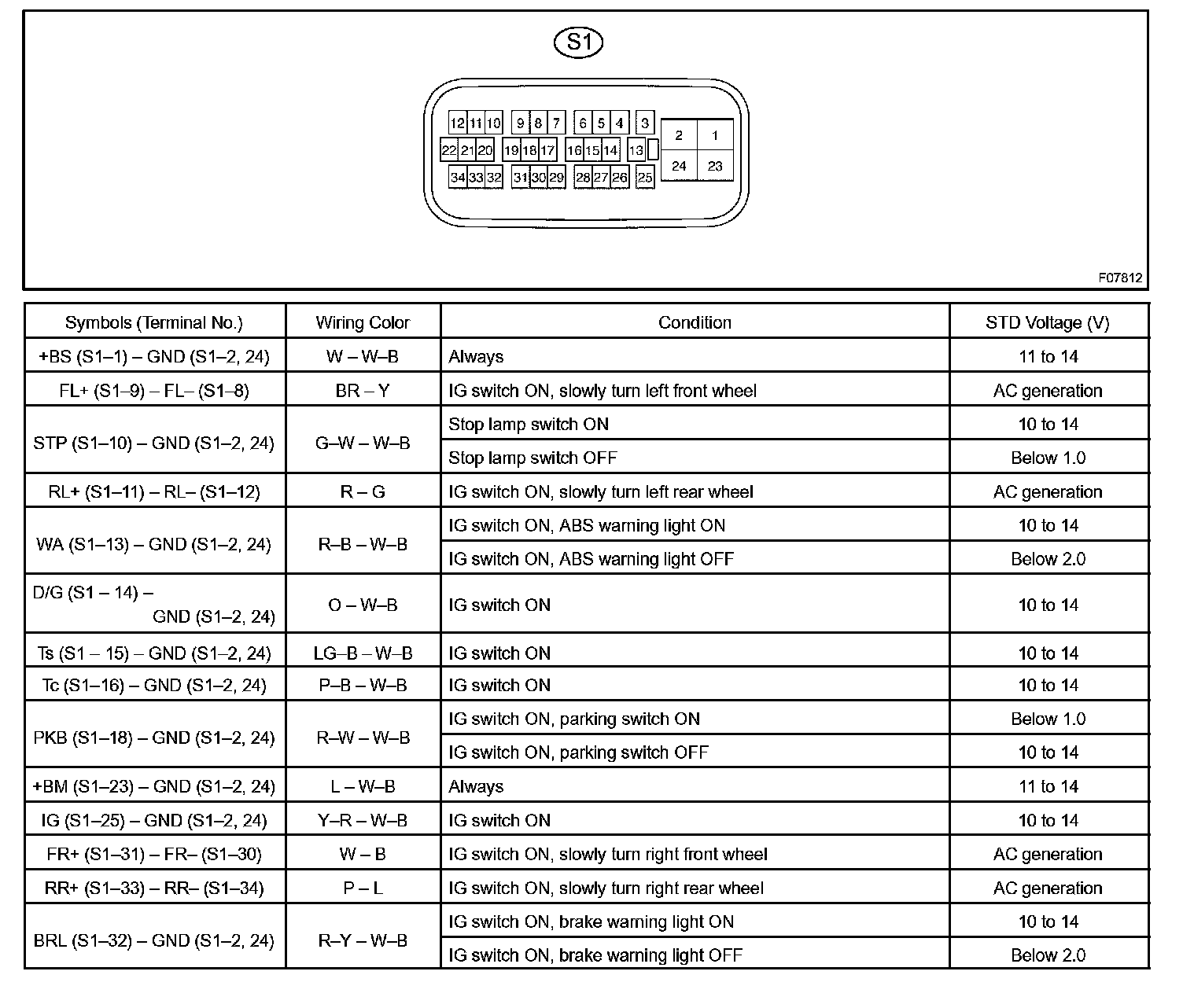

Terminals Of Control Module / Pinouts:
