Home >> Toyota >> 2005 >> Avalon V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Relays and Modules - Transmission and Drivetrain >> Relays and Modules - A/T >> Shift Interlock Control Module >> Locations

Shift Interlock Control Module: Locations

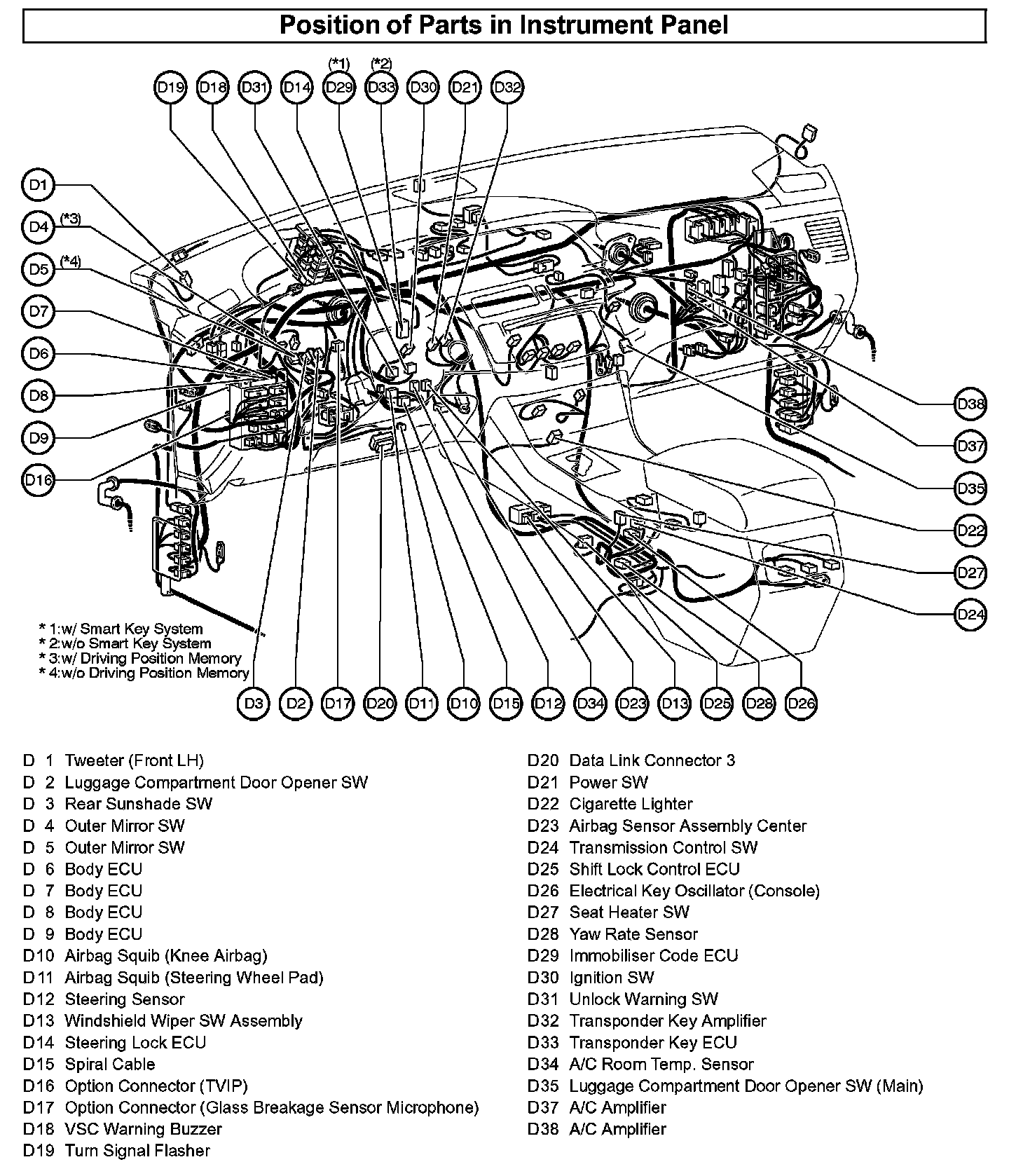

Position of Parts In Instrument Panel:
