Description of On-Board Diagnostics

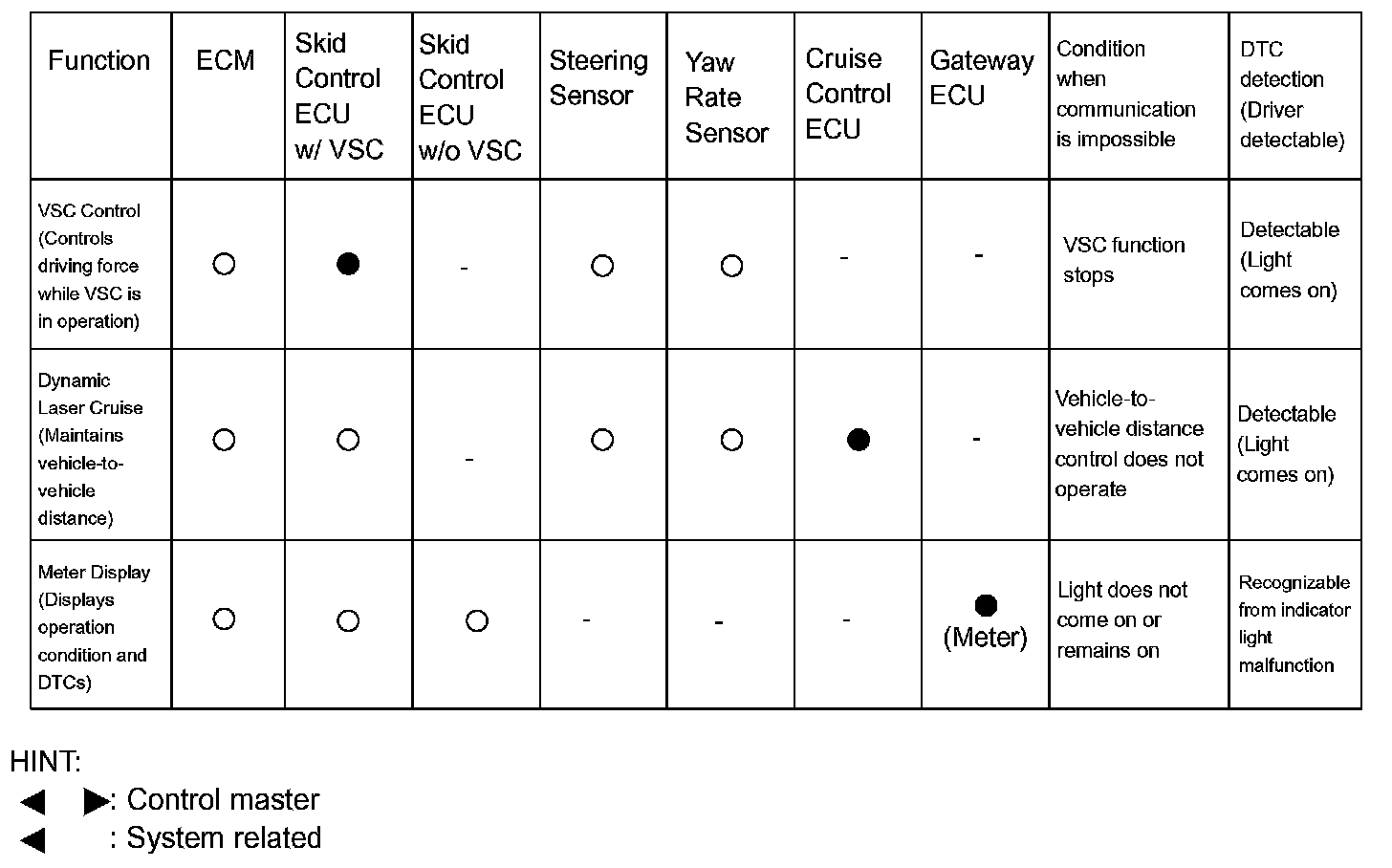

FAIL-SAFE FUNCTIONFail-Safe Chart:
a. When communication fails in any of the CAN bus lines (communication lines) due to a short circuit or other causes, the fail-safe function, which is specified for each system, operates to prevent the system from malfunctioning.
b. It is effective on each system when communication is impossible.
