Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
CAN Communication System
CAN Communication System
CIRCUIT DESCRIPTION
This circuit provides power to operate the gateway ECU.

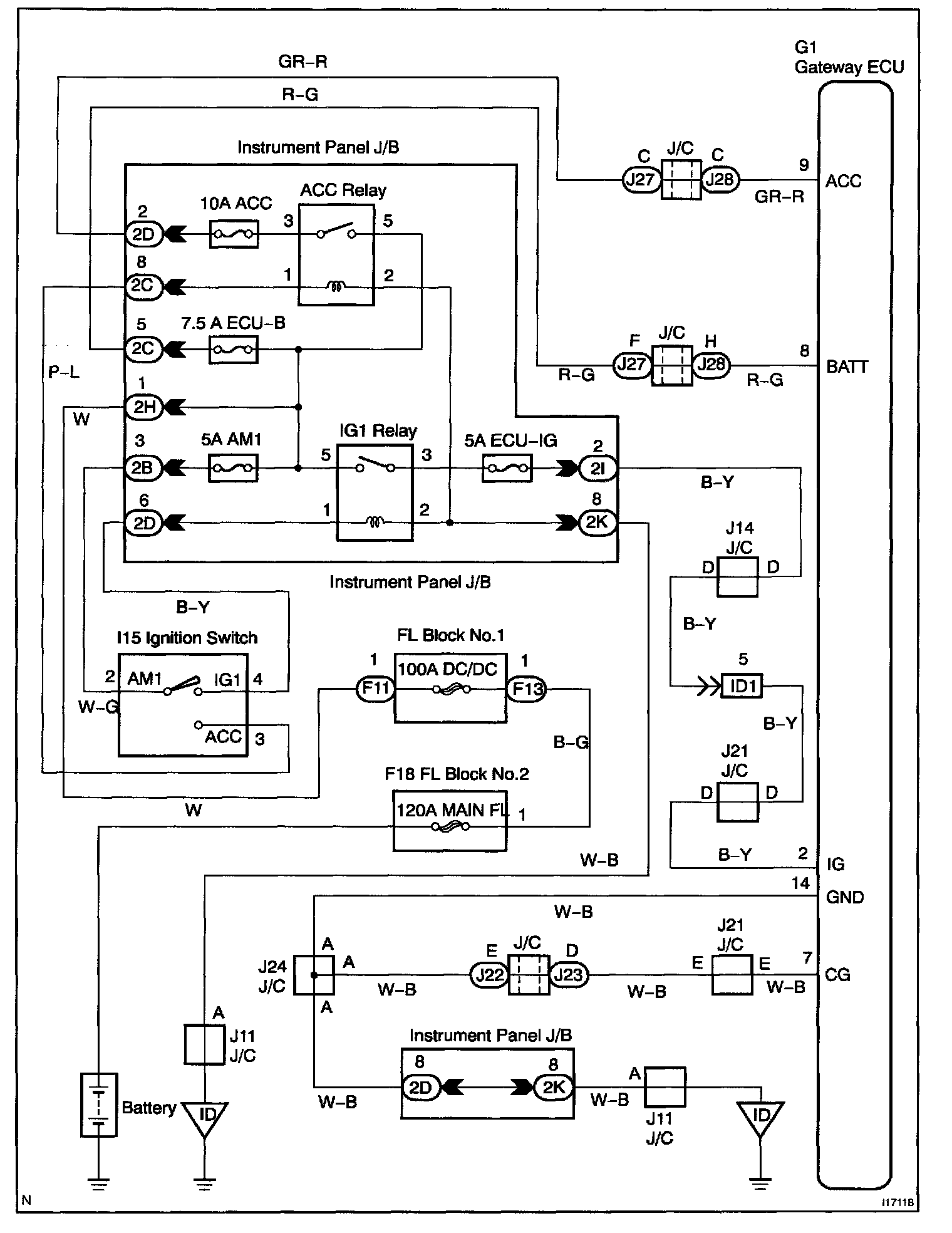

Wiring Diagram:

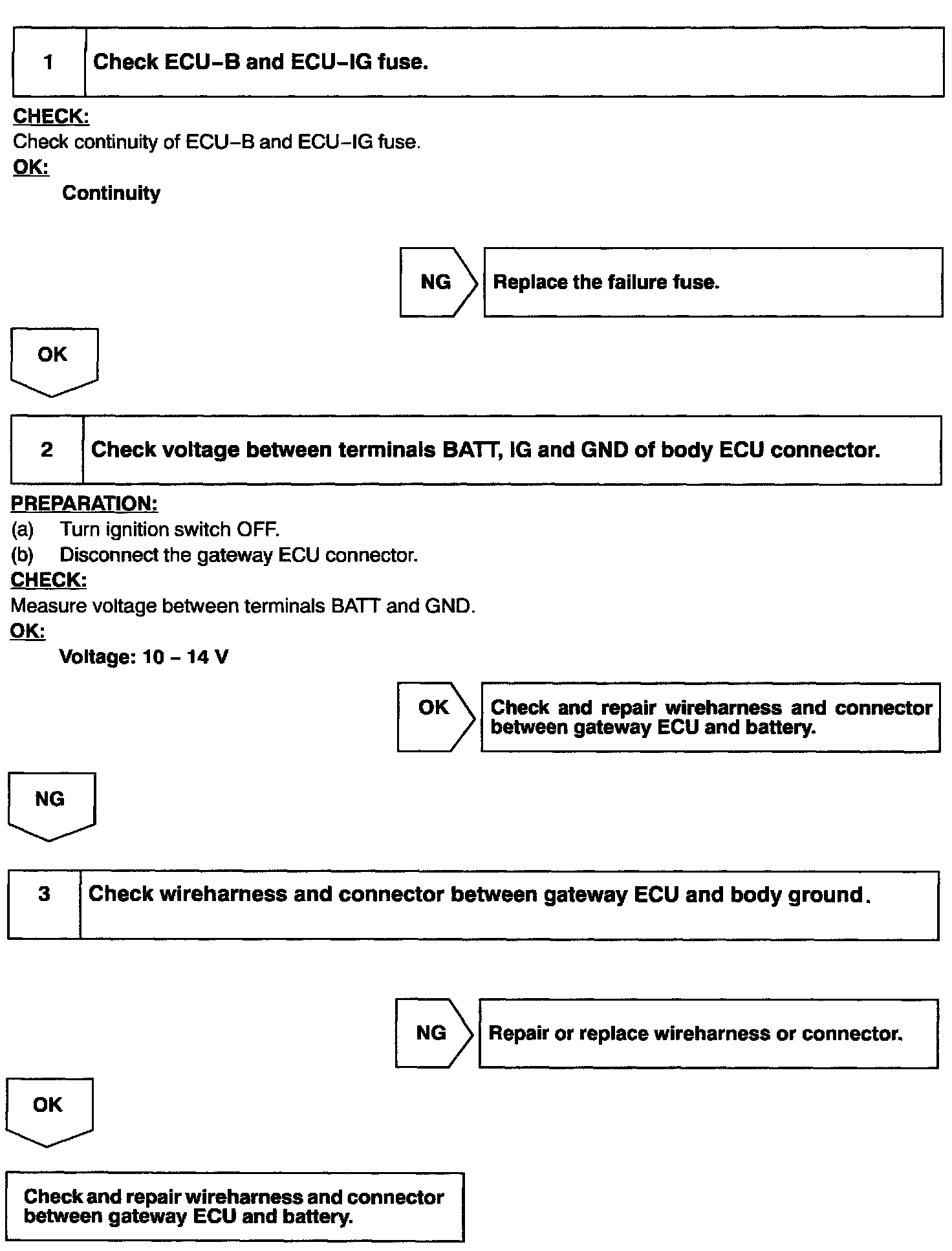

Step 1 - 3:
INSPECTION PROCEDURE
