Electronic Power Steering System

DIAGNOSTIC TROUBLE CODE CHART

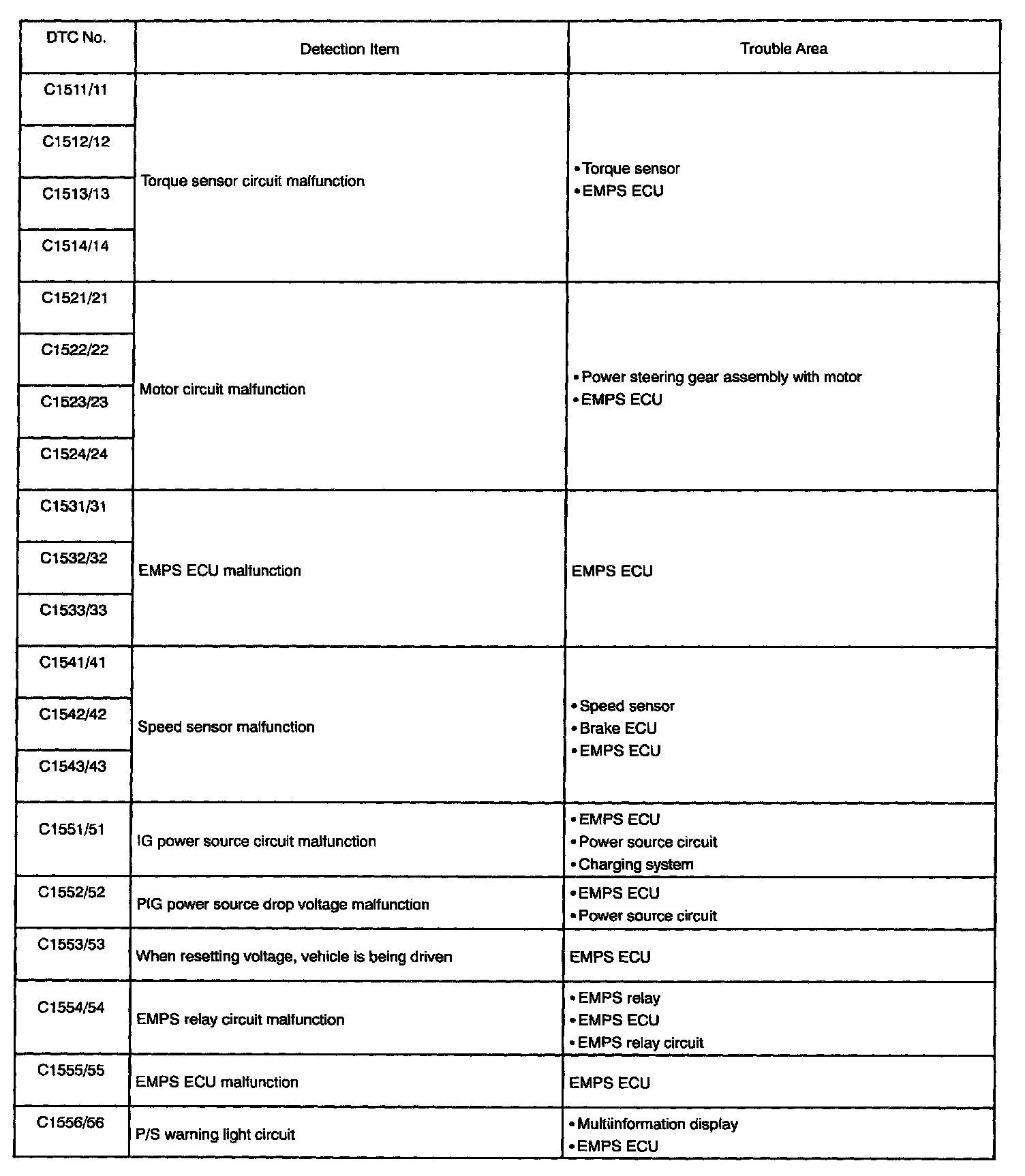

C1511 - C1556:

C1557 - C1559:

HINT:
- Using SST 09843-18040, connect terminals Tc and CG of the DLC3.
- If a malfunction code is displayed during the DTC check, check the circuit listed for the code. For details of each code, refer to Trouble Code Descriptions for respective "DTC No." in the DTC chart.

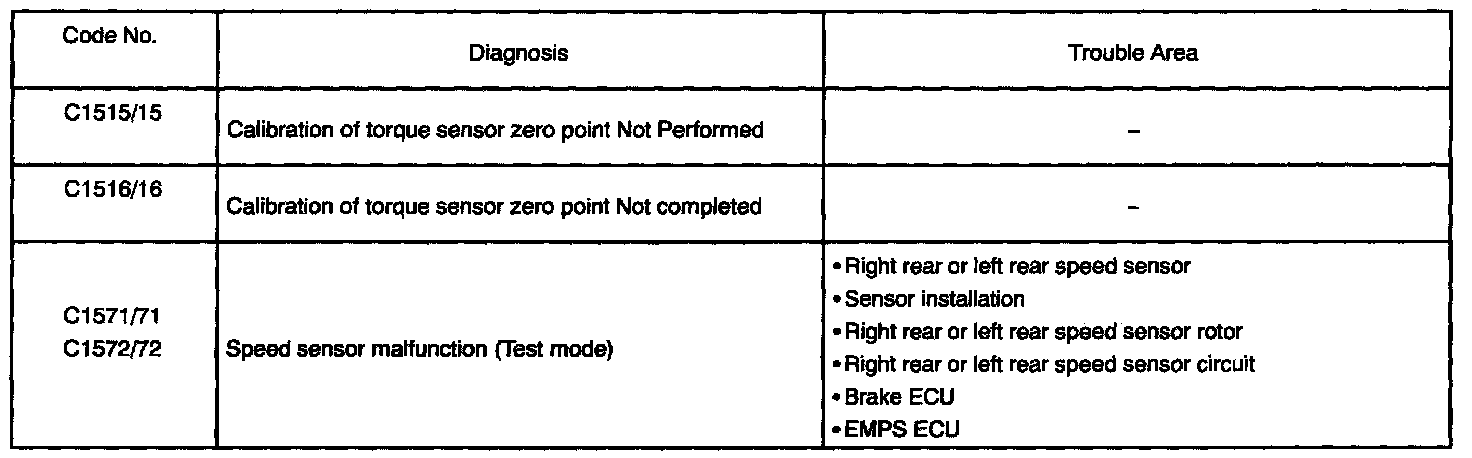

C1515 - C1572:

DTC Of Input Signal Check Function
