Toyota
>>
2003
>>
Celica GT L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Cylinder Block Assembly
Cylinder Block Assembly

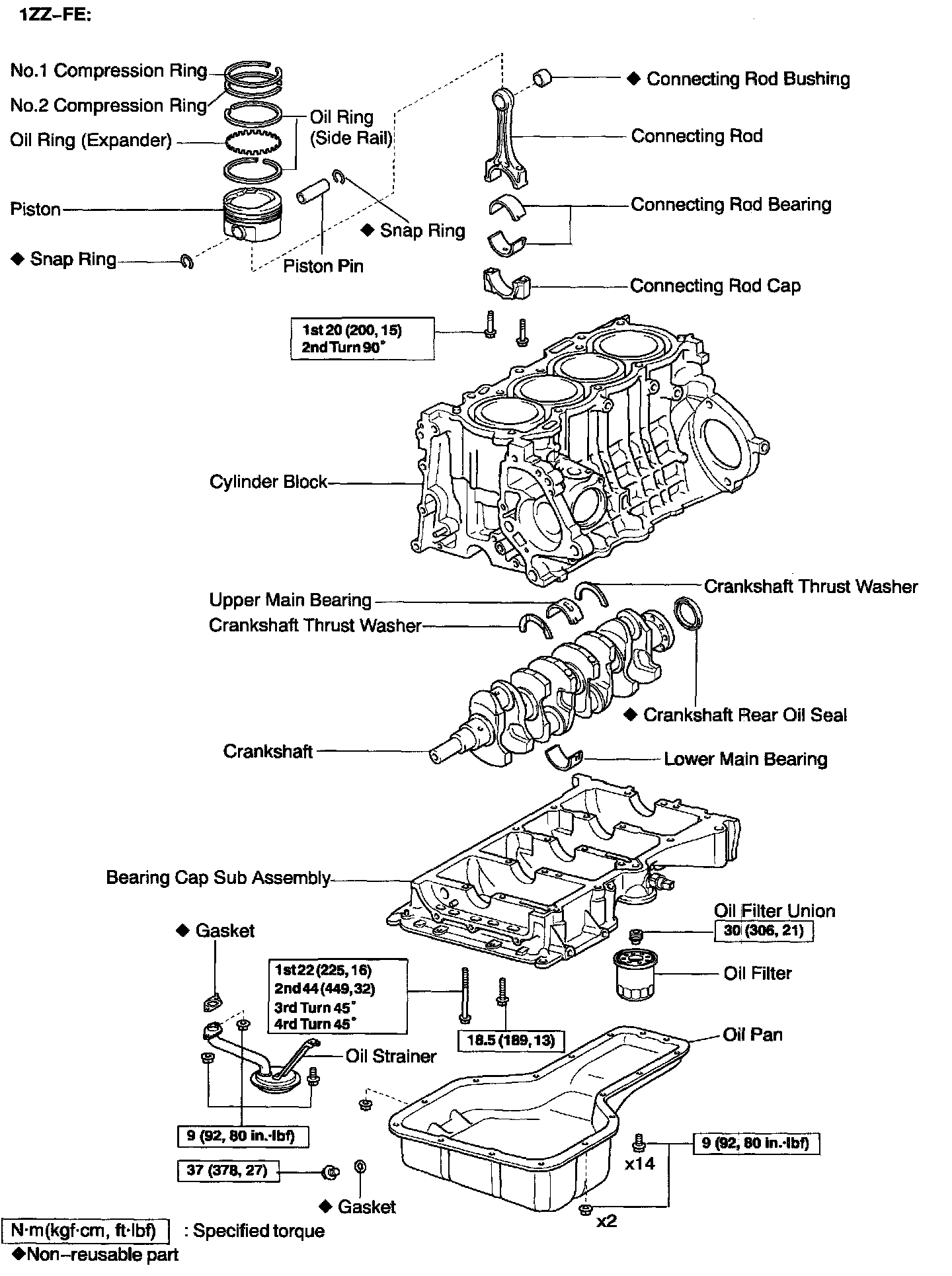

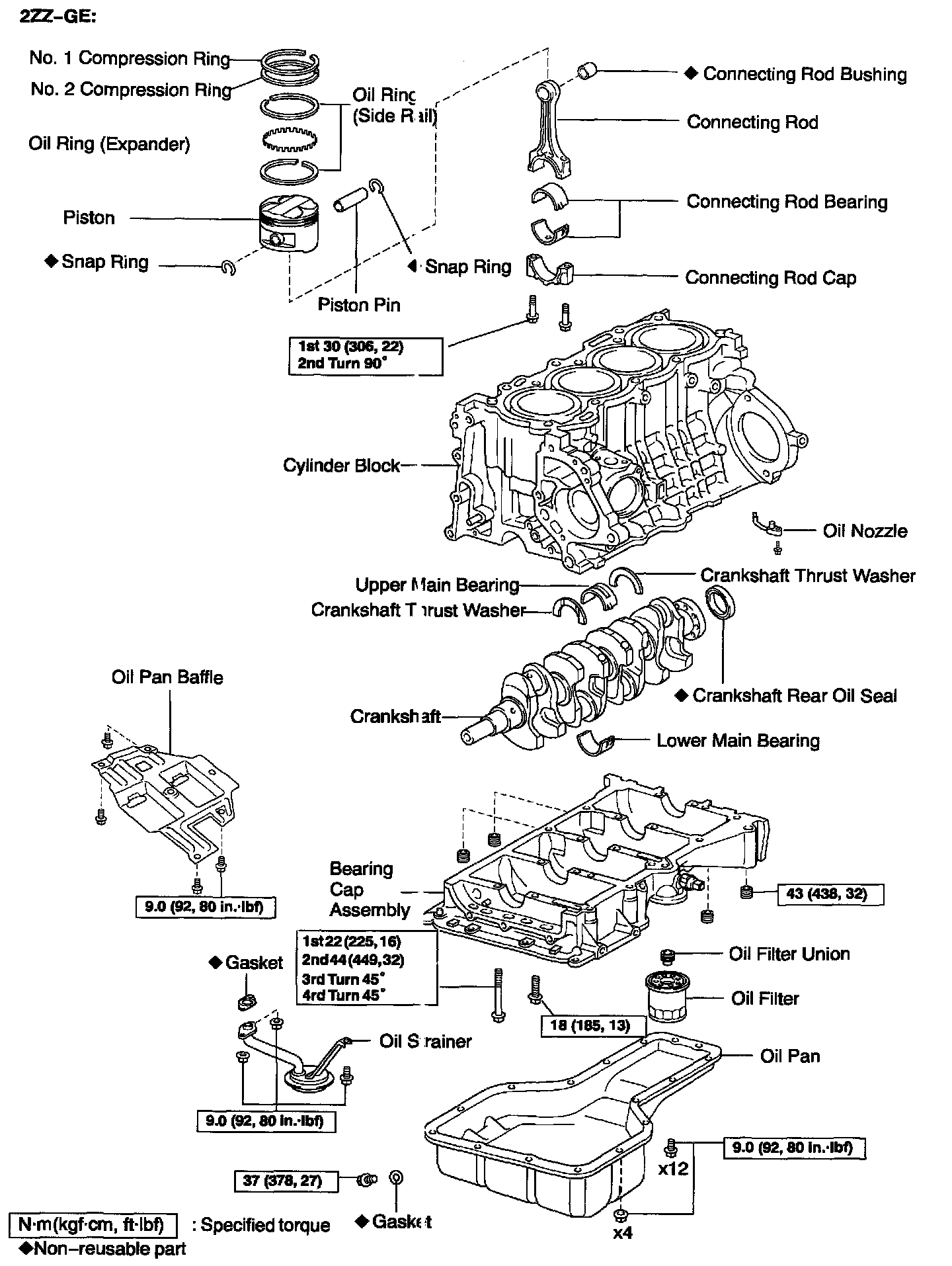

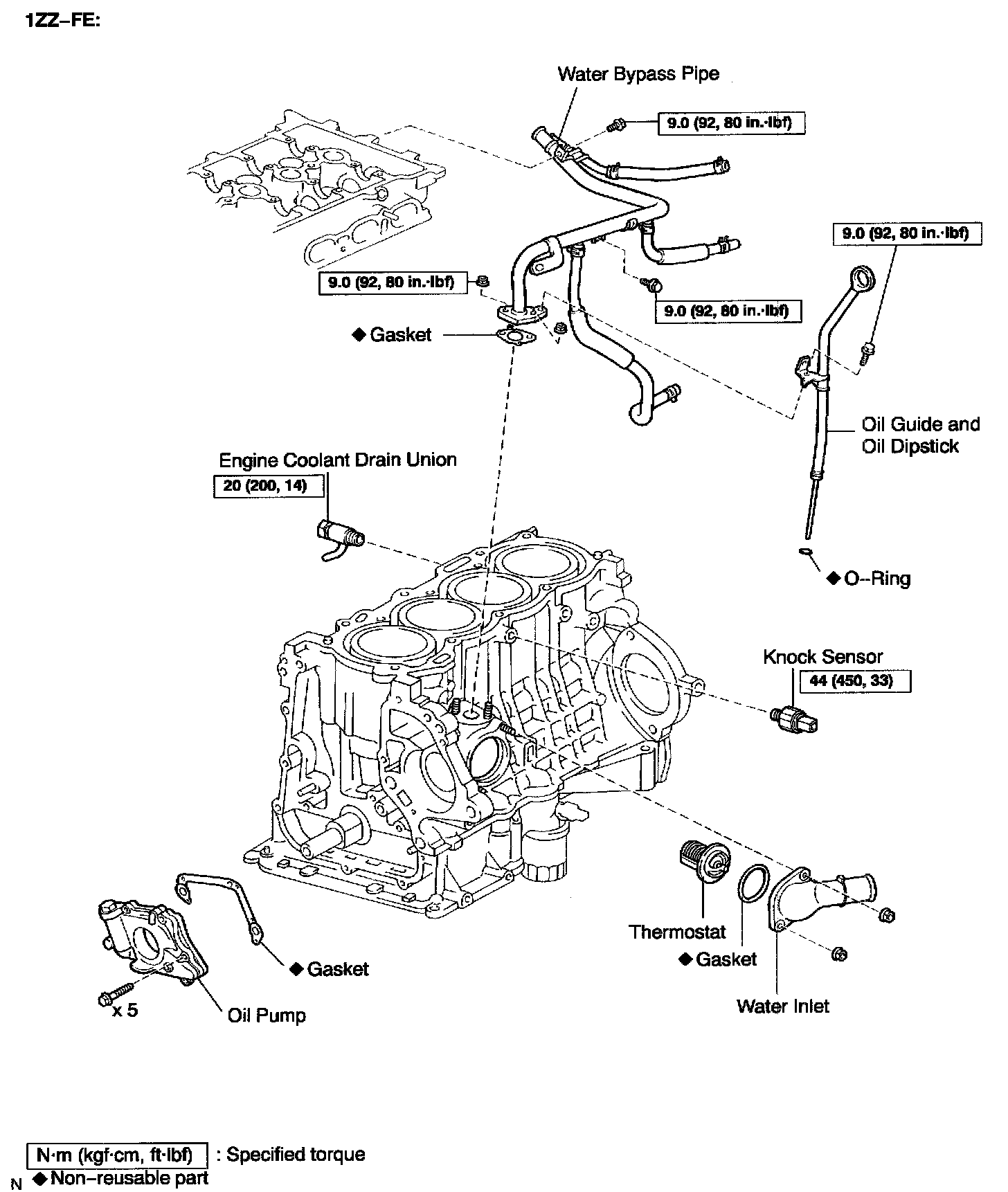

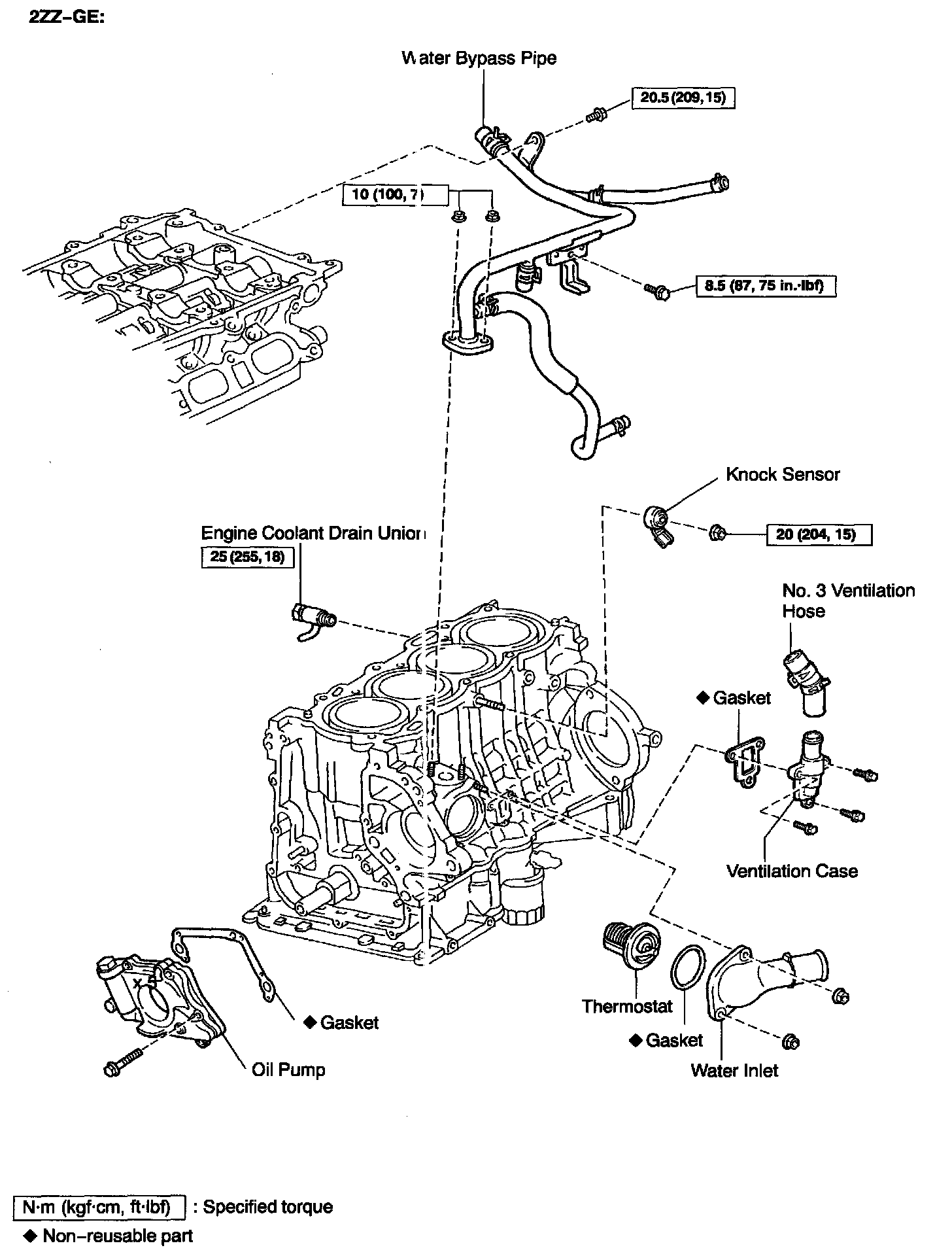

CYLINDER BLOCK OVERHAUL W/ RELATED COMPONENTS
