Variable Induction Check Valve
Variable Induction Check Valve

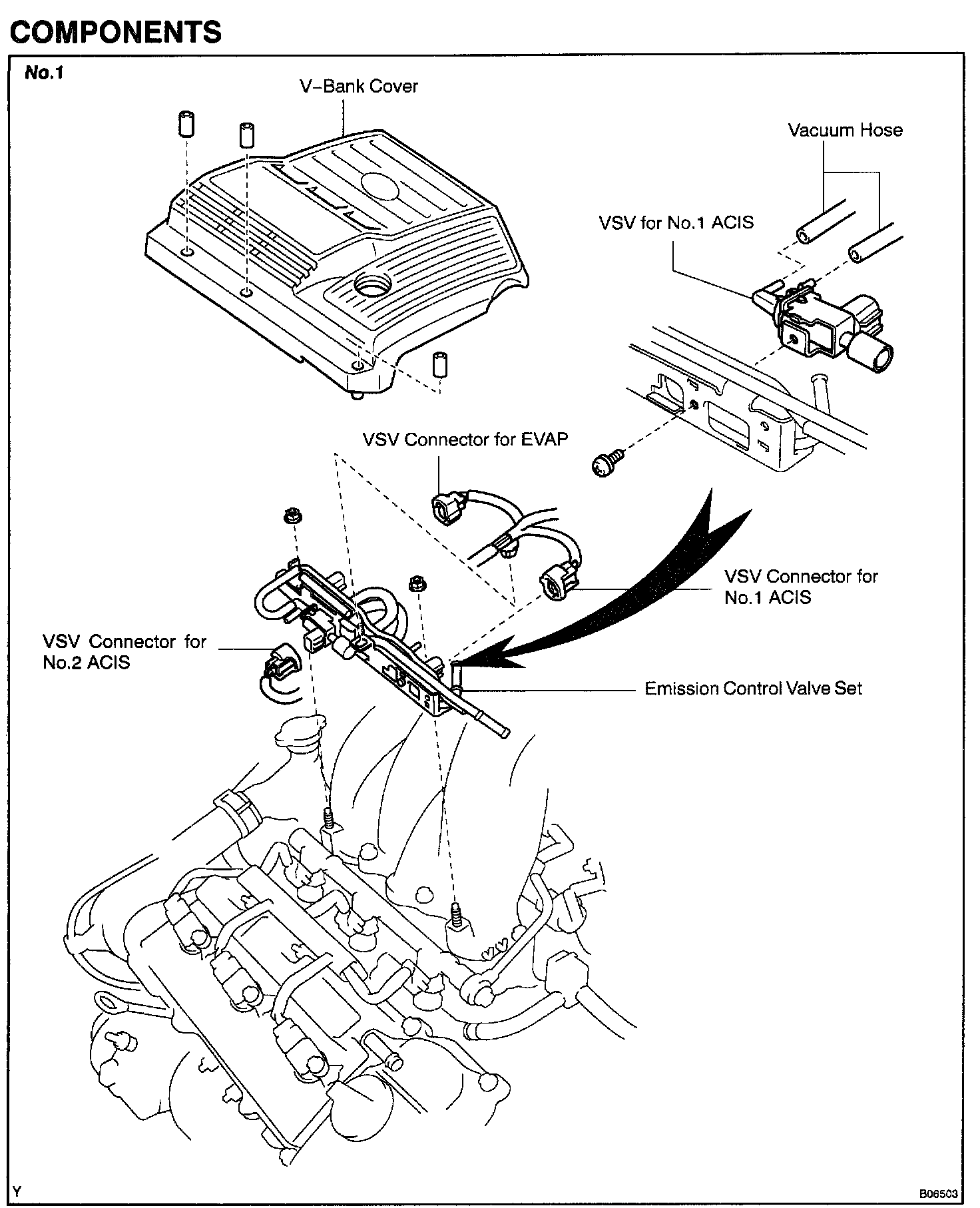

VSV For Acoustic Control Induction System (ACIS) Part 1:

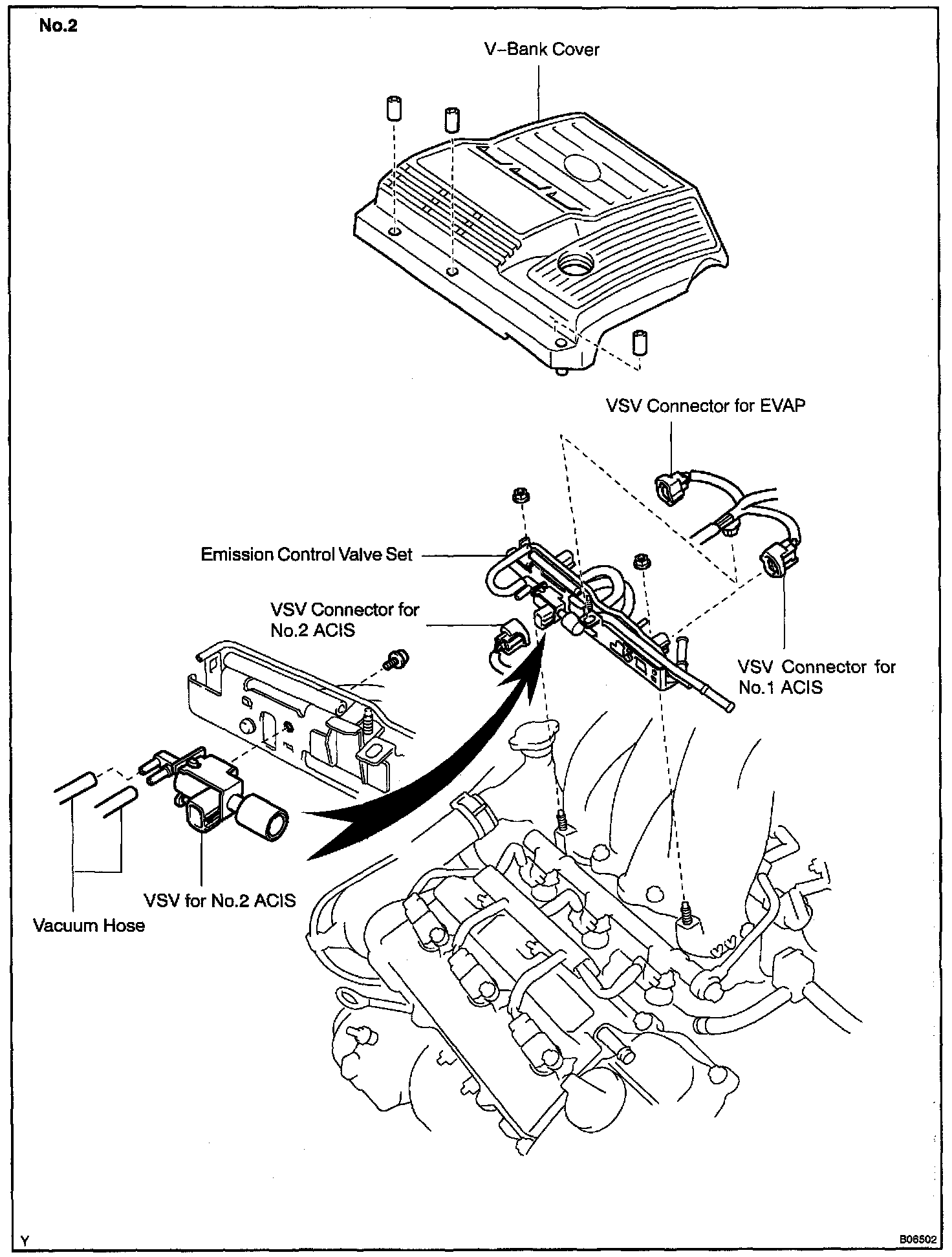

VSV For Acoustic Control Induction System (ACIS) Part 2:
