Corolla LE Sedan L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Oil Pump, Engine
Oil Pump, Engine

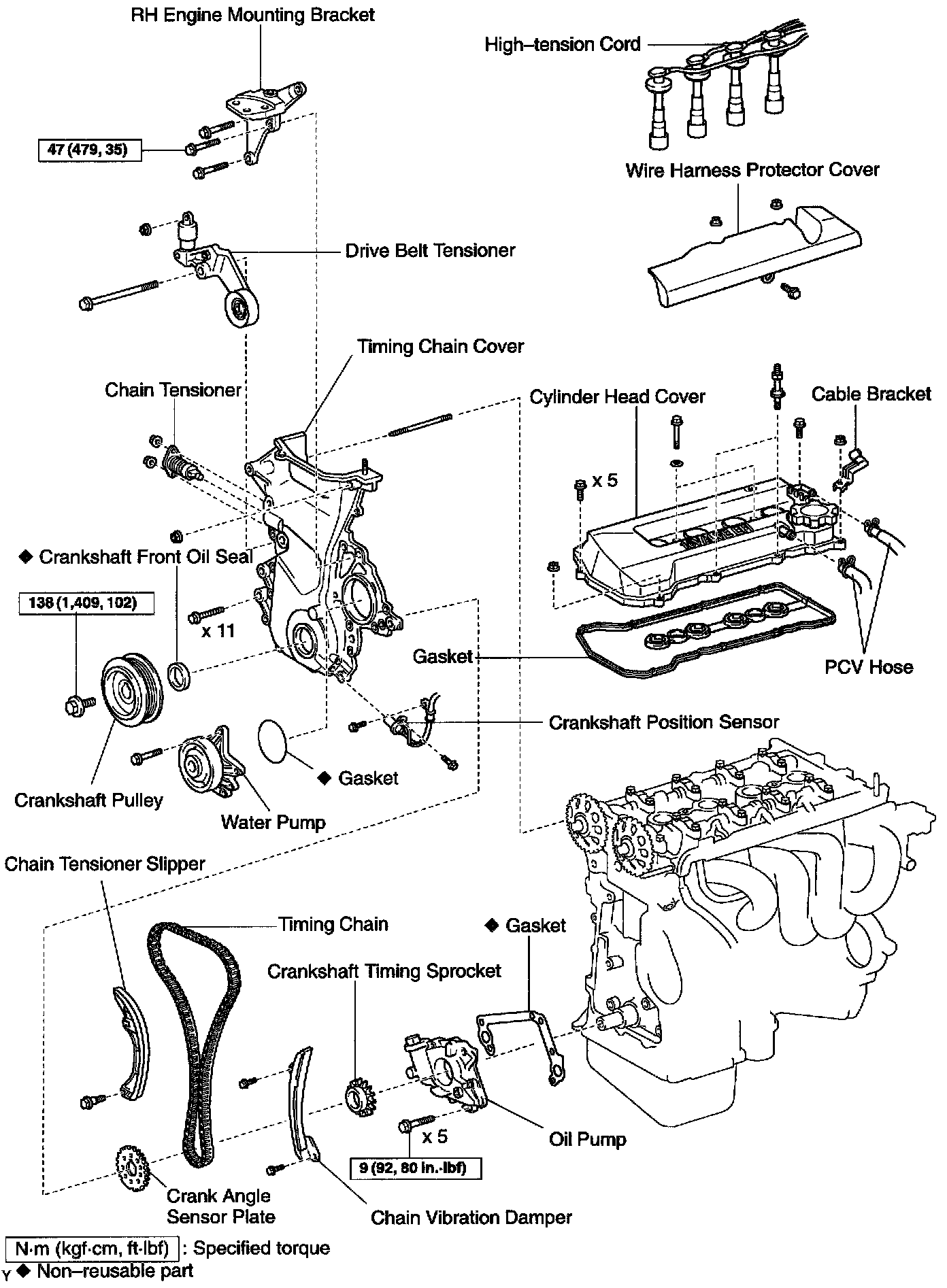

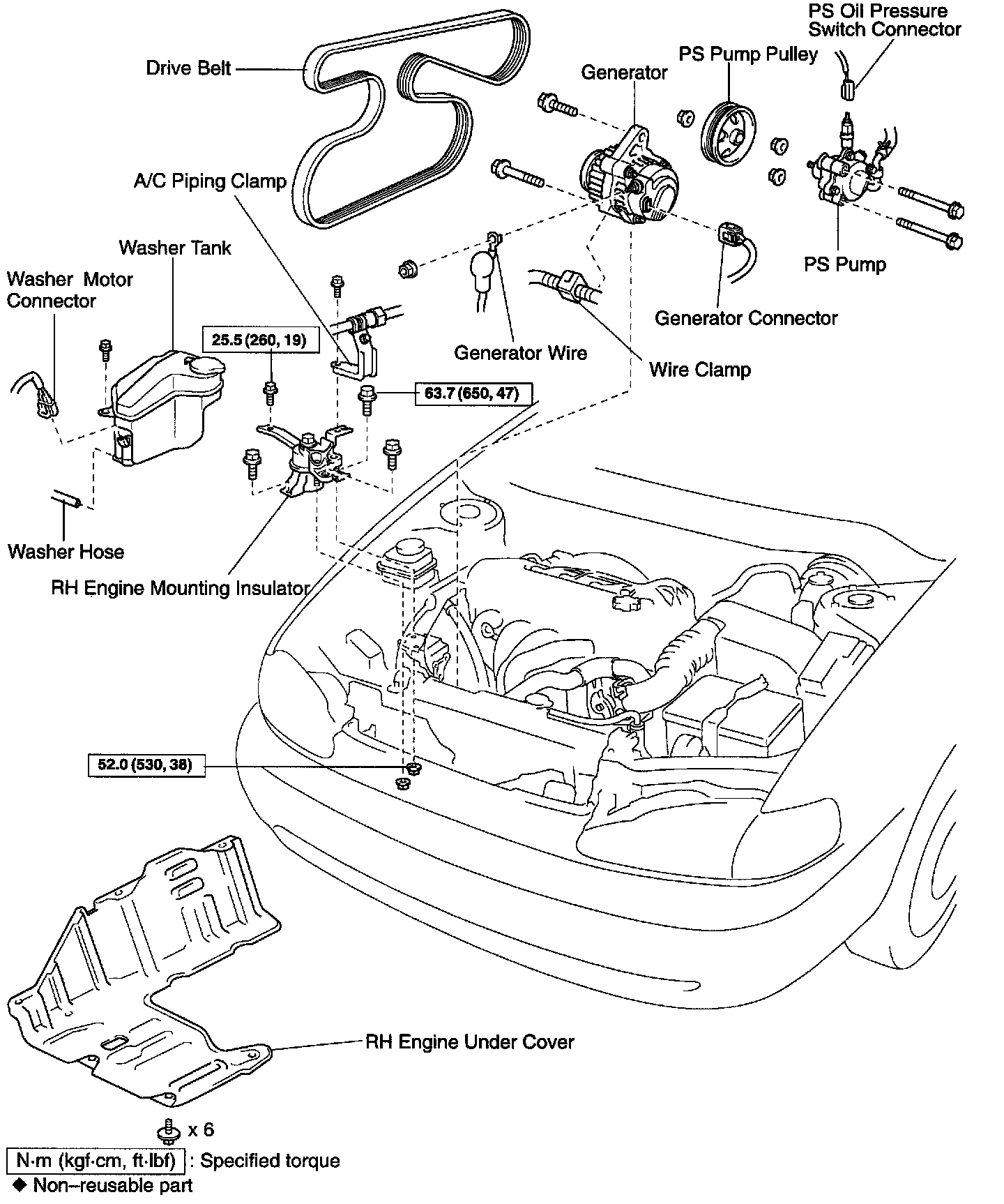

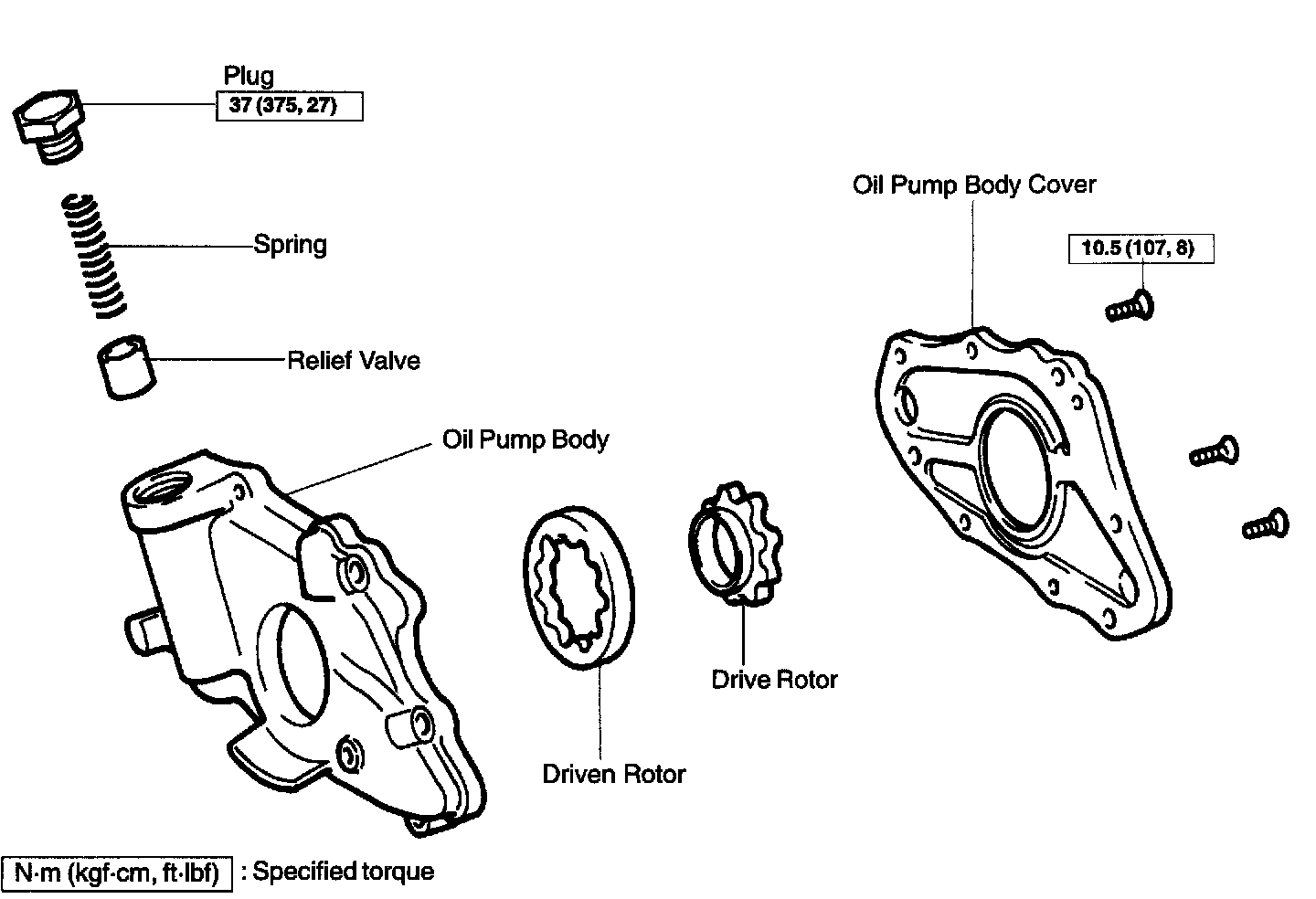

OIL PUMP REPLACEMENT W/ RELATED COMPONENTS
