Camry XLE Sedan L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>

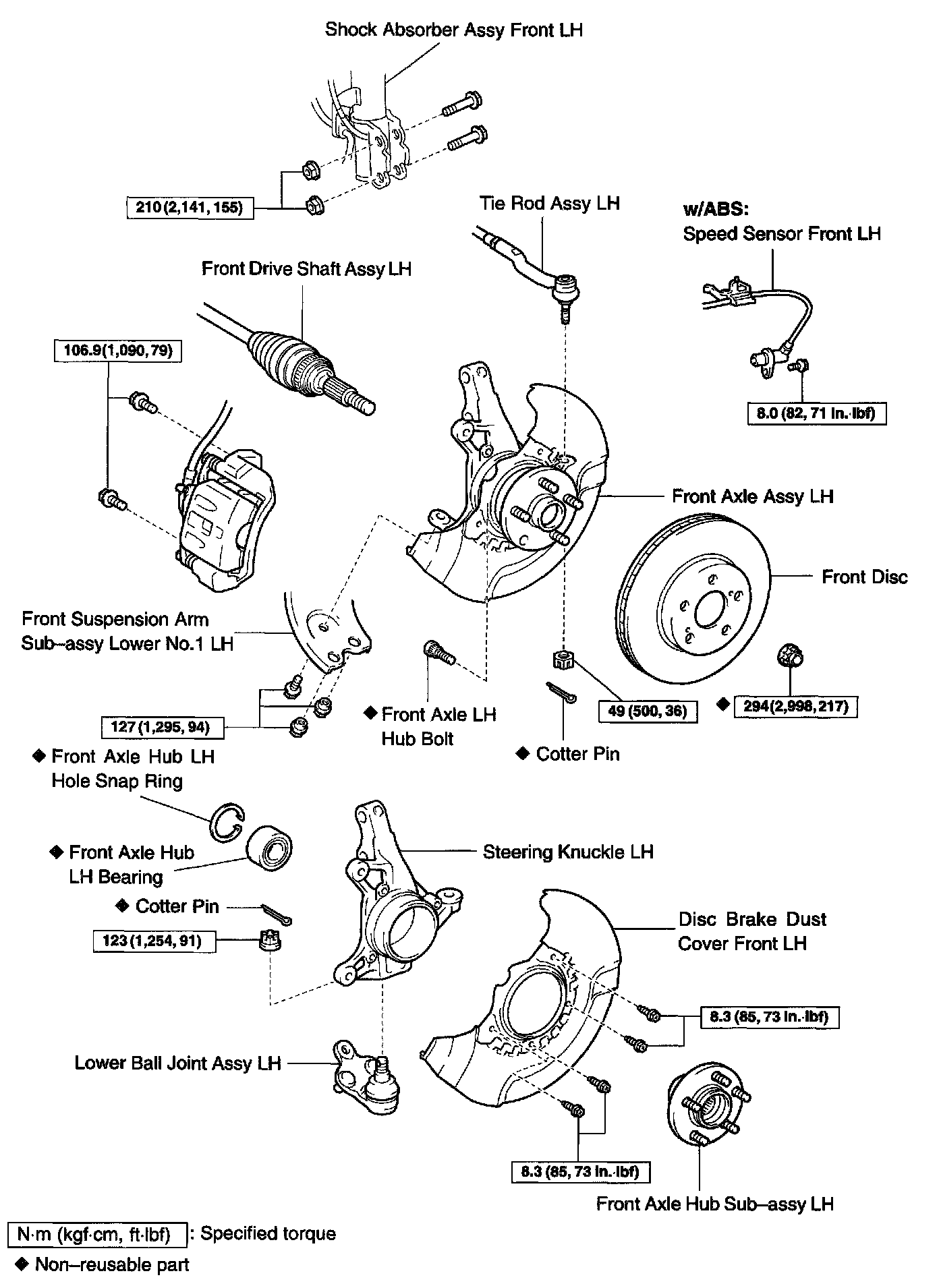

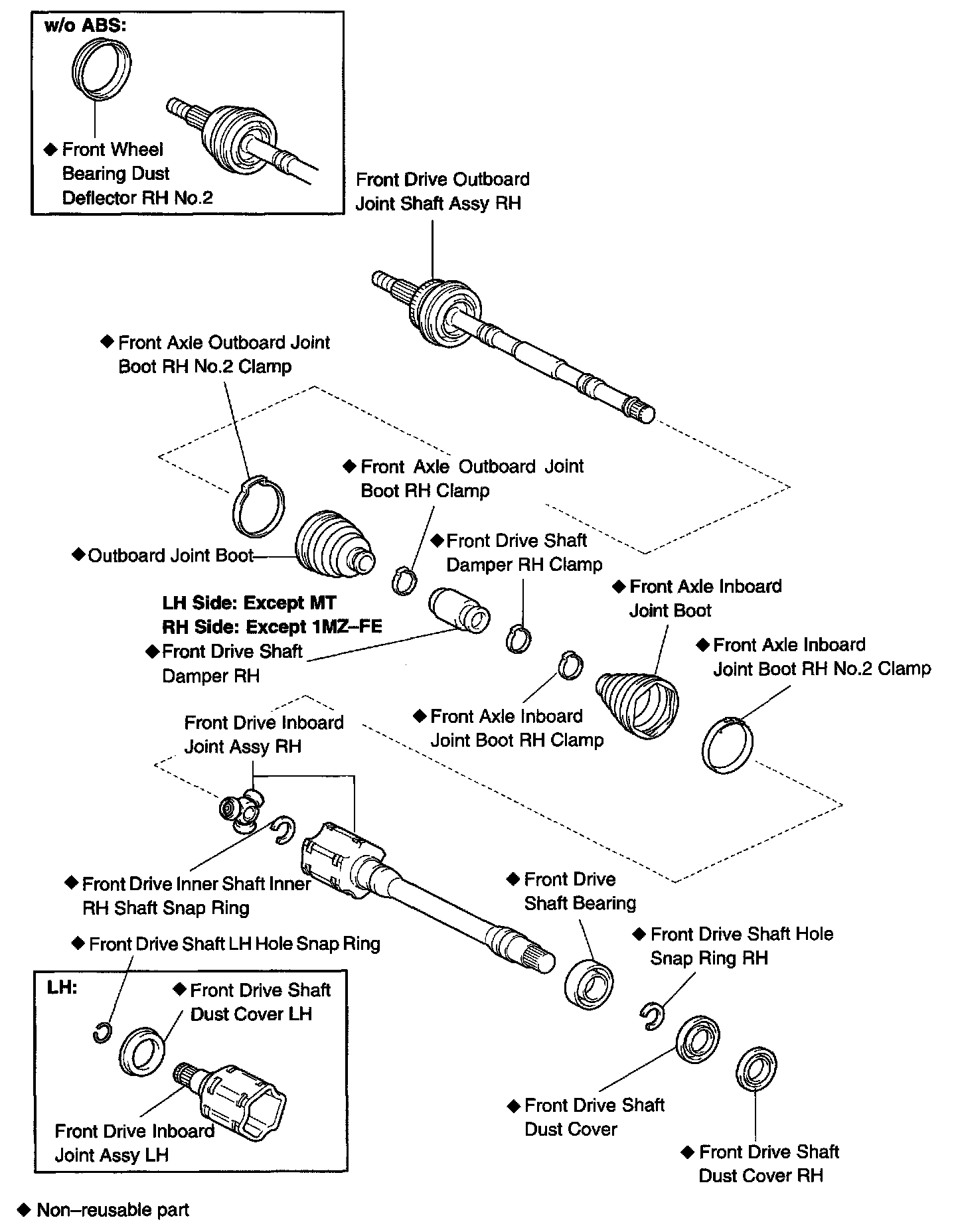

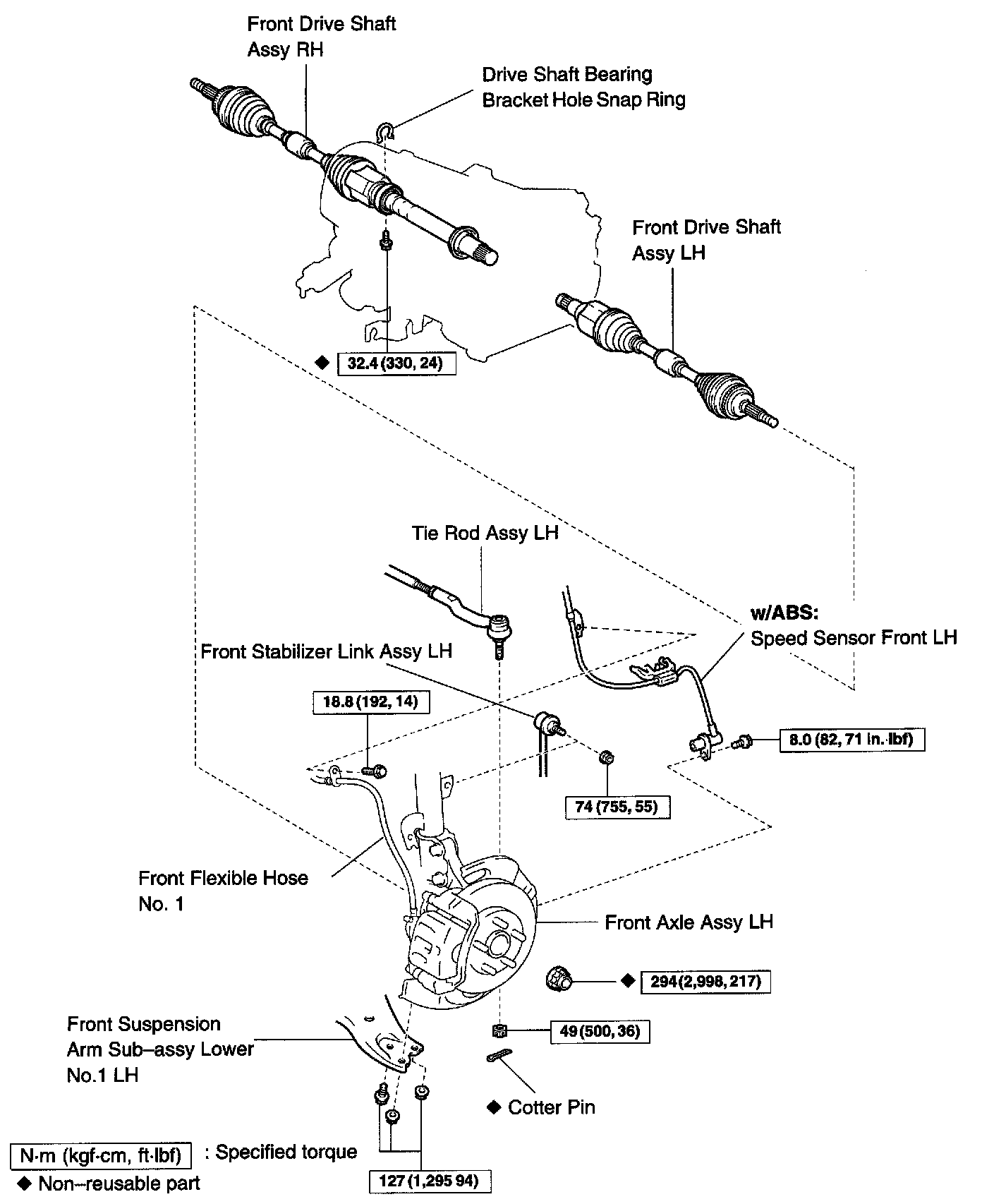

Exploded Views
>>
Axle Shaft Assembly
Axle Shaft Assembly
DRIVE SHAFT/PROPELLER SHAFT/AXLE
