TS Terminal Circuit

CIRCUIT DESCRIPTION
The sensor check circuit detects abnormalities in the speed sensor signal which cannot be detected by the DTC check.

Connecting terminals Ts(14) and CG(4) of the DLC3 starts the check.

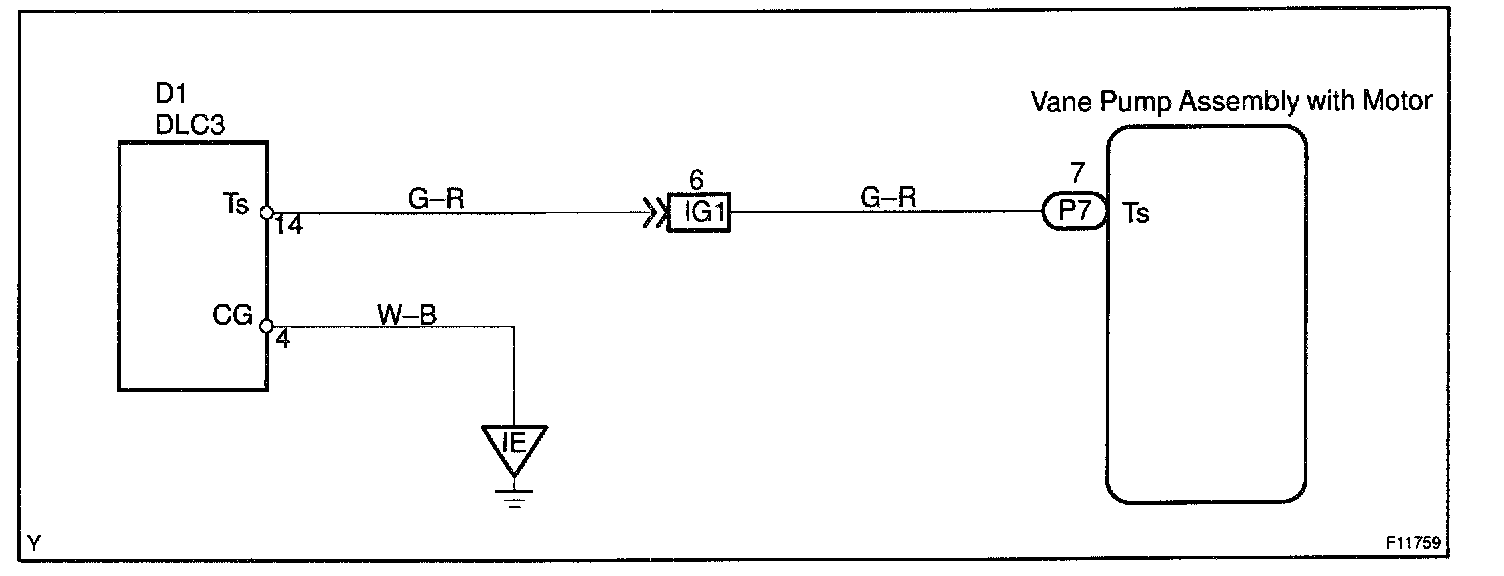

WIRING DIAGRAM

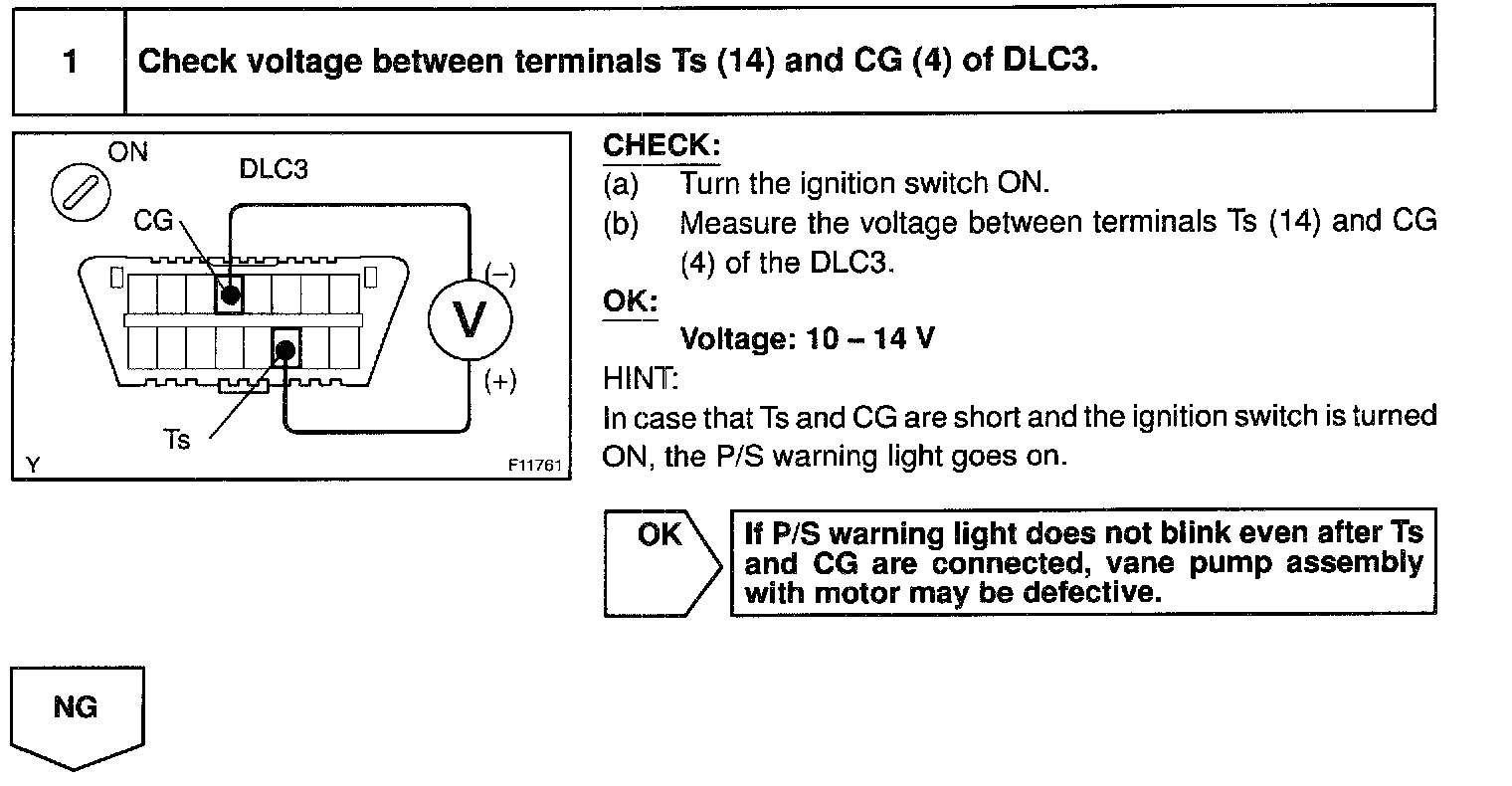

Step 1:

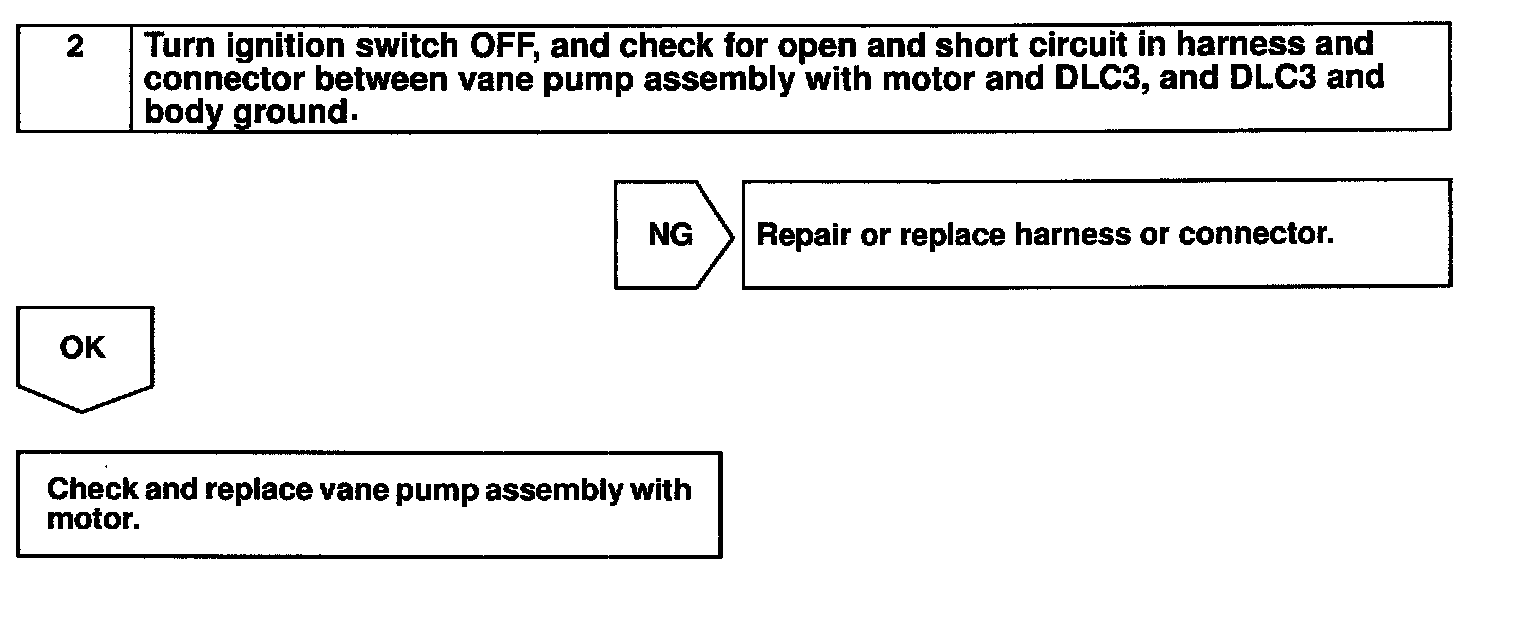

Step 2:

INSPECTION PROCEDURE
