Celica GT L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>

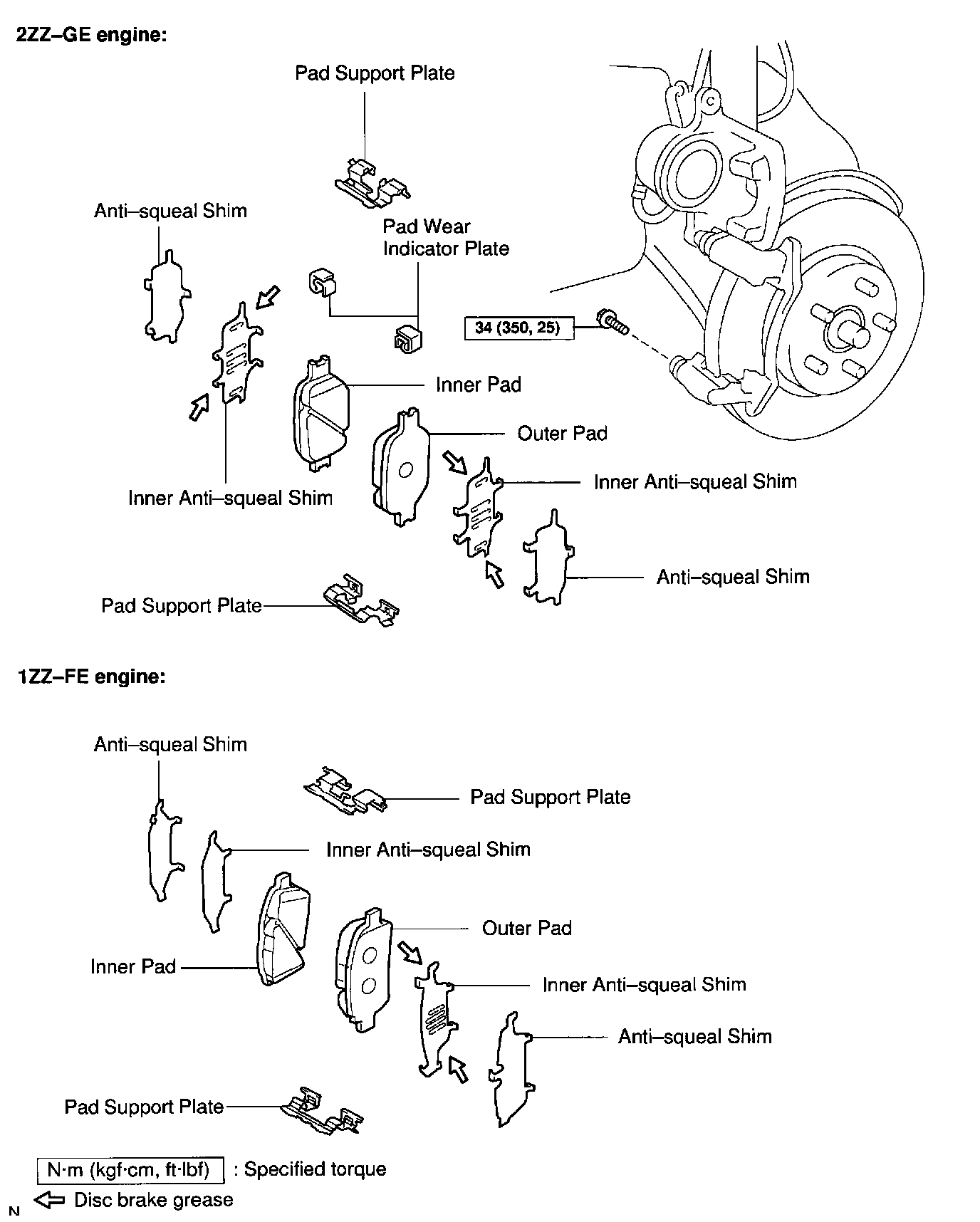

Exploded Views
>>
Disc Brake System
>>
Front
Front

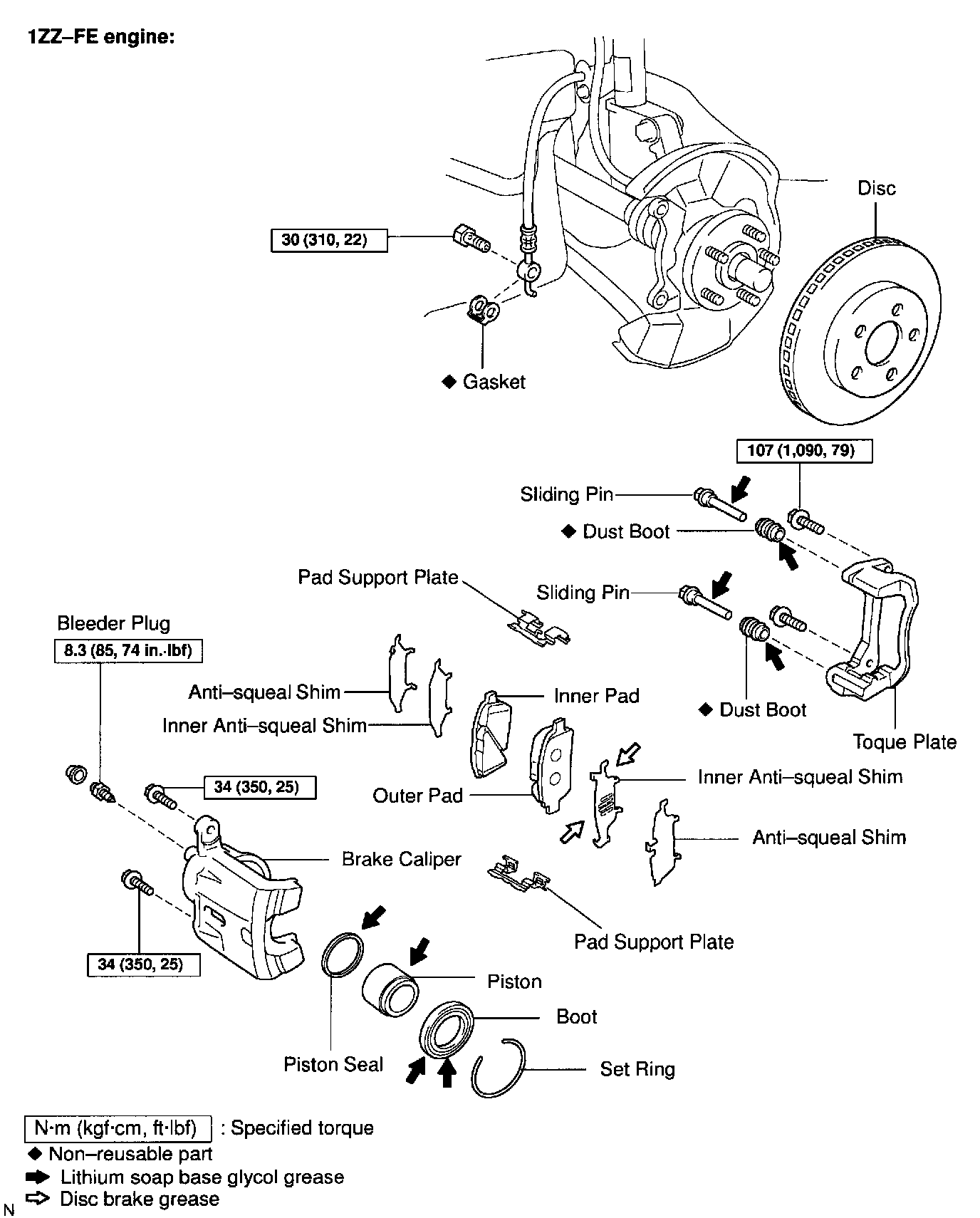

With 1ZZ-FE Engine:
