System Diagram

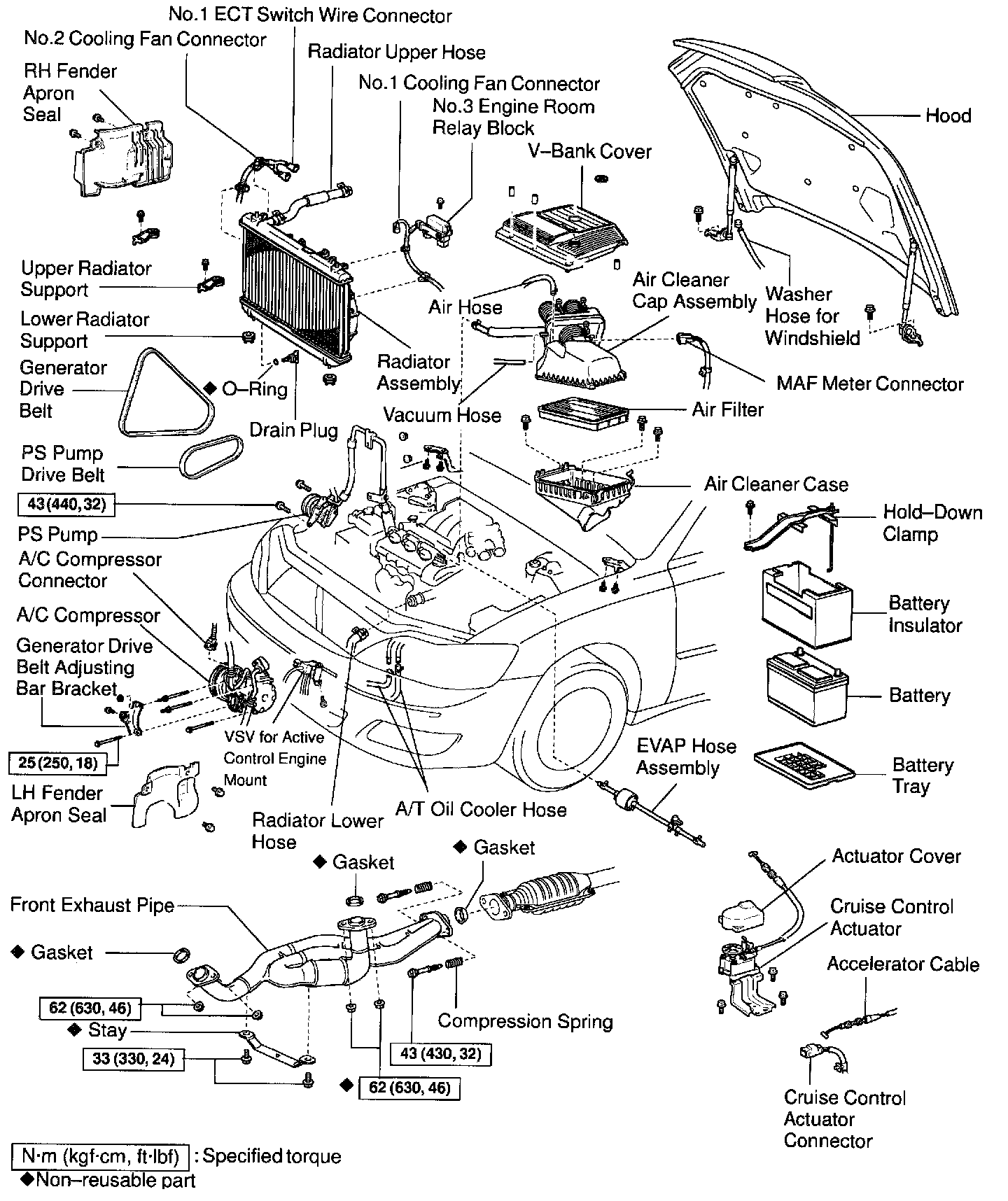

Engine Compartment Accessory Components:

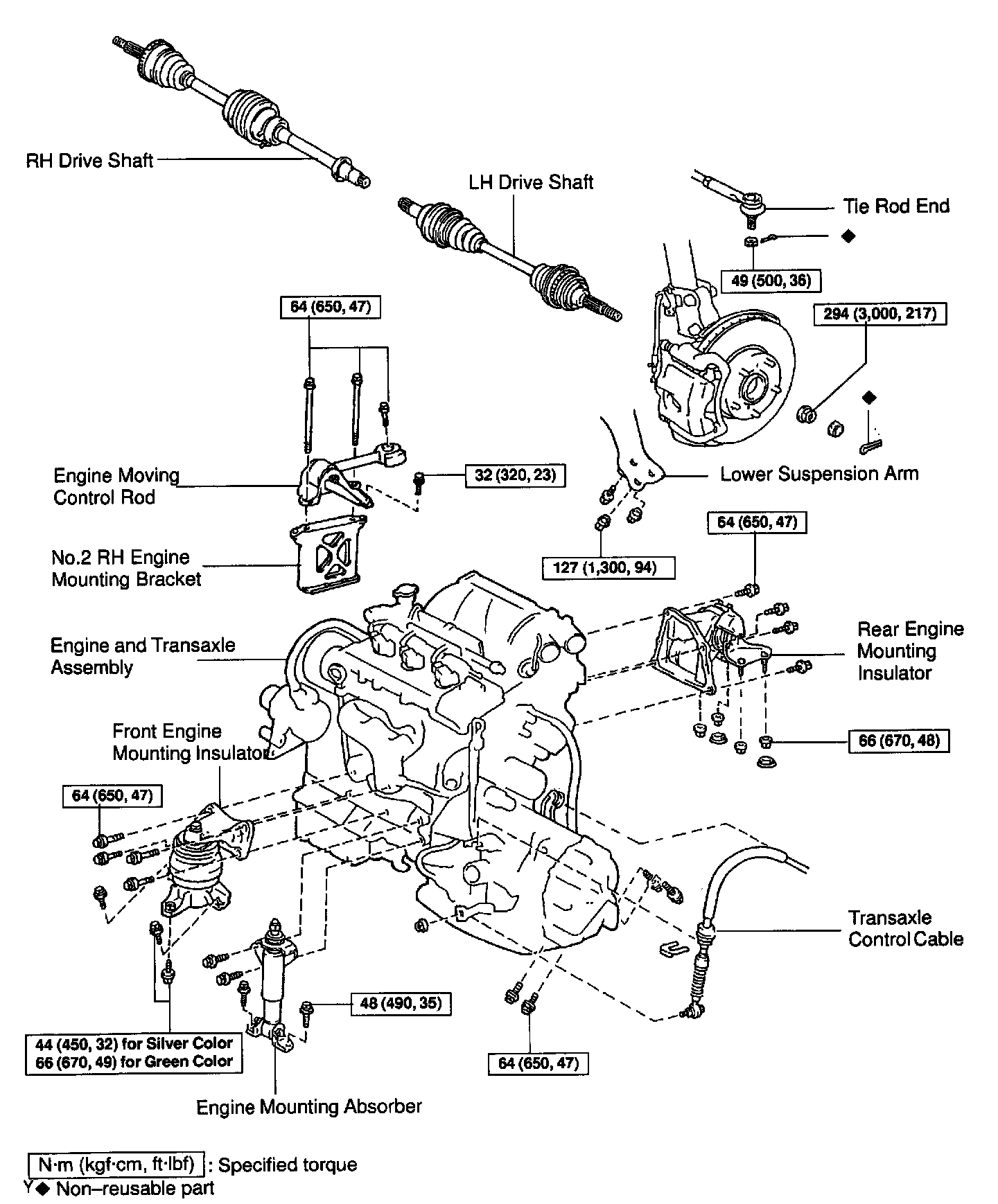

Engine Mounts And Various Components:






ENGINE UNIT COMPONENTS
