Electronic Control Circuit Diagram
Electronic Control Circuit Diagram

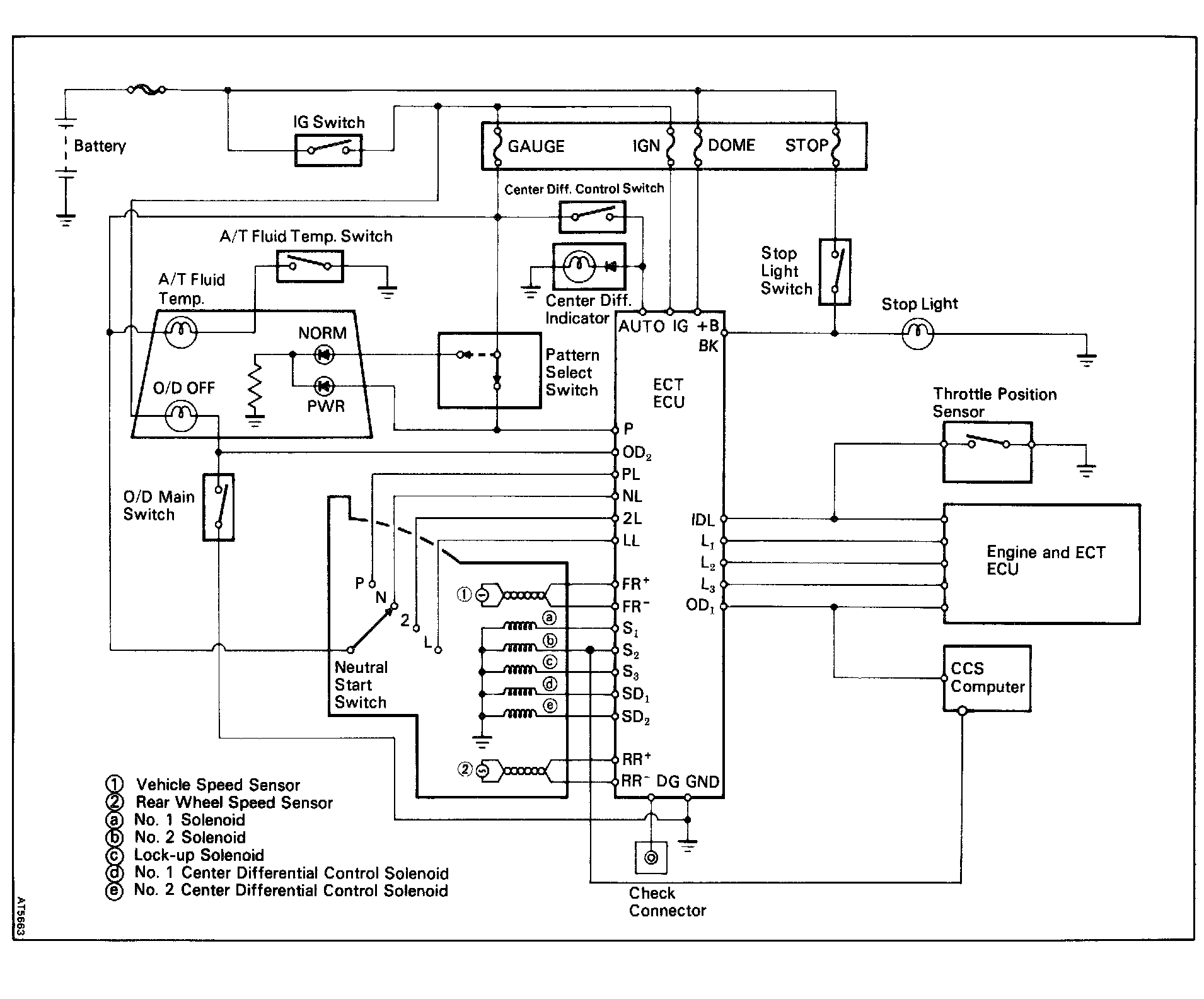

Electronic Control Circuit (A540H):
