Celica L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Engine Control Module
Engine Control Module

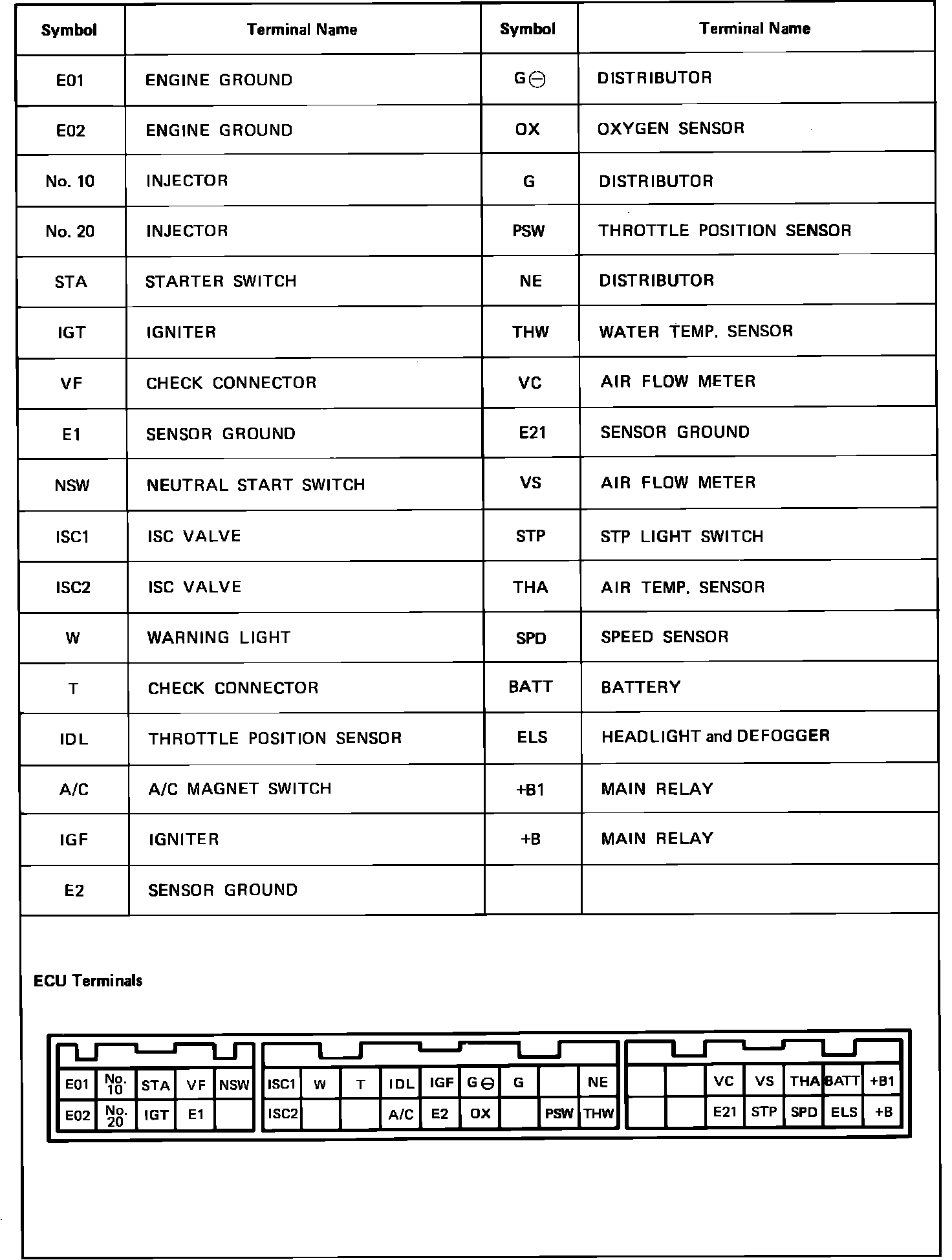

Fig. 165 ECU Connector ID.:
