Toyota Truck
>>
2012
>>
Highlander 2WD L4-2.7L (1AR-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Locations
>>

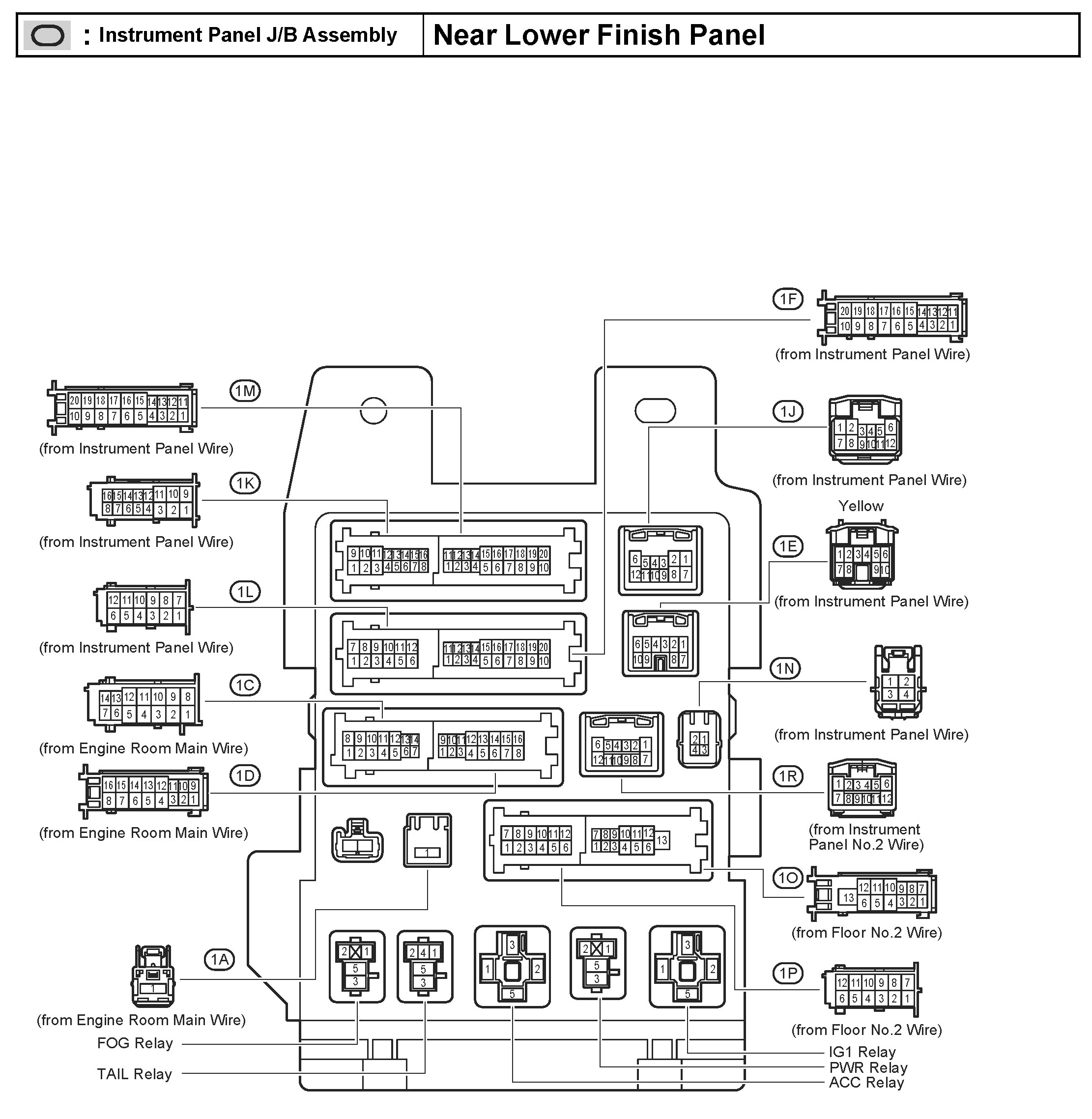

30 - Instrument Panel J/B Assembly - Near Lower Finish Panel
30 - Instrument Panel J/B Assembly - Near Lower Finish Panel
30 - Instrument Panel J/B Assembly - Near Lower Finish Panel:
