Removal

3UR-FE CHARGING: GENERATOR:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
- Some systems need to be initialized after the cable is reconnected (Repair Instruction - Initialization).
- After the ignition switch is turned OFF, the navigation system requires approximately 90 seconds to record various types of memory and settings. As a result, after turning the ignition switch OFF, wait 90 seconds or more before disconnecting the cable from the negative (-) battery terminal.

2. REMOVE V-BANK COVER (Removal)

3. REMOVE AIR CLEANER HOSE ASSEMBLY (Removal)

4. REMOVE AIR CLEANER ASSEMBLY (Removal)

5. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY (Replacement)

6. REMOVE FAN AND GENERATOR V BELT (Removal)

7. REMOVE FRONT FENDER APRON SEAL RH
(a) Remove the 5 clips and apron seal.
8. DISCONNECT VANE PUMP ASSEMBLY (Removal)

9. REMOVE GENERATOR ASSEMBLY

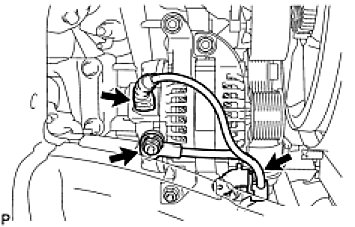

(a) Disconnect the generator connector.
(b) Remove the terminal cap and nut, and disconnect the generator wire.
(c) Remove the bolt and disconnect the wire harness bracket from the generator.

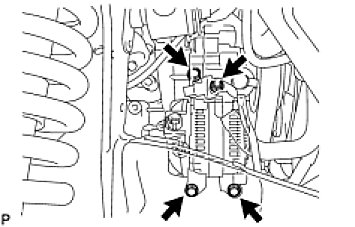

(d) Remove the 3 bolts, nut and generator.
