Installation

AIR CONDITIONING: BLOWER UNIT: INSTALLATION

INSTALLATION

1. INSTALL BLOWER ASSEMBLY

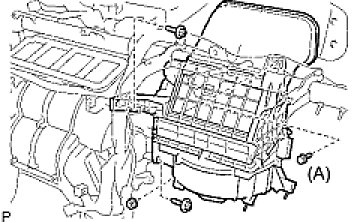

(a) Install the blower assembly.
(b) Install the bolt, the 2 screws and the nut.
Bolt A - Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)

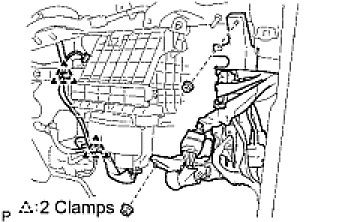

(c) Install the 2 clamps and 2 nuts and wire harness.
2. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY WITH PASSENGER AIRBAG ASSEMBLY Installation.
