2UZ-FE ENGINE MECHANICAL: ENGINE UNIT: REMOVAL

REMOVAL

1. REMOVE NO. 2 AIR TUBE HOSE Removal

2. REMOVE AIR SWITCHING VALVE ASSEMBLY (for Bank 1) Removal

3. REMOVE AIR SWITCHING VALVE ASSEMBLY (for Bank 2) Removal

4. REMOVE IGNITION COIL ASSEMBLY Removal

5. REMOVE NO. 3 WATER BY-PASS PIPE Removal

6. REMOVE INTAKE MANIFOLD Removal

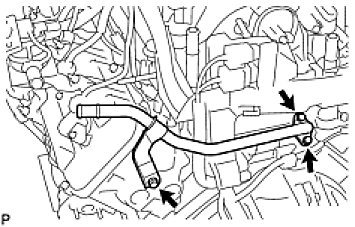

7. REMOVE NO. 3 AIR TUBE HOSE






(a) Remove the 3 bolts, No. 3 air tube hose and gasket.
8. REMOVE WATER BY-PASS PIPE SUB-ASSEMBLY Removal

9. REMOVE NO. 4 AIR INJECTION SYSTEM HOSE Removal

10. REMOVE AIR PUMP ASSEMBLY Removal

11. REMOVE STARTER ASSEMBLY Removal

12. REMOVE INLET WATER HOUSING Removal

13. REMOVE FRONT WATER BY-PASS JOINT Removal

14. REMOVE REAR WATER BY-PASS JOINT Removal

15. REMOVE OIL COOLER PIPE Removal

16. REMOVE NO. 2 WIRING HARNESS HEAT INSULATOR






(a) Remove the 2 bolts and heat insulator.
17. REMOVE FRONT ENGINE MOUNTING INSULATOR RH






(a) Remove the nut and mounting insulator.
18. REMOVE FRONT ENGINE MOUNTING INSULATOR LH






(a) Remove the nut and mounting insulator.
19. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET RH






(a) Remove the 4 bolts and mounting bracket.
20. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET LH






(a) Remove the 4 bolts and mounting bracket.
21. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY RH (for Bank 2) Removal

22. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY LH (for Bank 1) Removal

23. REMOVE VVT SENSOR Removal

24. REMOVE KNOCK CONTROL SENSOR Removal

25. REMOVE CRANKSHAFT POSITION SENSOR Removal

26. REMOVE VENTILATION VALVE SUB-ASSEMBLY Removal
